Extra Modules

Cloud PBX

The Sipwise C5 comes with a commercial Cloud PBX module to provide B2B features for small and medium sized enterprises. The following chapters describe the configuration of the PBX features.

PBX Device Provisioning

How it works

A device gets provisioned with the following steps:

Your customer creates a PBX device for a supported model and inputs a device’s MAC address.
Sipwise C5 sends the provided MAC address to the device vendor (e.g. rps.yealink.com).
When the corresponding device is connected to the network, the device fetches the provisioning URL from the vendor site.
The device downloads its specific configuration and the firmware from Sipwise C5.
The phone updates the firmware and automatically sets the SIP proxy server, username and password and other SIP parameters received from Sipwise C5.

PBX device provisioning requires appropriate device models, firmwares, configurations and profiles to be added to the system.

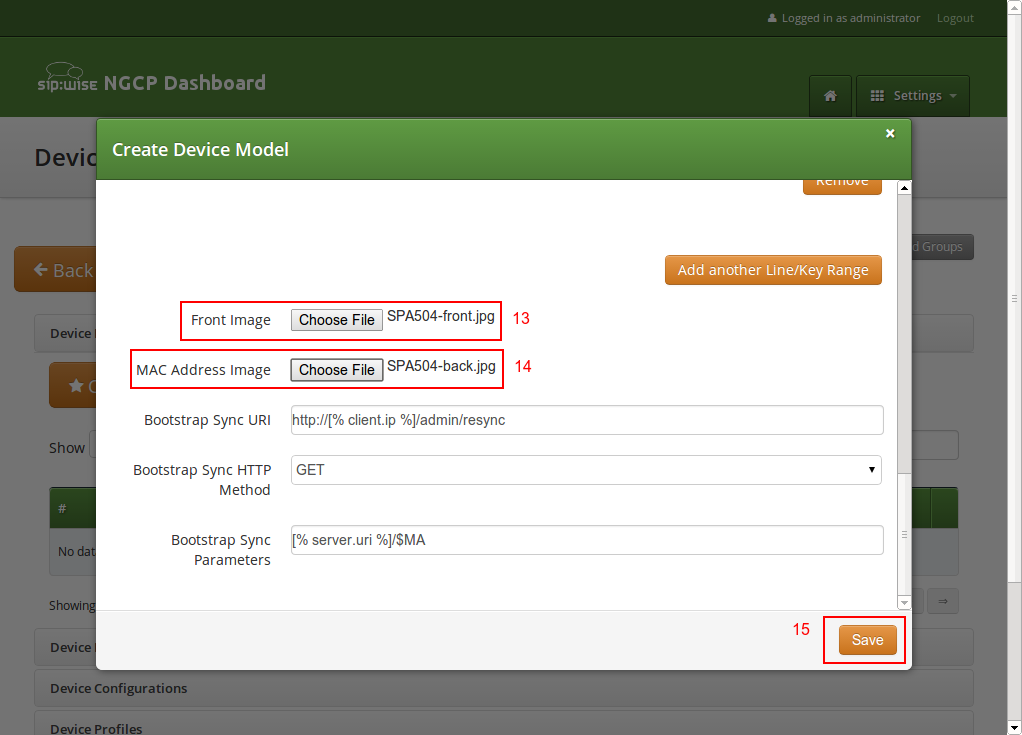

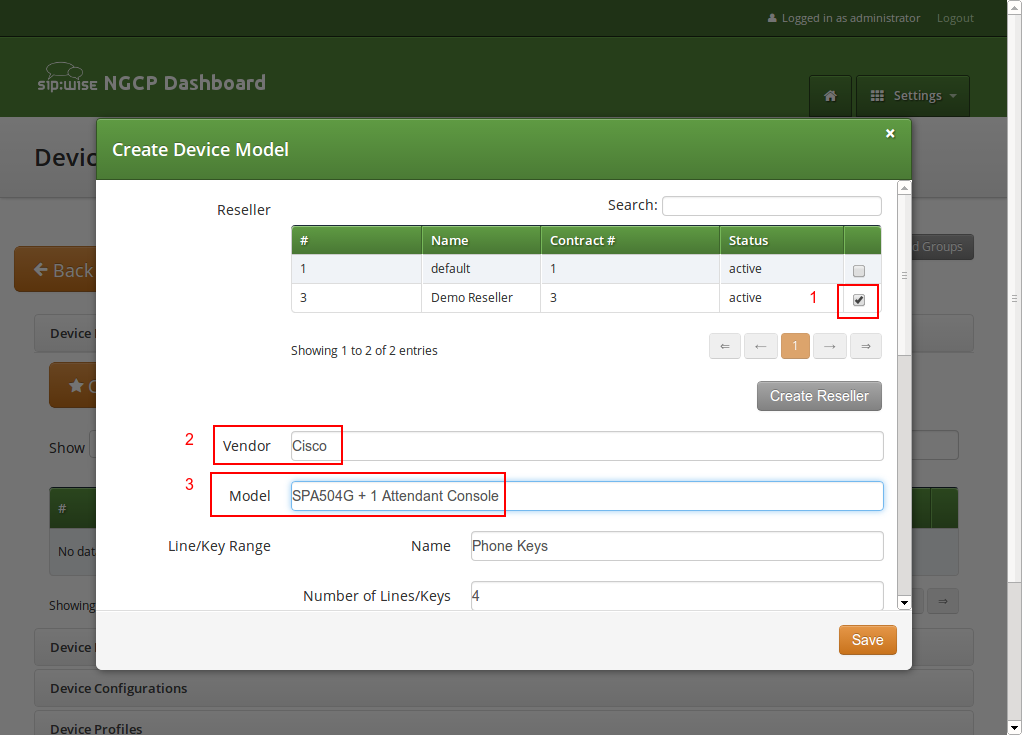

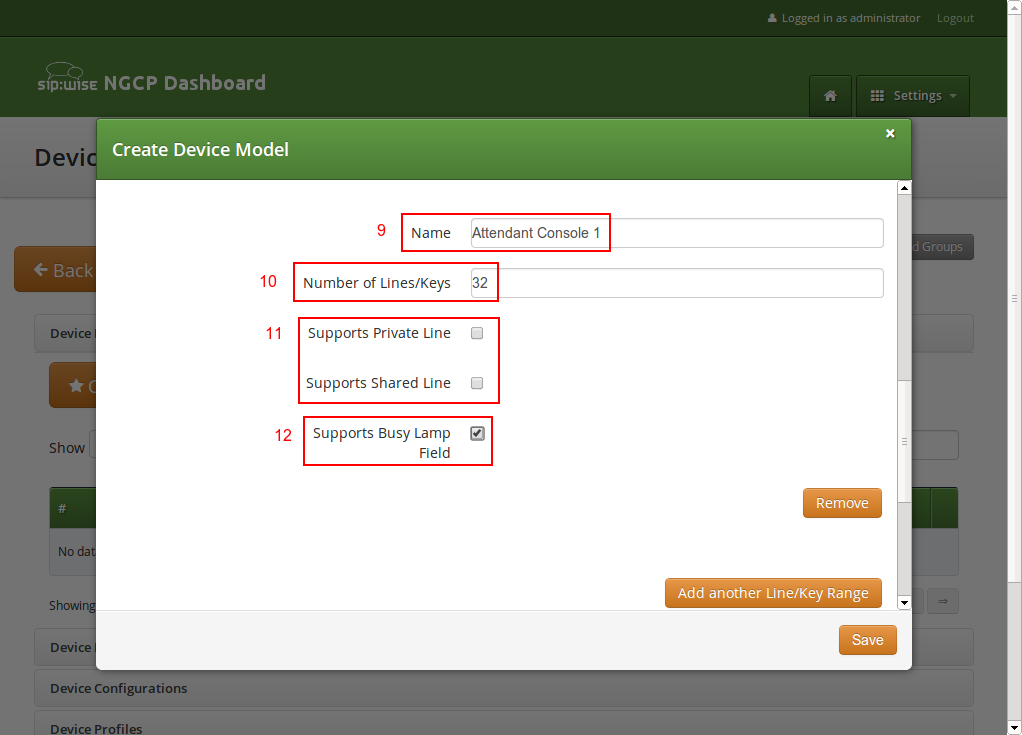

A device model defines a specific hardware device, like the vendor, the model name, the number of keys and their capabilities. For example, a Cisco SPA504G has 4 keys, which can be used for private lines, shared lines (SLA) and busy lamp field (BLF). If you have an additional attendant console, you get 32 more buttons, which can only do BLF. The list of supported devices can be found in ngcp_additional_modules:cloud-pbx-main.adoc#available_devices.

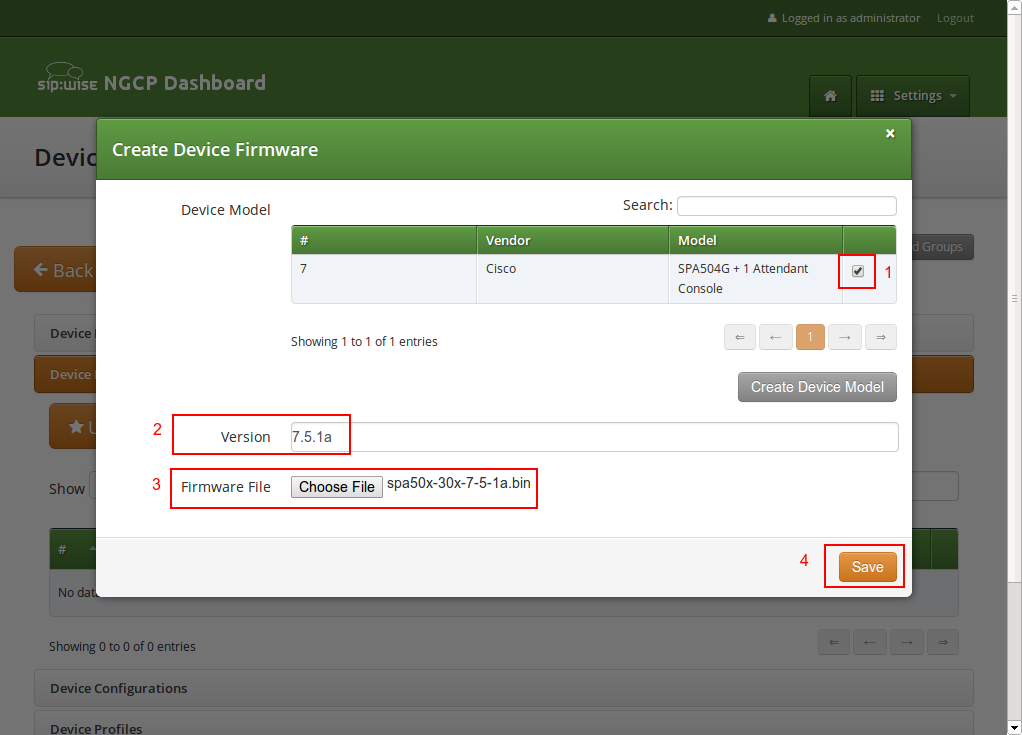

A device firmware is used to update a potentially outdated factory firmware on a device. The default firmwares included in Sipwise C5 were tested with the provided device configurations and hence guarantee that all the supported features work as expected. That is why we recommend using the default firmwares and device configurations provided by Sipwise.

To make device provisioning easy-to-use for end-users, they do not have to care about firmwares or configurations mentioned above. Instead, you provide a device profile for every supported device model and associate such a device profile with a specific device configuration and firmware. When a customer employee with administrative rights provisions PBX devices for the company, they select the corresponding device profiles and specifies MAC addresses if necessary. Sipwise C5 will take care of the rest.

Sipwise C5 is supplied with a set of supported device models, their firmwares, configurations and profile. You can enable them and your customers will be able to use PBX device provisioning immediately.

To perform basic configuration and upload the set for a specific vendor, device model(s) or for all supported devices, execute the steps described in the following section.

Initial device provisioning configuration

Execute the following initial steps before your customers can easily and securely provision their PBX devices:

Set the certificates and the keys for your HTTPs FQDN
Upload the required device models/firmwares/configurations/profiles

Set the certificates and the key for your web domain

You can create new ones or use the existing certificate and the key for your web FQDN.

Put the required files into the /etc/ngcp-config/ssl folder.
Specify the paths to the files and the FQDN in the following config.yml parameters:
- server_certfile
- server_keyfile
- Specify the FQDN in autoprov.server.host
- Optionally, enable nginx_debug

The final configuration should look similar to this one:

autoprov:
  hardphone:
    skip_vendor_redirect: no
  server:
    bootstrap_port: '1445'
    ca_certfile: /etc/ngcp-config/ssl/client-auth-ca.crt
    host: portal.yourdomain.com
    nginx_debug: yes
    port: '1444'
    server_certfile: /etc/ngcp-config/ssl/certificate.pem
    server_keyfile: /etc/ngcp-config/ssl/private_key.pem
    ssl_enabled: yes
  softphone:
    config_lockdown: '0'
    webauth: '0'

Apply and push the changes

ngcpcfg apply 'PBX device provisioning configuration'
ngcpcfg push all

Upload the required device items

To upload device models/firmwares/configurations/profiles for devices with ZTP support, you need to obtain credentials from the corresponding vendor or its local distributor in advance. These credentials are required to send information about your devices and their provisioning URLs to the corresponding ZTP/RPS systems.

The script ngcp-insert-pbx-devices will insert the specified items into the database. For example, to upload items for all supported Yealink devices for the default reseller, execute the script with the following parameters on your management node (standby on PRO; web01a/db01a on CARRIER):

/usr/sbin/ngcp-insert-pbx-devices --api-user youruser --api-pass yourpassword --yealink-user user --yealink-password password

Execute ngcp-insert-pbx-devices --help to find other useful parameters, e.g. --device-models, --resellers and others.

Preparing PBX Rewrite Rules

In a PBX environment, the dial-plans usually looks different than for normal SIP subscribers. PBX subscribers should be able to directly dial internal extensions (e.g. 100) instead of the full number to reach another PBX subscriber in the same PBX segment. Therefore, we need to define specific Rewrite Rules to make this work.

The PBX dial plans are different from country to country. In the Central European area, you can directly dial an extension (e.g. 100), and if you want to dial an international number like 0049 1 23456, you have to dial a break-out digit first (e.g. 0), so the number to be dialed is 0 0049 1 23456. Other countries are used to other break-out codes (e.g. 9), which then results in 9 0049 1 23456. If you dial a national number like 01 23456, then the number to actually be dialled is 9 01 23456.

Since all numbers must be normalized to E.164 format via inbound rewrite rules, the rules need to be set up accordingly.

As with normal SIP accounts, you can use variables like ${caller_cc} and ${caller_ac}. For PBX subscribers, there is an additional variable ${caller_cloud_pbx_base_cli}, which is the primary number of the administrative subscriber for a PBX customer. When you create this pilot subscriber, you can specify the primary number and a list of alias numbers. If the customer creates his own extensions by himself, he only has to provide the extension number, which will be appended to the primary number of the pilot subscriber, and which in turn forms the primary number of the extension subscriber. So if the pilot subscriber’s primary number is 49 1 23456, and he creates a new extension subscriber with extension 100, the primary number of the extension will be 49 1 23456100. If another extension of this customer dials 100, you can prefix that with ${caller_cloud_pbx_base_cli}, so the 100 gets normalized to 49 1 23456100 and the correct extension subscriber can be matched. You will learn more about number assignment for PBX subscribers in the following sections, when the creation of them is shown.

Let’s assume that the break-out code for the example customers created below is 0, so we have to create a Rewrite Rule Set with the following rules.

Inbound Rewrite Rules for Caller

PBX devices usually send their SIP URI (e.g. myuser@mydomain.org) as initiating CLI, so nothing special is to be done here. If you have PBX devices which only send their extension number (e.g. 100) as CLI, you need to prefix that with the ${caller_cloud_pbx_base_cli} variable, like this:

Match Pattern: ^([1-9][0-9]+)$
Replacement Pattern: ${caller_cloud_pbx_base_cli}\1
Description: extension to e164
Direction: Inbound
Field: Caller

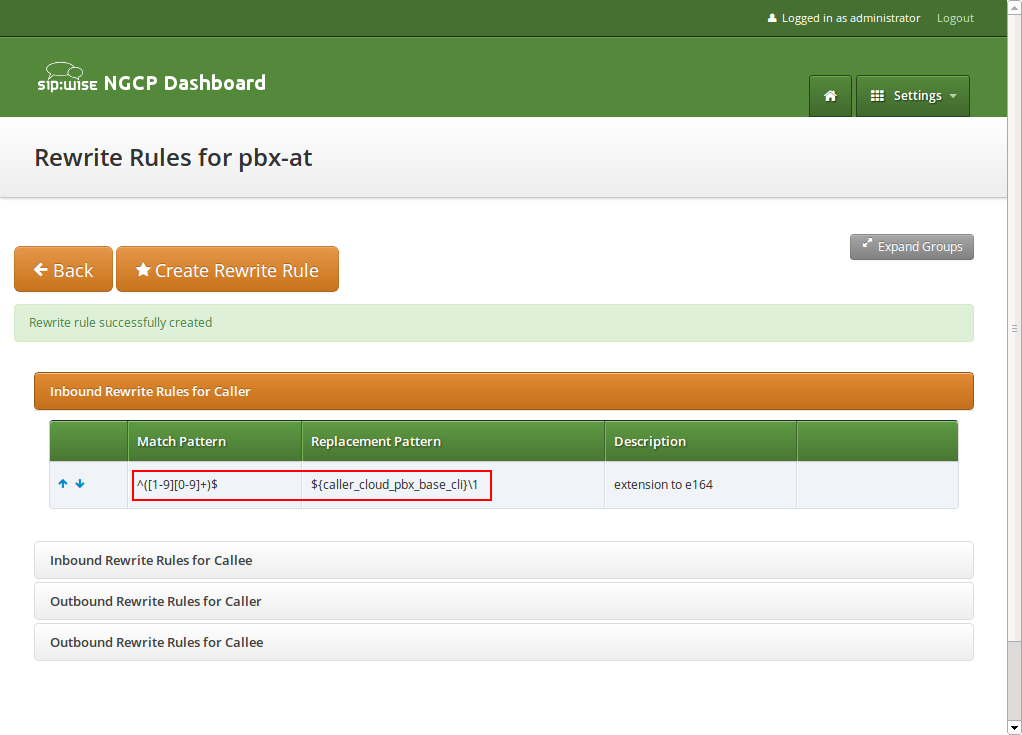

Figure 1. Inbound Rewrite Rule for Caller

Inbound Rewrite Rules for Callee

These rules are the most important ones, as they define which number formats the PBX subscribers can dial. For the break-out code of 0, the following rules are necessary e.g. for German dialplans to allow pbx internal extension dialing, local area calls without area codes, national calls with area code, and international calls with country codes.

PBX internal extension dialin

Match Pattern: ^([1-9][0-9]+)$
Replacement Pattern: ${caller_cloud_pbx_base_cli}\1
Description: extension to e164
Direction: Inbound
Field: Callee

Local dialing without area code (use break-out code 0)

Match Pattern: ^0([1-9][0-9]+)$
Replacement Pattern: ${caller_cc}${caller_ac}\1
Description: local to e164
Direction: Inbound
Field: Callee

National dialing (use break-out code 0 and prefix area code by 0)

Match Pattern: ^00([1-9][0-9]+)$
Replacement Pattern: ${caller_cc}\1
Description: national to e164
Direction: Inbound
Field: Callee

International dialing (use break-out code 0 and prefix country code by 00)

Match Pattern: ^000([1-9][0-9]+)$
Replacement Pattern: \1
Description: international to e164
Direction: Inbound
Field: Callee

Figure 2. Inbound Rewrite Rule for Callee

Outbound Rewrite Rules for Caller

When a call goes to a PBX subscriber, it needs to be normalized in a way that it’s call-back-able, which means that it needs to have the break-out code prefixed. We create a rule to show the calling number in international format including the break-out code. For PBX-internal calls, the most common setting is to show the short extension of the caller and caller name that is provisioned to a PBX subscriber (in order to do that set domain preferences outbound_from_display and outbound_from_user accordingly, so you don’t have to worry about that in rewrite rules).

Adding a break-out code (use break-out code 0 and prefix country code by 00)

Match Pattern: ^([1-9][0-9]+)$
Replacement Pattern: 000\1
Description: e164 to full international
Direction: Outbound
Field: Caller

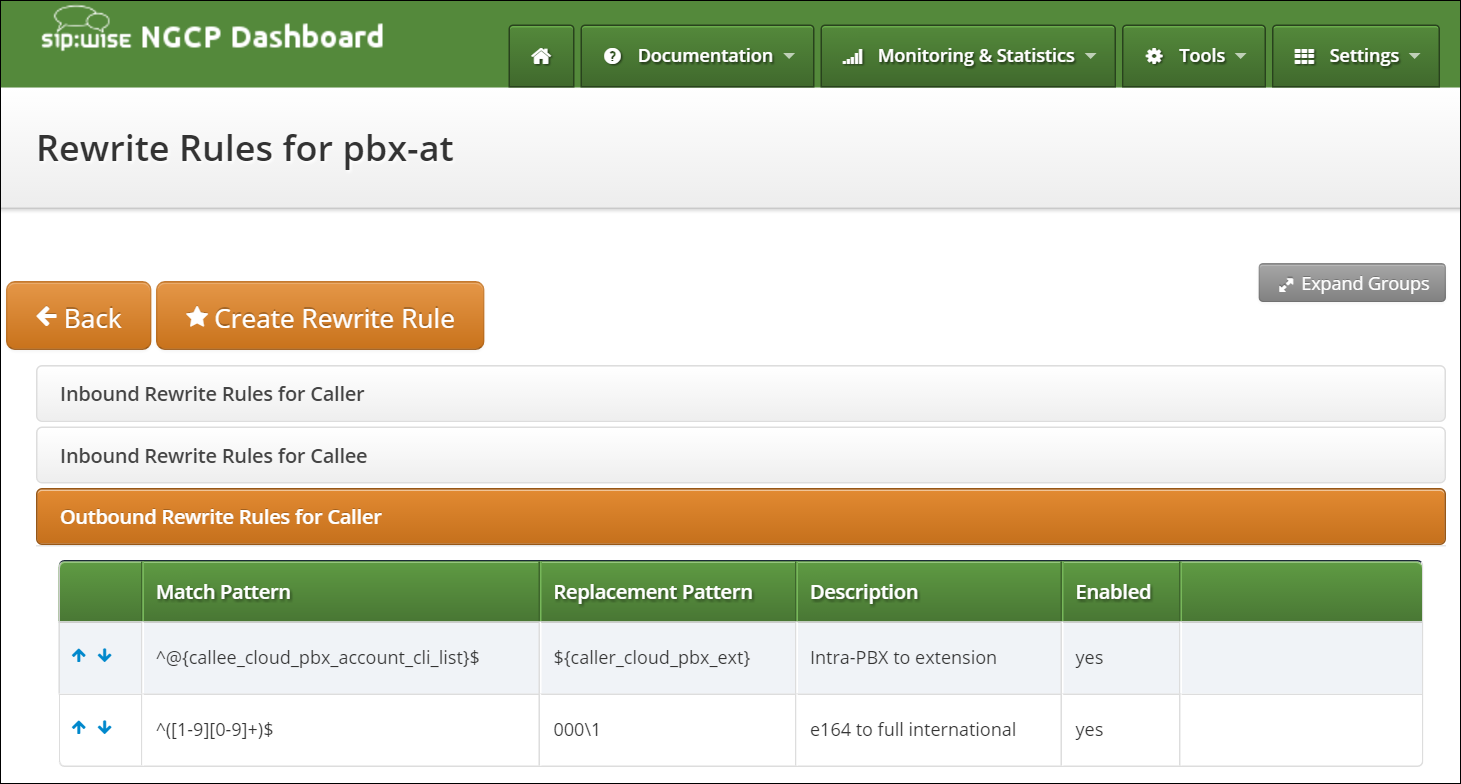

Figure 3. Outbound Rewrite Rule for Caller

Create a new Rewrite Rule Set for each dial plan you’d like to support. You can later assign it to customer domains and even to subscribers, if a specific subscriber of a PBX customer would like to have his own dial plan.

Creating Customers and Pilot Subscribers

As with a normal SIP Account, you have to create a Customer contract per customer, and one Subscriber, which the customer can use to log into the web interface and manage his PBX environment.

Creating a PBX Customer

Go to Settings→Customers and click Create Customer. We need a Contact for the customer, so press Create Contact.

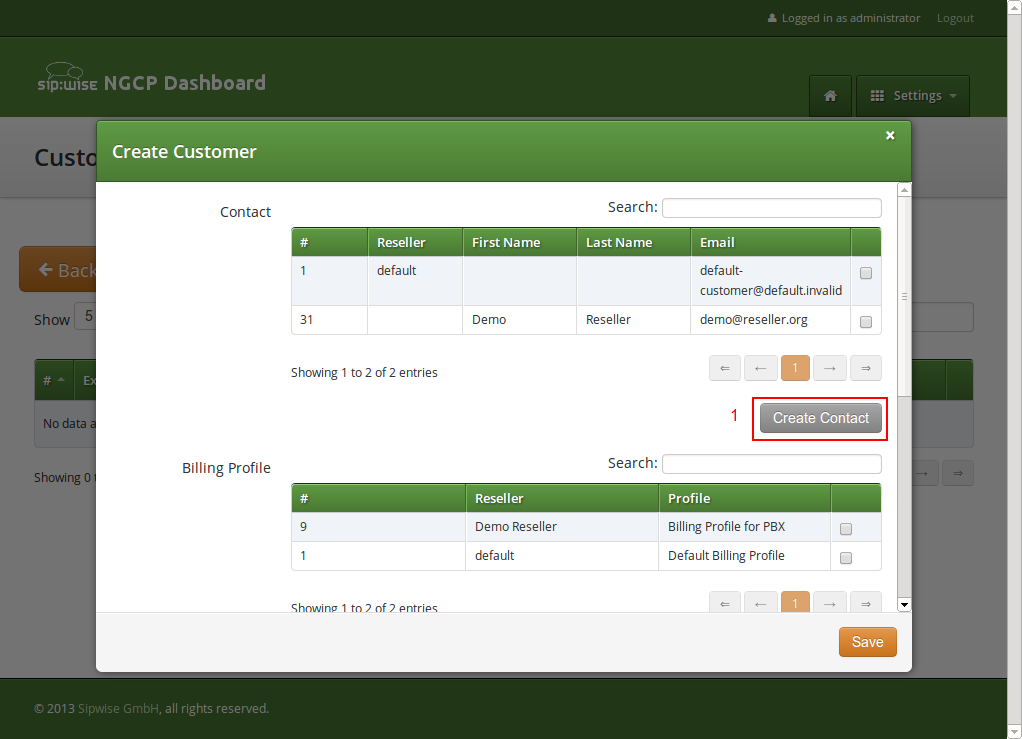

Figure 4. Create PBX Customer Part 1

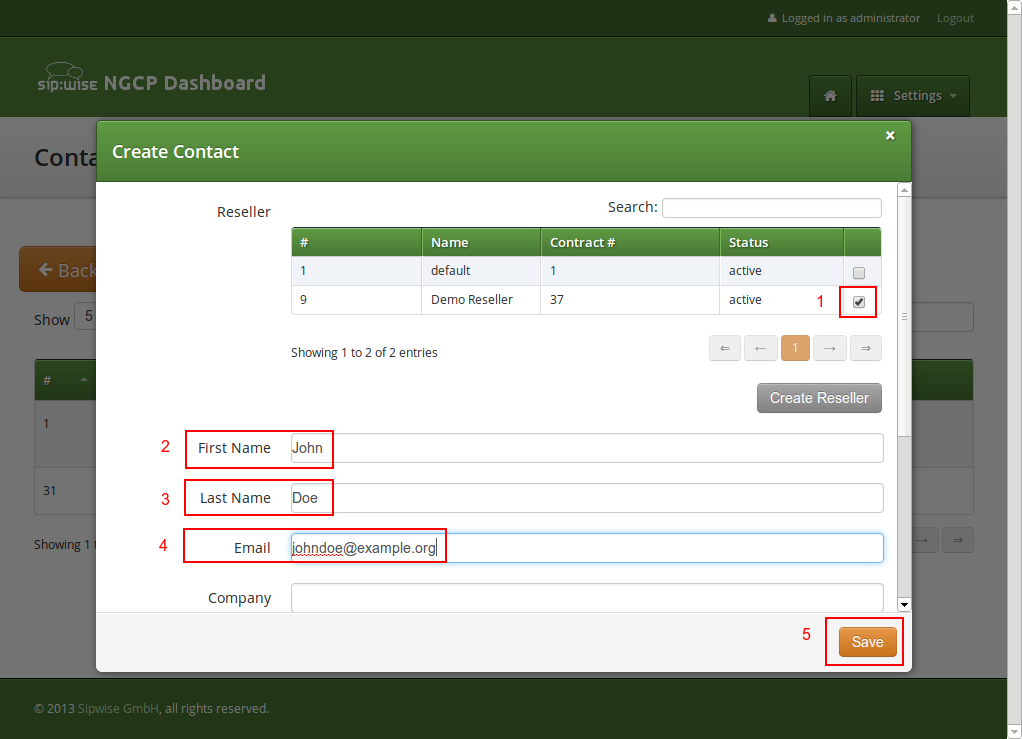

Fill in the desired fields (you need to provide at least the Email Address) and press Save.

Figure 5. Create PBX Customer Contact

The new Contact will be automatically selected now. Also select a Billing Profile you want to use for this customer. If you don’t have one defined yet, press Create Billing Profile, otherwise select the one you want to use.

Figure 6. Create PBX Customer Part 2

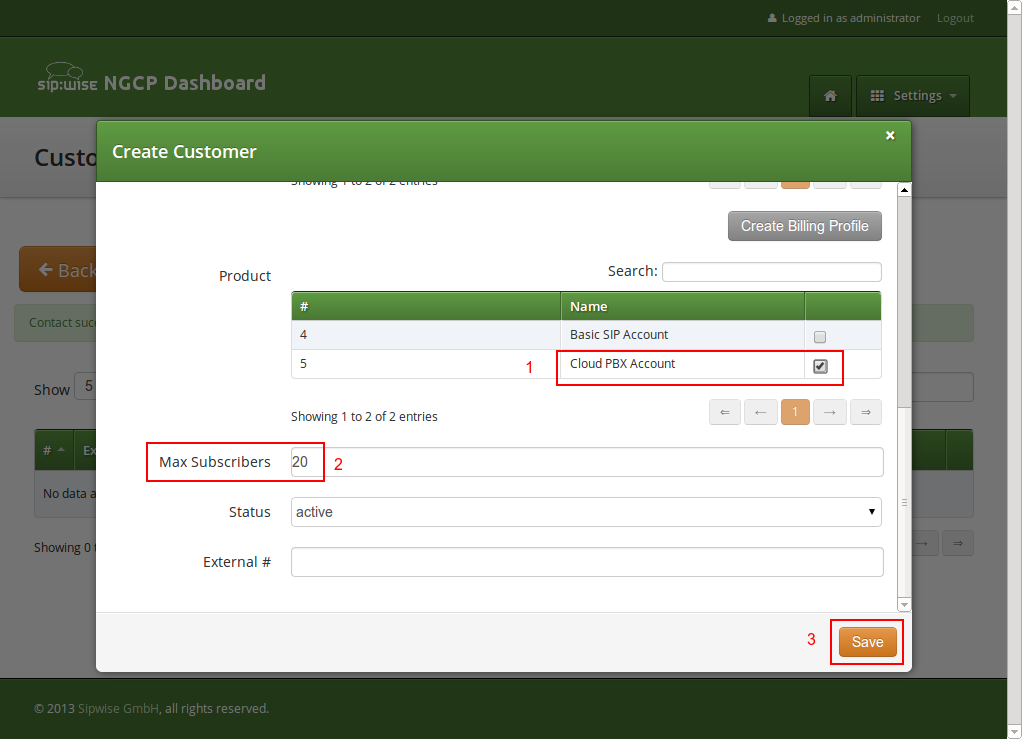

Next, you need to select the Product for the PBX customer. Since it’s going to be a PBX customer, select the product Cloud PBX Account.

Since PBX customers are supposed to manage their subscribers by themselves, they are able to create them via the web interface. To set an upper limit of subscribers a customer can create, define the value in the Max Subscribers field.

As you will see later, both PBX subscribers and PBX groups are normal subscribers, so the value defined here limits the overall amount of subscribers and groups. A customer can create an unlimited amount of subscribers if you leave this field empty.

Press Save to create the customer.

Figure 7. Create PBX Customer Part 3

Creating a PBX Pilot Subscriber

Once the customer is created, you need to create at least one Subscriber for the customer, so he can log into the web interface and manage the rest by himself.

Click the Details button on the newly created customer to enter the detailed view.

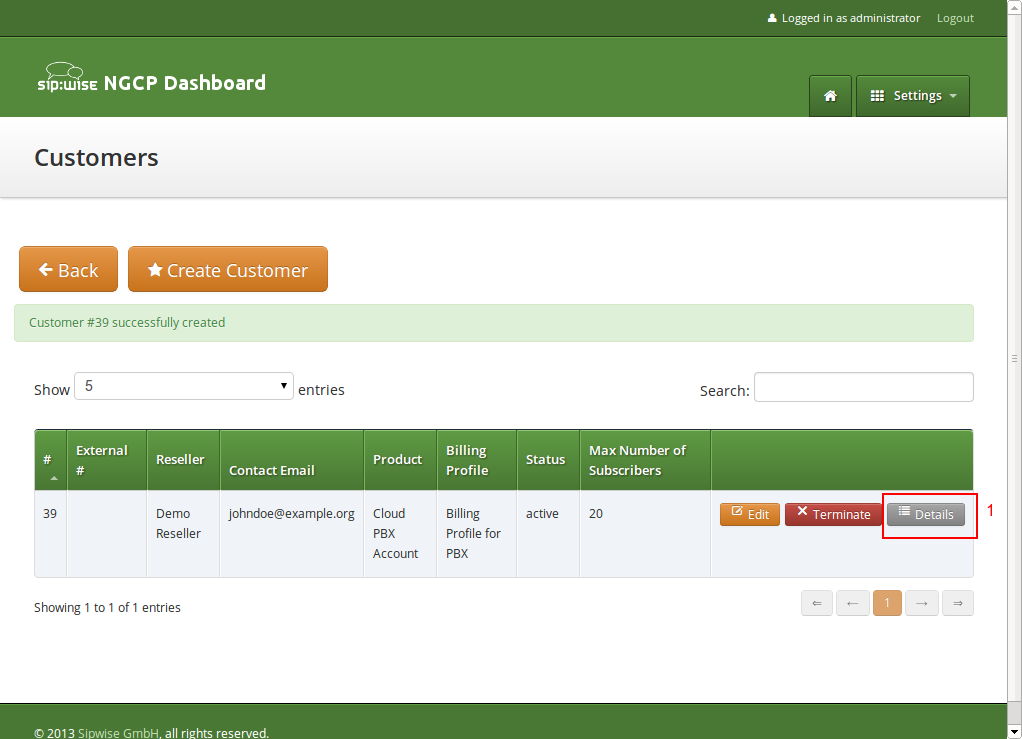

Figure 8. Go to Customer Details

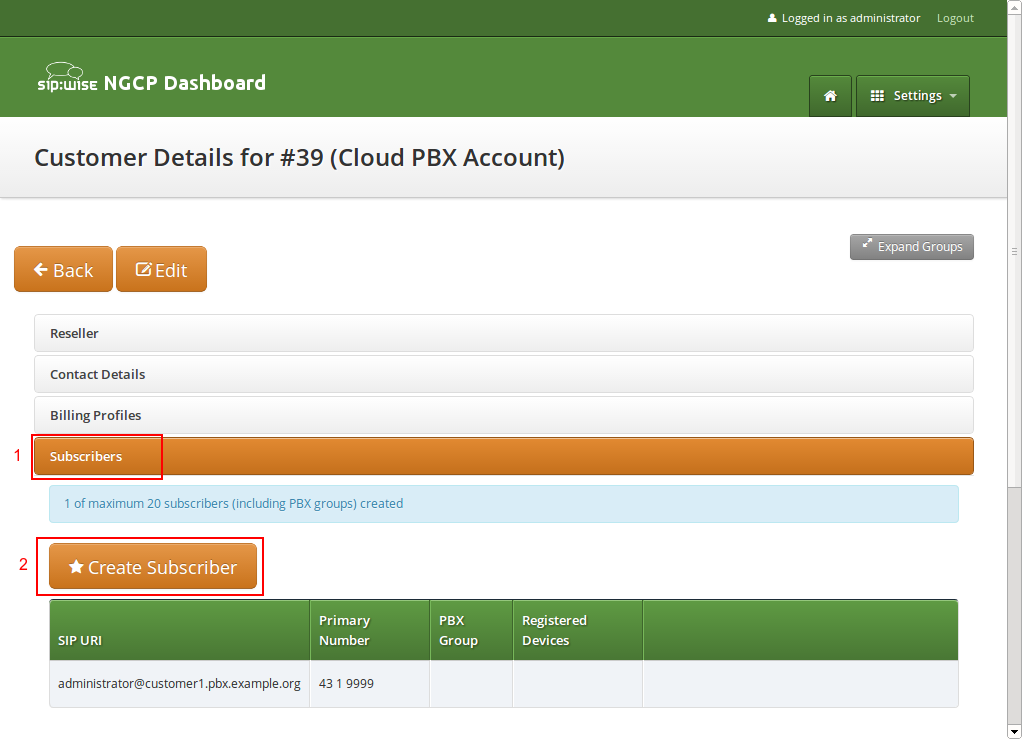

To create the subscriber, open the Subscribers row and click Create Subscriber.

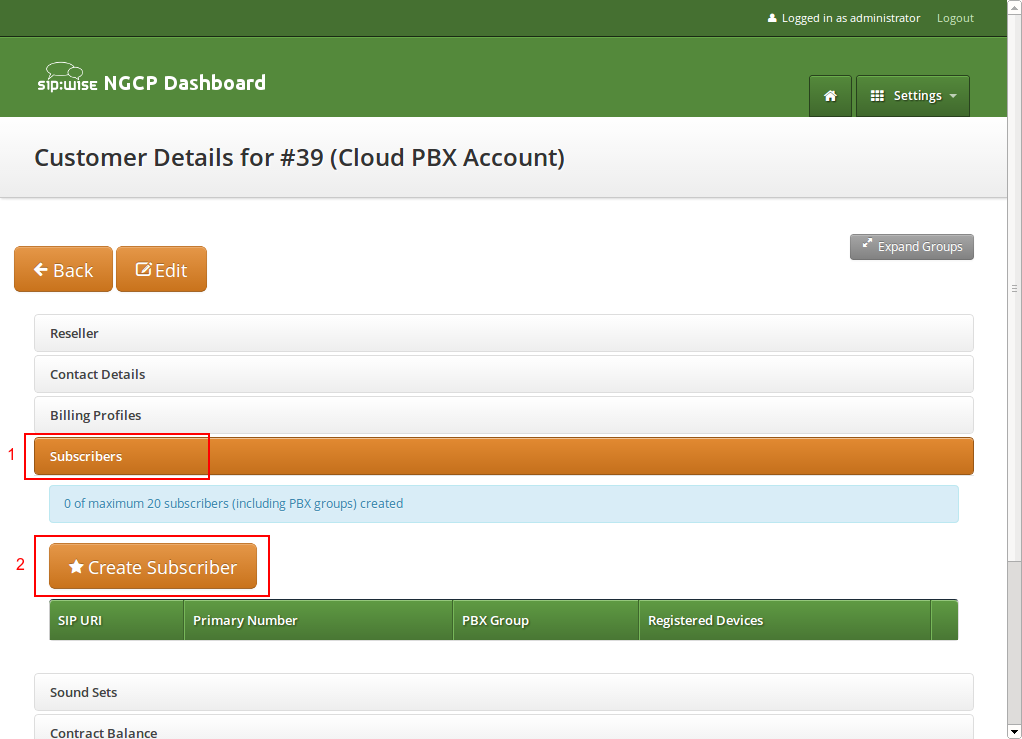

Figure 9. Go to Create Subscriber

For your pilot subscriber, you need a SIP domain, a pilot number (the main number of the customer PBX), the web credentials for the customer to log into the web interfaces, and the SIP credentials to authenticate via a SIP device.

In a PBX environment, customers can create their own subscribers. As a consequence, each PBX customer should have its own SIP domain, in order to not collide with subscribers created by other customers. This is important because two customers are highly likely to create a subscriber (or group, which is also only a subscriber) called office. If they are in the same SIP domain, they’d both have the SIP URI office@pbx.example.org, which is not allowed, and the an end customer will probably not understand why office@pbx.example.org is already taken, because he (for obvious reasons, as it belongs to a different customer) will not see this subscriber in his subscribers list.

To handle one domain per customer, you should create a wild-card entry into your DNS server like \*.pbx.example.org, which points to the IP address of pbx.example.org, so you can define SIP domains like customer1.pbx.example.org or customer2.pbx.example.org without having to create a new DNS entry for each of them. For proper secure access to the web interface and to the SIP and XMPP services, you should also obtain a SSL wild-card certificate for *.pbx.example.org to avoid certification warnings on customers' web browsers and SIP/XMPP clients.

So to create a new domain for the customer, click Create Domain.

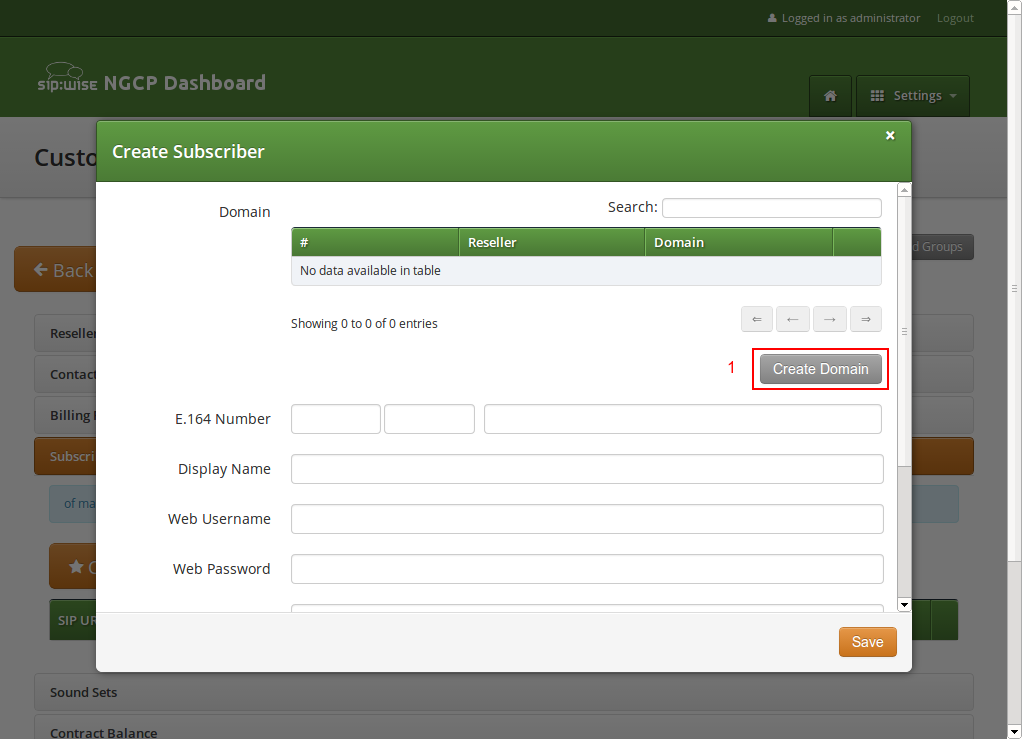

Figure 10. Go to Create Customer Domain

Specify the domain you want to create, and select the PBX Rewrite Rule Set which you created in ngcp_additional_modules:cloud-pbx-main.adoc#pbx-rewrite-rules, then click Save.

Figure 11. Create Customer Domain

Finish the subscriber creation by providing an E.164 number, which is going to be the base number for all other subscribers within this customer, the web username and password for the pilot subscriber to log into the web interface, and the sip username and password for a SIP device to connect to the PBX.

The parameters are as follows:

Domain: The domain in which to create the pilot subscriber. Each customer should get his own domain as described above to not collide with SIP usernames between customers.
E.164 Number: The primary number of the PBX. Calls to this number are routed to the pilot subscriber, and each subsequent subscriber created for this customer will use this number as its base number, suffixed by an individual extension. You can later assign alias numbers also for DID support.
Display Name: This field is used on phones to identify subscribers by their real names instead of their number or extension. On outbound calls, the display name is signalled in the Display-Field of the From header, and it’s used as a name in the XMPP contact lists.
Web Username: The username for the subscriber to log into the customer self-care web interface. This is optional, if you don’t want a subscriber to have access to the web interface.
Web Password: The password for the subscriber to log into the customer self-care web interface.
SIP Username: The username for the subscriber to authenticate on the SIP and XMPP service. It is automatically used for devices, which are auto-provisioned via the Device Management, or can be used manually by subscribers to sign into the SIP and XMPP service with any arbitrary clients.
SIP Password: The password for the subscriber to authenticate on the SIP and XMPP service.

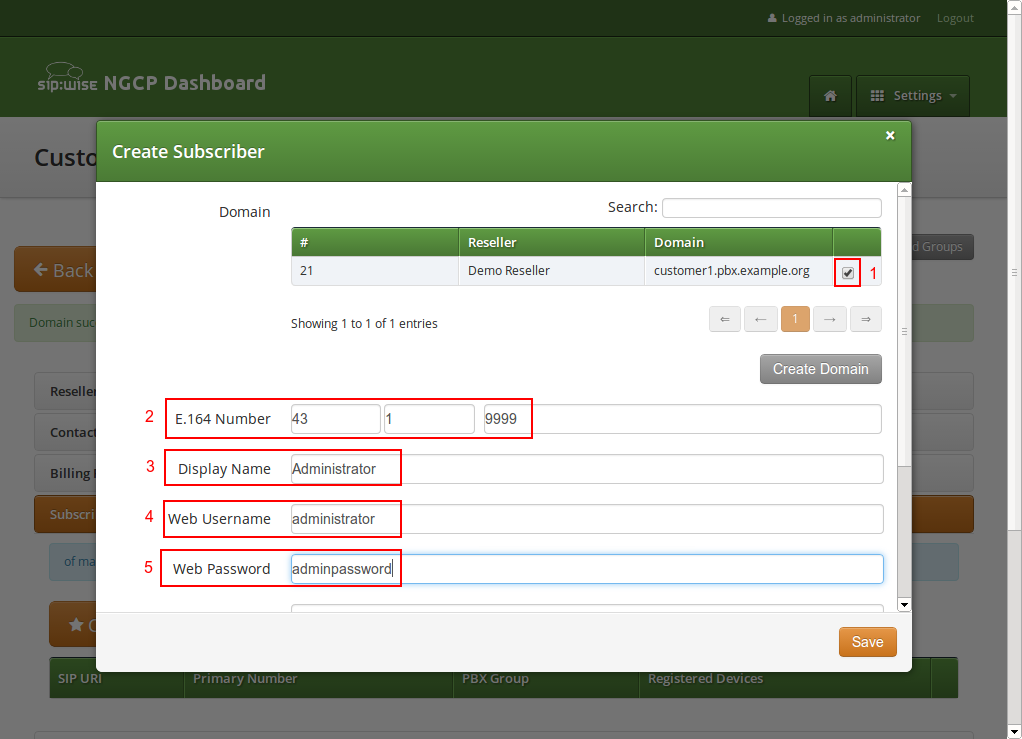

Figure 12. Create Pilot Subscriber Part 1

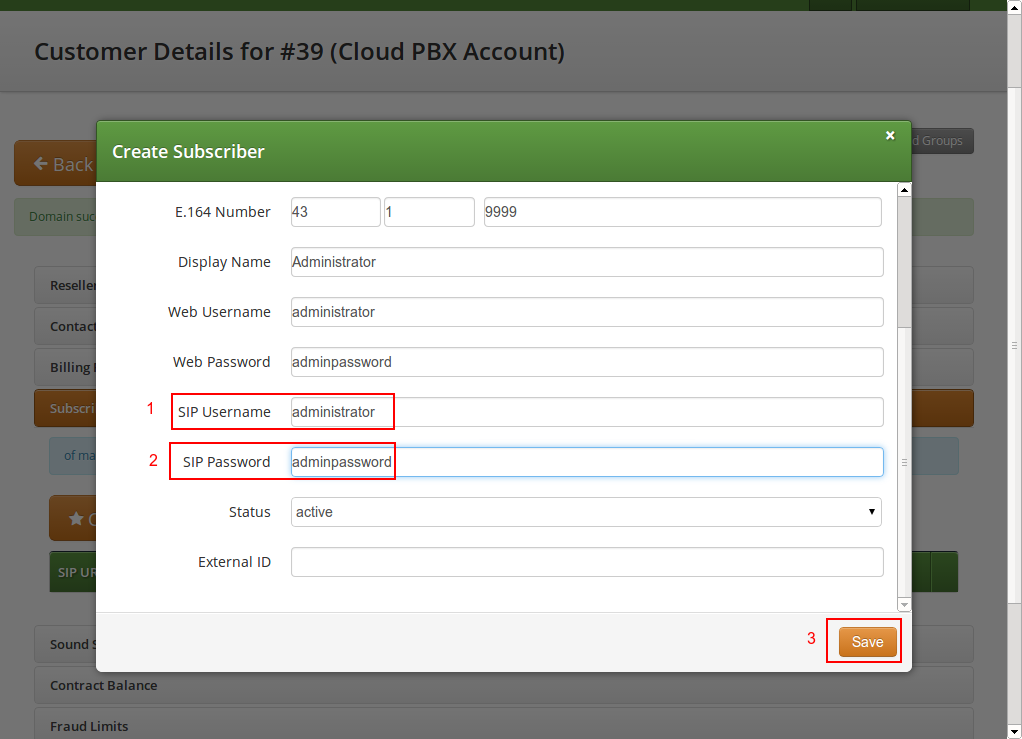

Figure 13. Create Pilot Subscriber Part 2

Once the subscriber is created, he can log into the customer self-care interface at https://<your-ip>/login/subscriber and manage his PBX, like creating other users and groups, assigning Devices to subscribers and configure the Auto Attendant and more.

As an administrator, you can also do this for the customer, and we will walk through the typical steps as an administrator to configure the different features.

Go to the Customer Details of the PBX customer you want to configure, e.g. by navigating to Settings→Customers and clicking the Details button of the customer you want to configure.

Creating Regular PBX Subscribers

Since we already created a pilot subscriber, more settings now appear on the Customer Details view. The sections we are interested in for now are the Subscribers and PBX Groups sections.

Figure 14. Subscribers and PBX Groups

To create another subscriber for the customer PBX, open the Subscribers row and click Create Subscriber.

Figure 15. Create a Subscriber Extension

When creating another subscriber in the PBX after having the pilot subscriber, some fields are different now, because the Domain and E.164 Number are already pre-defined at the pilot subscriber level.

What you need to define for a new subscriber is the Group the subscriber is supposed to be in. We don’t have a group yet, so create one by clicking Create Group.

A PBX Group has four settings:

Name: The name of the group. This is used to identify a group when assigning it to subscribers on one hand, and also subscribers are pushed as server side contact lists to XMPP clients, where they are logically placed into their corresponding groups.
Extension: The extension of the group, which is appended to the primary number of the pilot subscriber, so you can actually call the group from the outside. If our pilot subscriber number is 43 1 9999 and the extension is 100, you can reach the group from the outside by dialing 43 1 9999 100. Since PBX Groups are actually normal subscribers in the system, you can assign Alias Numbers to it for DID later, e.g. 43 1 9998.
Hunting Policy: If you call a group, then all members in this group are ringing based on the policy you choose. Serial Ringing causes each of the subscribers to be tried one after another, until one of them picks up or all subscribers are tried. Parallel Ringing causes all subscribers in the group to be tried in parallel. Note that a subscriber can have a call-forward configured to some external number (e.g. his mobile phone), which will work as well.
Serial Hunting Timeout: This value defines for how long to ring each member of a group in case of serial hunting until the next subscriber is being tried.

We will only fill in the Name and Extension for now, as the hunting policy can be changed later if needed. Click Save to create the group.

Figure 16. Create a PBX Group

Once the group is created and selected, fill out the rest of the form as needed. Instead of the E.164 Number, you can now only choose the Extension, which is appended to the primary number of the pilot subscriber and is then used as primary number for this particular subscribers. Again, if your pilot number is 43 1 9999 and you choose extension 101 here, the number of this subscriber is going to be 43 1 9999 101. Also, you can again later assign more alias numbers (e.g. 43 1 9997) to this subscriber for DID.

The rest of the fields is as usual, with Display Name defining the real name of the user, Web Username and Web Password allowing the subscriber to log into the customer self-care interface, and the SIP Username and SIP Password to allow signing into the SIP and XMPP services.

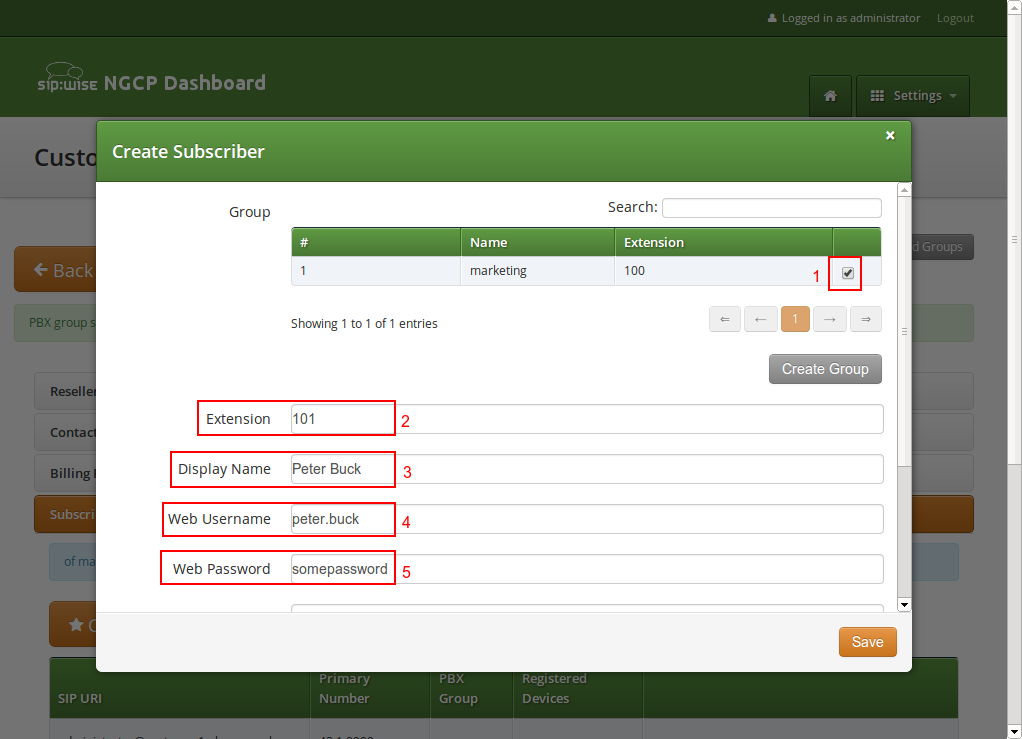

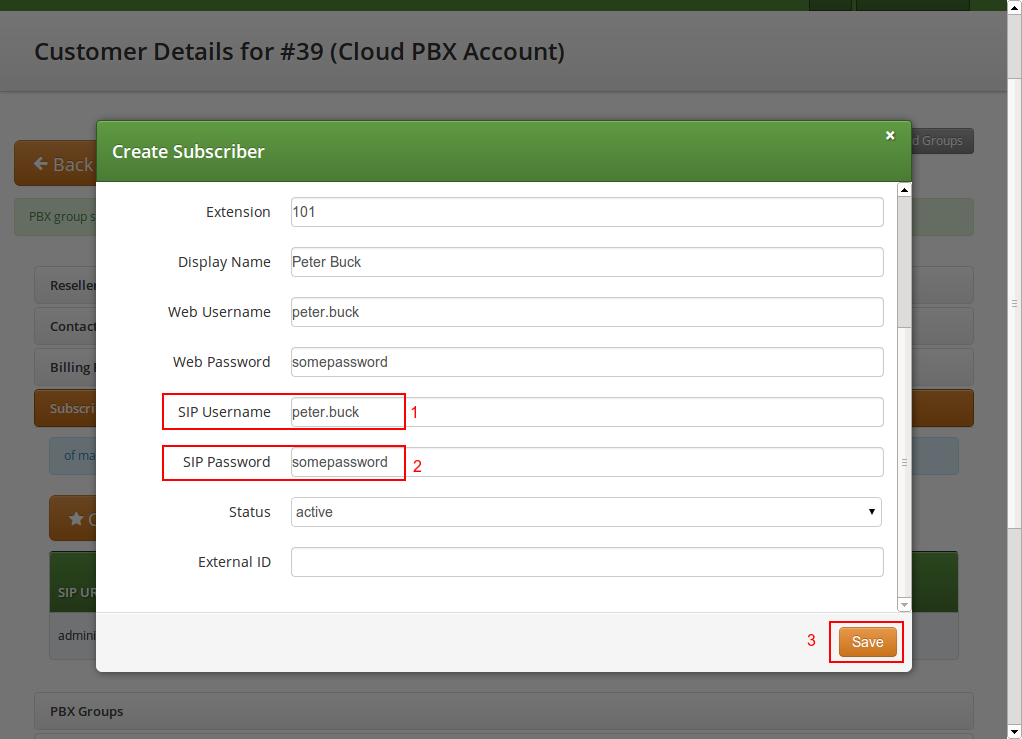

Figure 17. Finish PBX Subscriber Creation Part 1

Click Save to create the subscriber.

Figure 18. Finish PBX Subscriber Creation Part 2

Repeat the steps to create all the subscribers and groups as needed. An example of a small company configuration in terms of subscribers and groups might look like this:

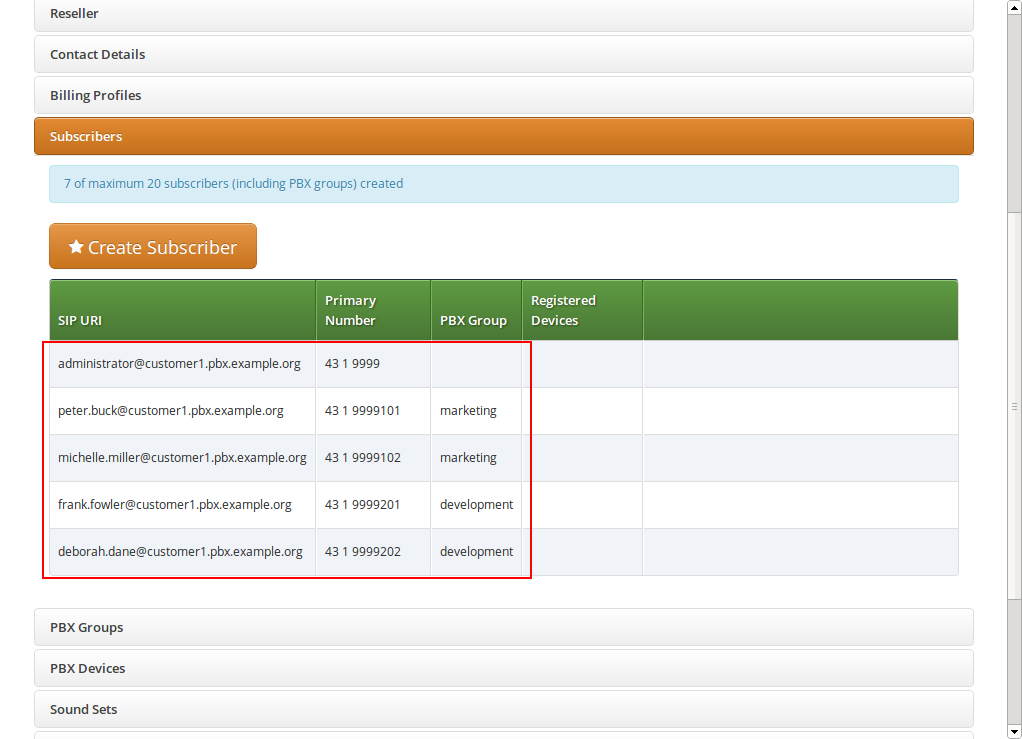

Figure 19. Example of Subscribers List

The subscribers can be reached via 3 different ways. First, you can call them by their SIP URIs (e.g. by dialing frank.fowler@customer1.pbx.example.org) from both inside and outside the PBX. Second, you can dial by the full number (e.g. 43 1 9999 201; depending on your rewrite rules, you might need to add a leading \+ or 00 or leave out the country code when dialing from the outside, and adding a 0 as break-out digit when dialing from the inside) from both inside and outside the PBX. Third, you can dial the extension (e.g. 201) from inside the PBX. If the subscriber also has an alias number assigned, you can dial that number also, according to your dial-plan in the rewrite rules.

Device/Aliases (how to register a phone on an alias)

Subscribers belonging to CloudPBX customers can create a special type of alias numbers called Device/Alias. Device/Alias differs in two important things compared to standard aliases:

A device can register directly on a Device/Alias number. To do that configure the Device/Alias number on the authentication username of the device instead of using the sip username defined during the creation of the subscriber. The password to use is instead still the same.
Devices registered directly on the alias number can make calls as devices registered using the subscribers’ sip username. Incoming calls, instead, behave differently:
- Incoming calls directed to the SIP Uri, to the full number, to the extension or to 'standard aliases' will let ring ONLY devices registered using the subscriber’s sip username.
- Incoming calls directed to Device/Aliases will let ring ONLY devices registered on that particular Device/Alias.

How to create a Device/Alias

To create a Device/Alias proceed as for the creation of a standard alias but flag the Is Device ID option shown just under the Alias Number definition.

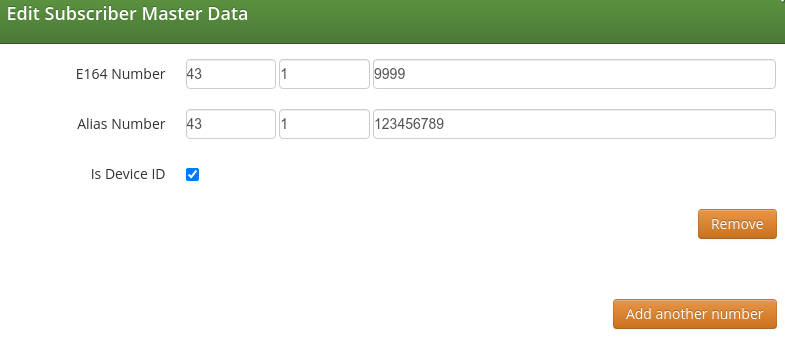

Figure 20. Device/Alias Creation

To easily distinguish which is the type of alias associated to a subscriber, Device/Alias are reported with a handset logo just beside the number in the subscriber’s master data.

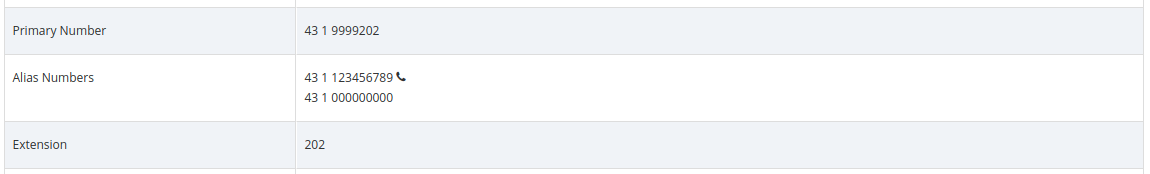

Figure 21. Show Device/Alias Master Data

lookup_all_registrations preference

The lookup_all_registrations subscriber’s preference allows to modify the incoming call behaviour described above. In particular, if the preference is flagged the behaviour is modified as following:

Incoming calls directed to the SIP Uri, to the full number, to the extension or to 'standard aliases' will let ring BOTH devices registered using the subscriber’s sip username and devices registered on all the Device/Aliases.
Incoming calls directed to Device/Aliases will continuous let ring ONLY devices registered on that particular Device/Alias.

Assigning Subscribers to a Device

You can register any SIP phone with the system using a SIP subscriber credentials. However, the platform supports PBX Device Provisioning of certain vendors and models, as described in ngcp_additional_modules:cloud-pbx-main.adoc#device-management.

To configure a physical device, expand the PBX Devices section in the Customer Details page and click Create Device.

Set up three general parameters for the new device, which are:

Device Profile: The actual device profile you want to use. This has been pre-configured in the Device Management by the administrator or reseller, and the customer can choose from the list of profiles (which is a combination of an actual device plus its corresponding configuration).
MAC Address/Identifier: The MAC address of the phone to be added. The information can usually either be found on the back of the phone, or in the phone menu itself.
Station Name: Since you can (depending on the actual device) configure more lines on a phone, you can give it a station name, like Reception or the name of the owner of the device.

In addition to that information, you can configure the lines (subscribers) you want to use on which key, and the mode of operation (e.g. if it’s a normal private phone line, or if you want to monitor another subscriber using BLF, or if you want it to act as shared line using SLA).

For example, a Cisco SPA504G has 4 keys you can use for private and shared lines as well as BLF on the phone itself, and in our example we have an Attendant Console attached to it as well, so you have 32 more keys for BLF.

The settings per key are as follows:

Subscriber: The subscriber to use (for private/shared lines) or to monitor (for BLF).
Line/Key: The key where to configure this subscriber to.
Line/Key Type: The mode of operation for this key, with the following options (depending on which options are enabled in the Device Model configuration for this device:
- Private Line: Use the subscriber as a regular SIP phone line. This means that the phone will register the subscriber, and you can place and receive phone calls with/for this subscriber.
- Shared Line: The subscriber is also registered on the system and you can place and receive calls. If another phone has the same subscriber also configured as shared line, both phones will ring on incoming calls, and you can pick the call up on either of them. You cannot place a call with this subscriber though if the line is already in use by another subscriber. However, you can "steal" a running call by pressing the key where the shared line is configured to barge into a running call. The other party (the other phone where the shared line is configured too) will then be removed from the call (but can steal the call back the same way).
- BLF Key: The Busy Lamp Field monitors the call state of another subscriber and provides three different functionalities, depending on the actual state:
  - Speed Dial: If the monitored subscriber is on-hook, the user can press the button and directly call the monitored subscriber.
  - Call Pickup: If the monitored subscriber is ringing, the user can press the button to pick up the call on his own phone.
  - State Indication: It the monitored subscriber is on the phone, the key is indicating that the monitored subscriber is currently busy.

In our example, we will configure a private line on the first key, and the BLF for another subscriber on the second key.

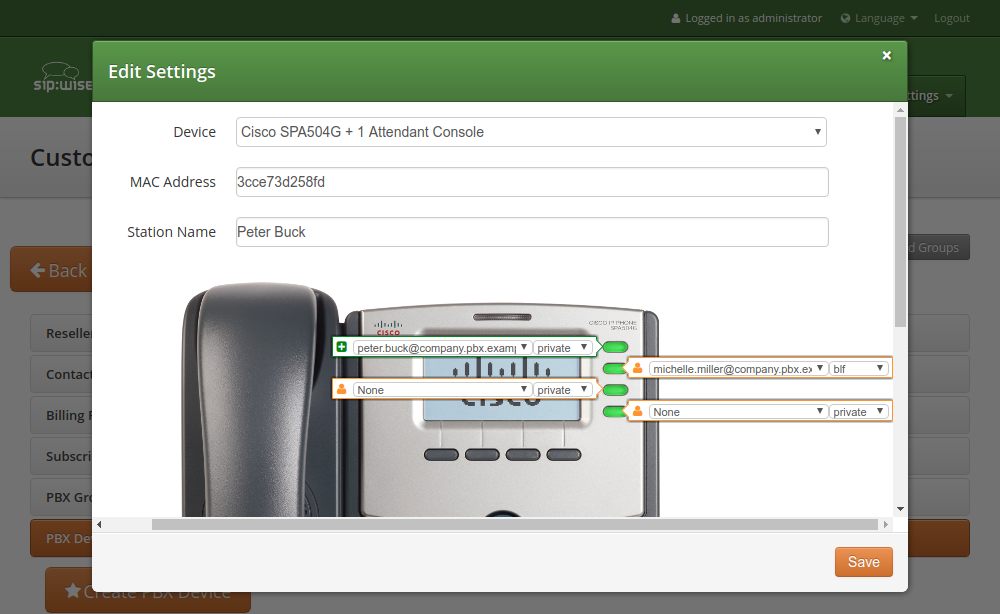

Figure 22. Configuring a PBX Device

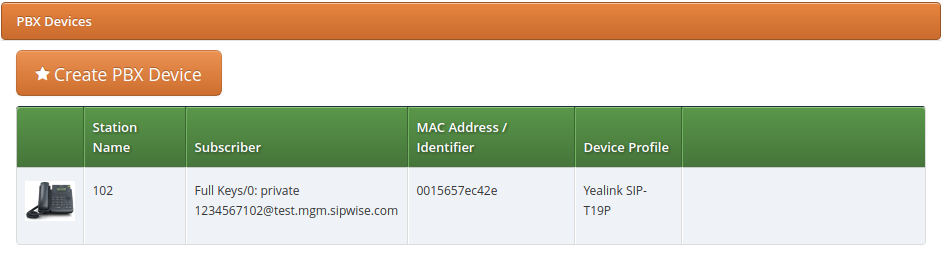

Once the PBX device is saved, you will see it in the list of PBX Devices.

Initial provisioning of a PBX Device

Depending on a manufacturer and the model, there are two ways of provisioning a device:

putting the provisioning URL directly to the device via a web browser (this option is used e.g. for Cisco devices);

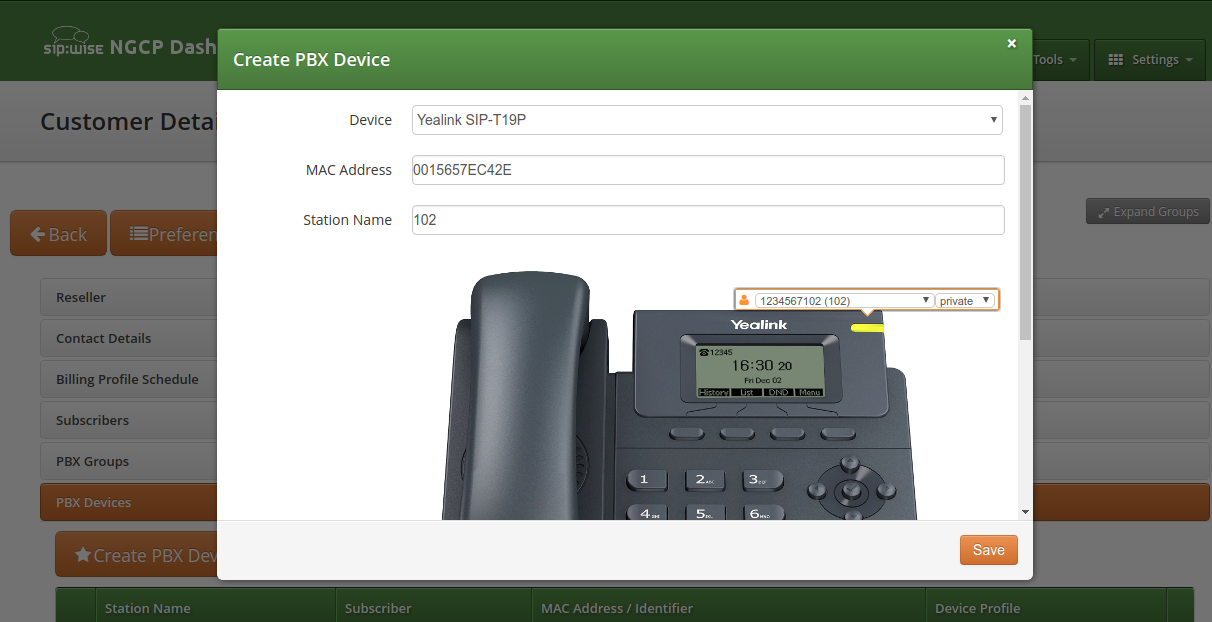

using the device’s Zero Touch Provisioning (ZTP) feature. For Yealink it is called Redirection and Provisioning Service (RPS).

Direct device provisioning

Since a stock device obtained from an arbitrary distributor doesn’t know anything about your system, it can’t fetch its configuration from there. For that to work, you need to push the URL of where the phone can get the configuration to the phone once.

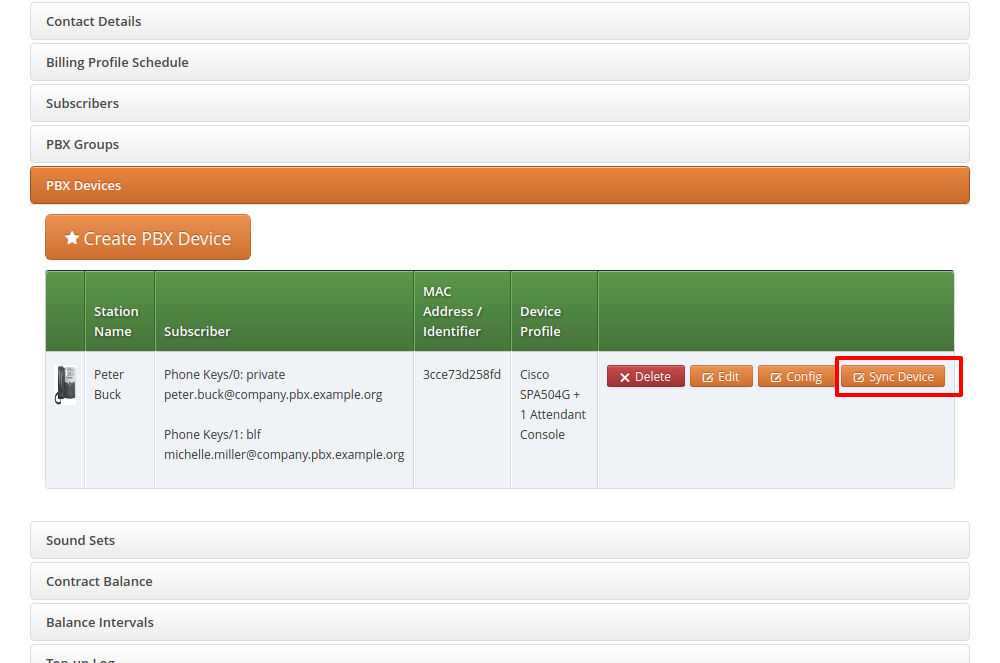

In order to do so, click the Sync Device button on the device you want to configure for the very first time.

Figure 23. Go to Sync Device

As you will see in the next step, you need the actual IP address of the phone to push the provisioning URL onto it. That implies that you need access to the phone to get the IP, and that your browser is in the same network as the phone in order to be able to connect to it, in case the phone is behind NAT.

Enter the IP Address of the phone (on Cisco SPAs, press Settings 9, where Settings is the paper sheet symbol, and note down the Current IP setting), then click Push Provisioning URL.

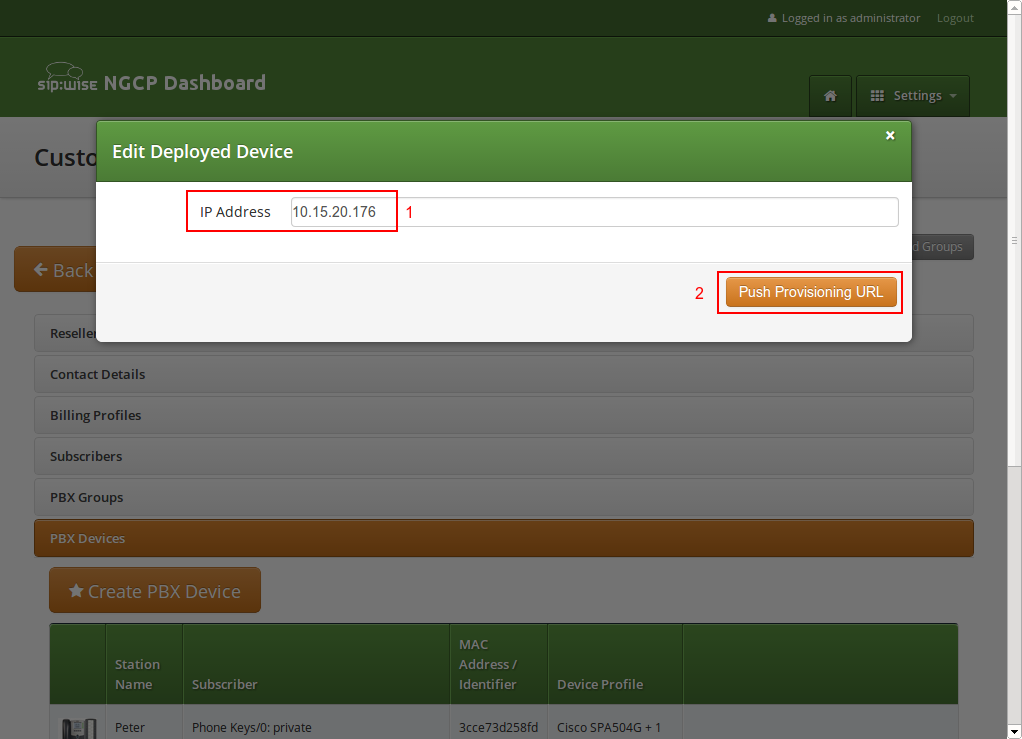

Figure 24. Sync Device

You will be redirected directly to the phone, and the Provisioning URL is automatically set. If everything goes right, you will see a confirmation page from the phone that it’s going to reboot.

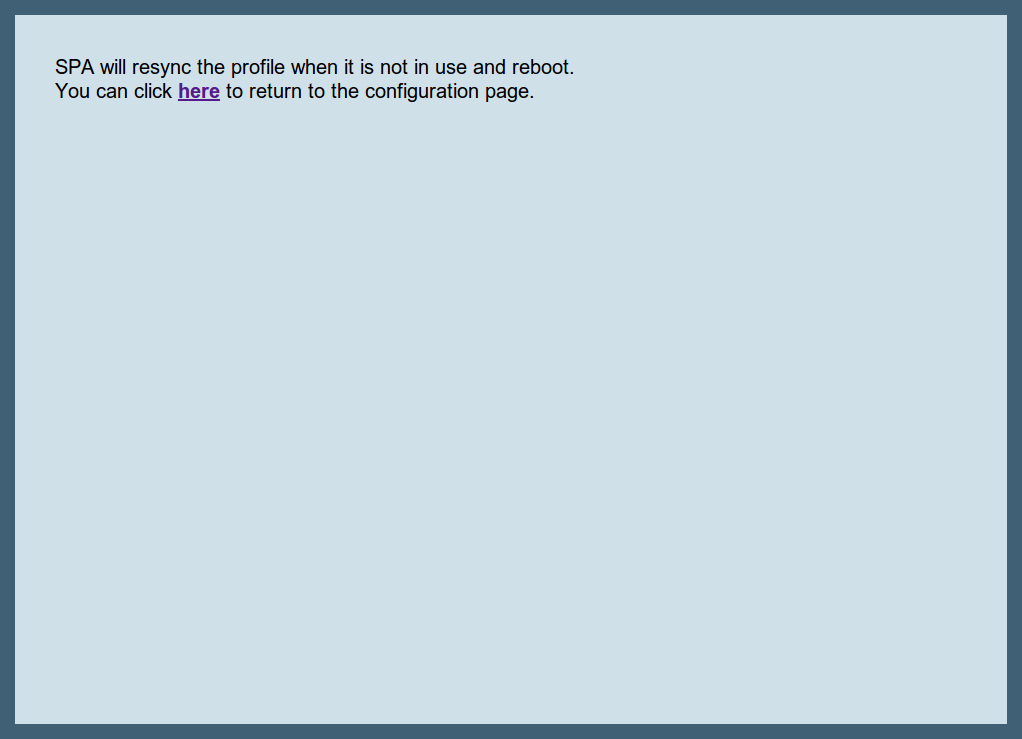

Figure 25. Device Sync Confirmation from Phone

You can close the browser window/tab and proceed to sync the next subscriber.

You only have to do this step once per phone to tell it the actual provisioning URL, where it can fetch the configuration from. From there, it will regularly sync with the server automatically to check for configuration changes and apply them automatically.

Provisioning a device using ZTP/RPS

All Polycom, Panasonic, Snom, Grandstream and Yealink phones supported by Sipwise C5 can be provisioned using ZTP/RPS service without physically accessing the devices. You only need to input MAC addresses of corresponding devices and associate them with subscribers. Sipwise C5 will then immediately supply this information to the ZTP/RPS system of the corresponding device vendor. When a subscriber unpacks the phone and connects it to the Internet for the first time, the phone will contact the manufactorer’s ZTP/RPS service and get its provisioning URL to Sipwise C5. Then, the phone downloads all required items from Sipwise C5 and automatically configures itself. Immediately after that, the subscriber can make the first call.

To prepare a PBX device for ZTP/RPS provisioining, follow these steps:

Go to the PBX Devices section of the corresponding customer and click Create PBX Device.
Specify the device and its SIP lines parameters:
- Select the required device model
- Input the device MAC address
- Specify the name of this line for your convenience
- Select a subscriber from the list for the corresponding SIP line. Some devices support multiple lines and you can provision all of them at once.
- Select the line type: private, shared or BLF.

Figure 26. Create a PBX device

Click Save. You will see the device in the list of customer’s PBX devices.

Figure 27. Created a new PBX device

If you have already provisioned a specific device on another platform or for another reseller, then you might need to delete that MAC address manually from the ZTP/RPS service.

When the PBX device provisions itself, it will become registered with your SIP proxy server. From then, it will be listed in the subscriber’s Registered Devices page.

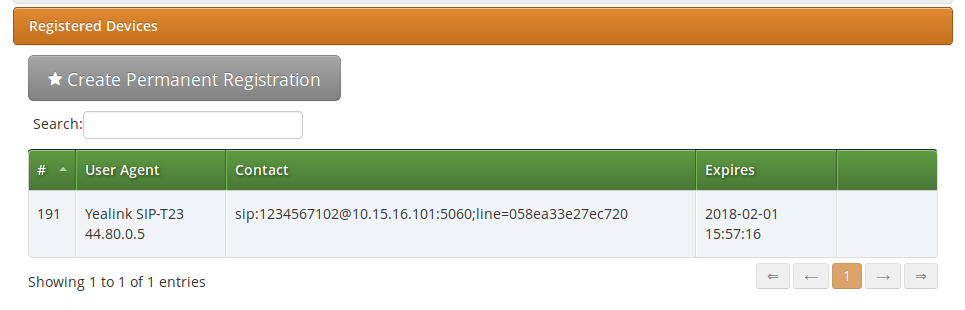

Figure 28. Registered devices

If you need to troubleshoot the provisioning process, the following logs would help you:

/var/log/ngcp/nginx (e.g. SSL errors are collected here: autoprov_error.log)
/var/log/ngcp/panel-debug.log (general provisioning logs)

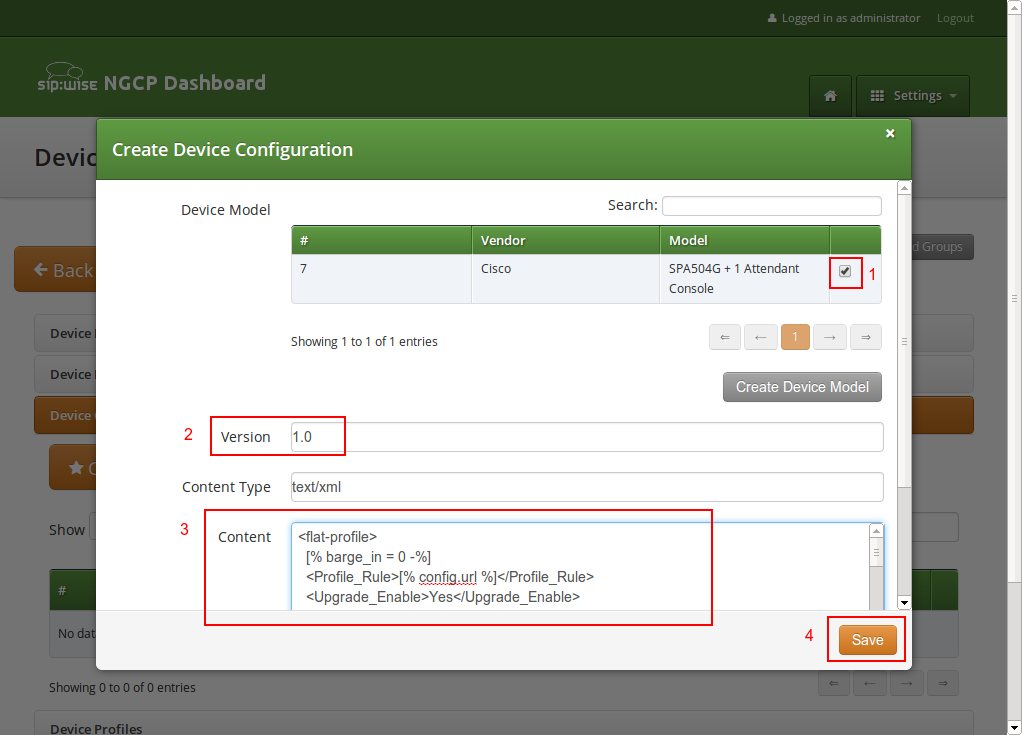

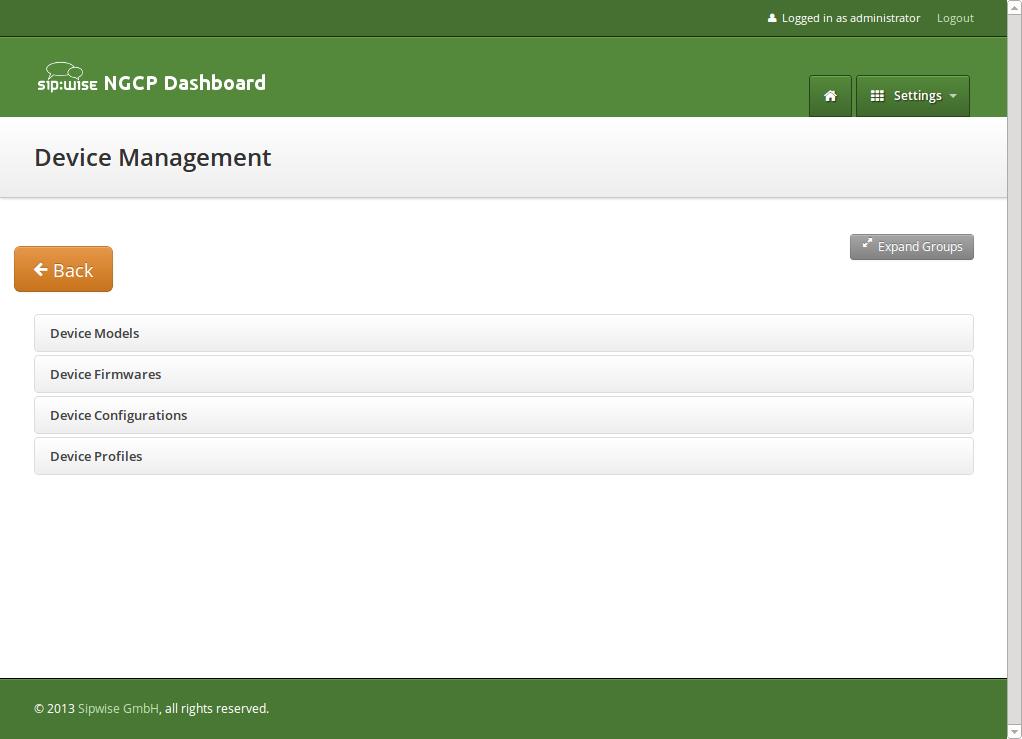

In case you would like to edit a device model, firmware, configuration or profile, refer to ngcp_additional_modules:cloud-pbx-main.adoc#device-adjustment

Configuring Sound Sets for the Customer PBX

In the Customer Details view, there is a row Sound Sets, where the customer can define his own sound sets for Auto Attendant, Music on Hold and the Office Hours Announcement.

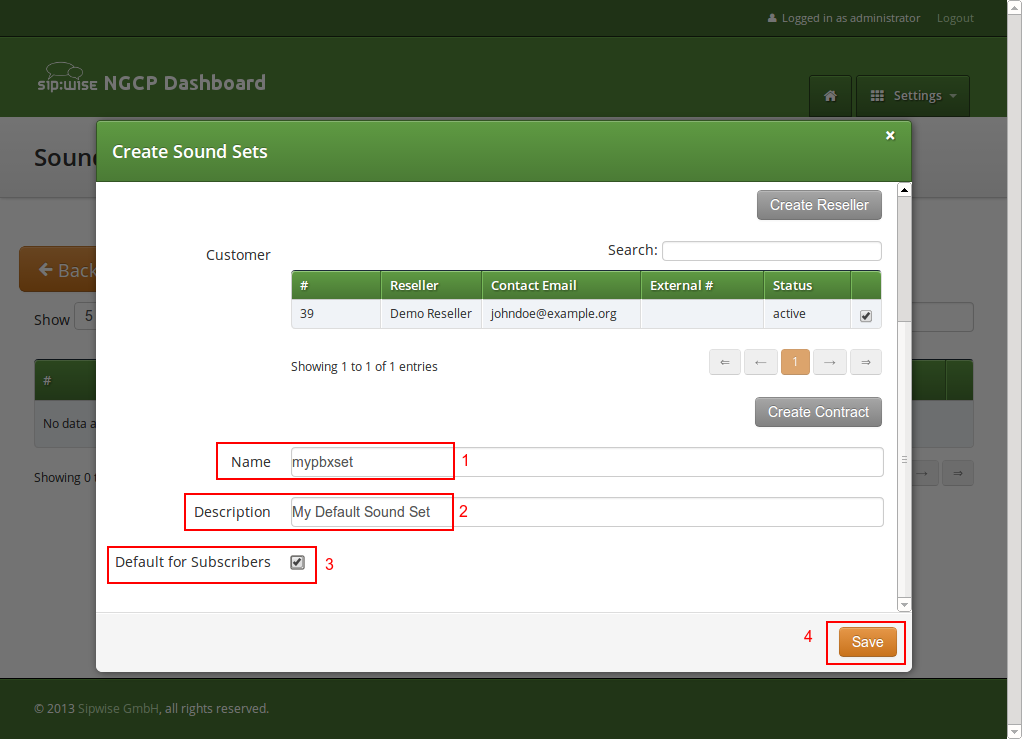

To create a new sound set, open the Sound Sets row and click Create Sound Set.

If you do this as administrator or reseller, the Reseller and/or Customer is pre-selected, so keep it as is. If you do this as customer, you don’t see any Reseller or Customer fields.

So the important settings are:

Name: The name of the sound set as it will appear in the Subscriber Preferences, where you can assign the sound set to a subscriber.
Description: A more detailed description of the sound set.
Default for Subscribers: If this setting is enabled, then the sound set is automatically assigned to all already existing subscribers which do NOT have a sound set assigned yet, and also for all newly created subscribers.

Fill in the settings and click Save.

Figure 29. Create Customer Sound Set

To upload files to your Sound Set, click the Files button for the Sound Set.

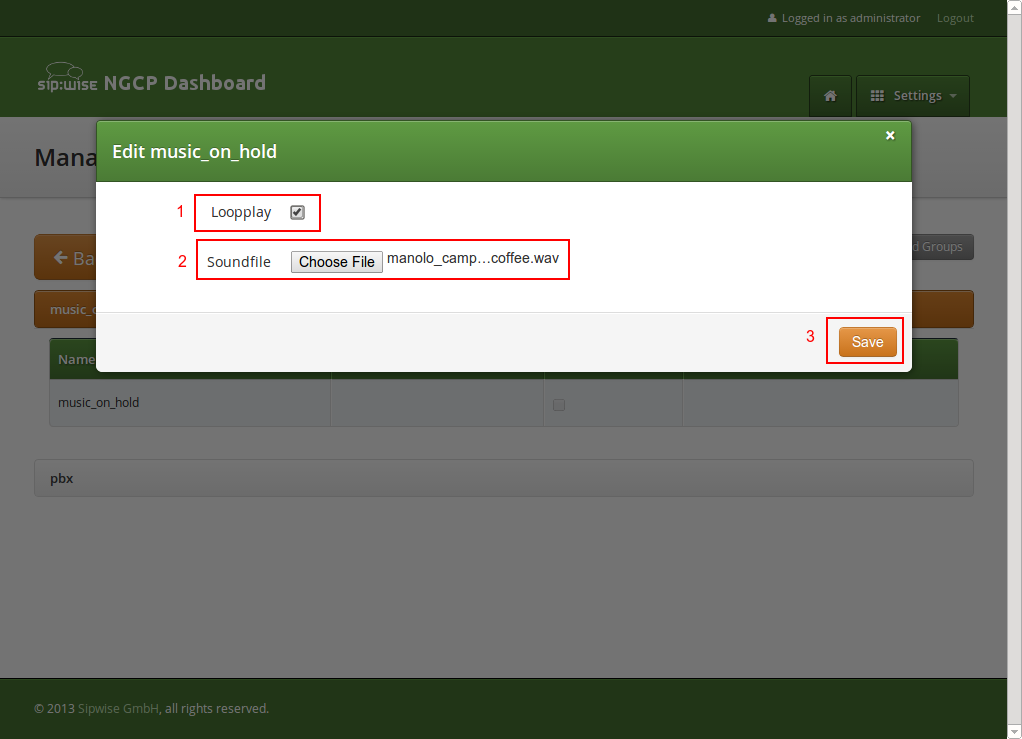

Uploading a Music-on-Hold File

Open the music_on_hold row and click Upload on the music_on_hold entry. Choose a WAV file from your file system, and click the Loopplay setting if you want to play the file in a loop instead of only once. Click Save to upload the file.

Figure 30. Upload MoH Sound File

Auto-Attendant Function

The Auto-Attendant is a built-in IVR feature that is available to Cloud PBX subscribers. It provides an automatic voice menu that enables the caller to select from a number of destinations, which could be other PBX subscribers or groups.

Another typical use case for the Auto-Attendant function is when the customer would like to have an "office assistant" that automatically takes incoming calls and routes them to the desired extension (i.e. to a subscriber).

The Auto-Attendant offers 2 ways of selecting the final call destination:

option selection: selecting one of the pre-configured destinations by pressing a single digit (0-9)
extension dialing: entering an arbitrary PBX extension number directly

Enabling the Auto-Attendant

The Auto-Attendant feature can be activated for any subscriber in the Customer PBX individually. There are three steps involved:

You have to prepare a Sound Set to have Auto-Attendant sound files.
You have to configure the destinations for the various options you provide (e.g. pressing 1 should go to the marketing subscriber, 2 to development and 3 to some external number).
You have to set a Call Forward to the Auto-Attendant.

To do so, go to Customer Details and in the Subscribers section, click the Preferences button of the subscriber, where the Auto-Attendant should be set.

Preparing the Sound Set

Create a Sound Set and upload the Sound Files for it as described below. Afterwards in the Subscriber Preferences view, set the Customer Sound Set preference to the Sound Set to be used. To do so, click Edit on the Customer Sound Set preference and assign the set to be used.

Uploading Auto-Attendant Sound Files

When configuring a Call Forward to the Auto-Attendant, it will play the following files:

aa_welcome: This is the welcome message (the greeting) which is played when someone calls the Auto-Attendant.
each available pair of aa_X_for/aa_X_option: Each menu item in the Auto-Attendant consists of two parts. The for part, which plays something like Press One for, and the option part, which play something like Marketing. The Auto-Attendant only plays those menu options where both the for part and the option part is present, so if you only have 3 destinations you’d like to offer, and you want them to be on keys 1, 2 and 3, you have to upload files for aa_1_for, aa_1_option, aa_2_for, aa_2_option and aa_3_for and aa_3_option.

The sound files only define the general structure of what is being played to the caller. The actual destinations behind your options are configured separately in Configuring the Auto-Attendant Slots.

An example configuration could look like this:

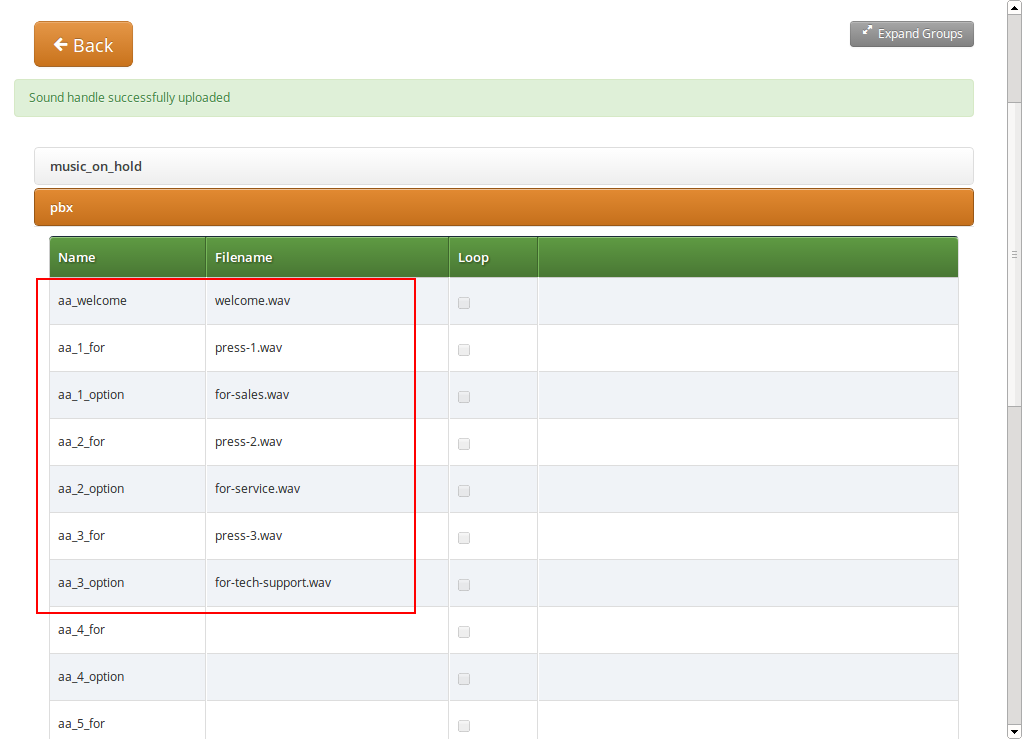

Figure 31. Upload Auto-Attendant Options Sound Files

In order to activate the extension dialing function within the Auto-Attendant, you have to upload the following prompt files:

aa_star_for, aa_star_option: the announcement "Press star for connecting to an extension" (or similar message, depending on customer’s needs)
aa_enter_extension: will instruct the caller to enter the phone number of the extension he wants to connect to
aa_invalid_extension: will be played when the phone number entered does not match any of the customer’s extensions

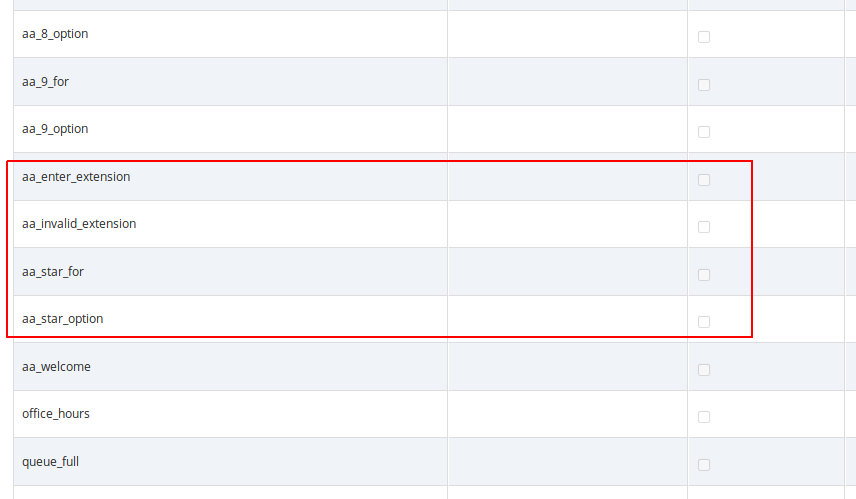

Figure 32. Upload Auto-Attendant Extension Dialing Sound Files

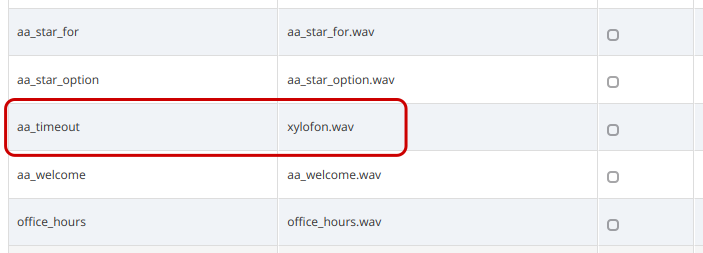

In order to enable the Auto-Attendant to play a prompt when the caller hasn’t selected any menu item within the timeout period, you have to upload a file to the "aa_timeout" prompt in the "pbx" section of the Sound Set.

Figure 33. Upload Auto-Attendant Timeout Sound File

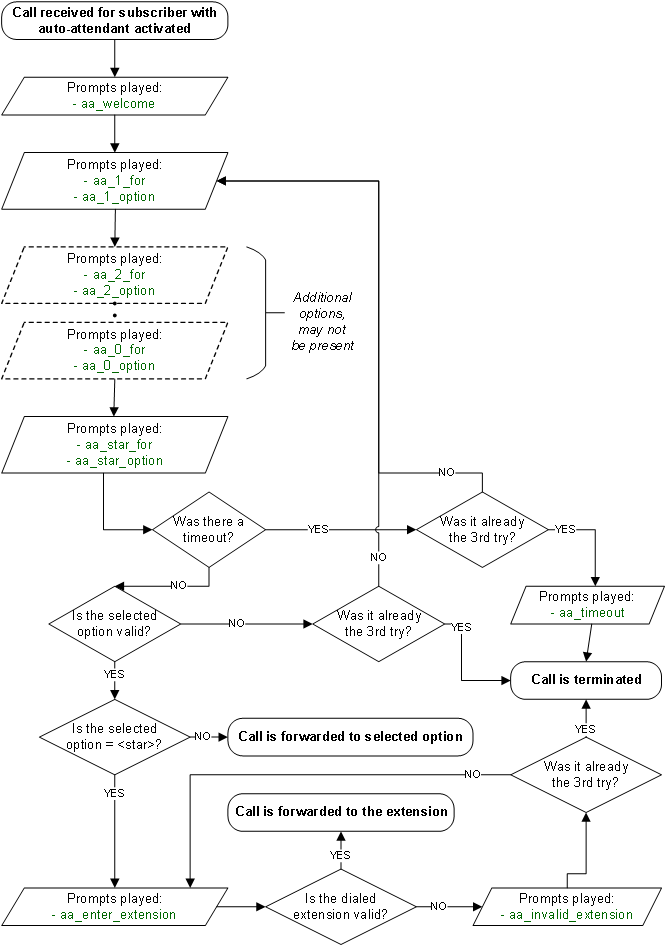

Auto-Attendant Flowchart with Voice Prompts

The illustration below shows the sequence of voice prompts played when Auto-Attendant feature is activated and a caller listens the IVR menu.

Figure 34. Flowchart of Auto-Attendant

Configuring the Auto-Attendant Slots

In the Auto-Attendant Slots section, click the Edit Slots button to configure the destination options. There are up to 10 available slots to configure, from keys 0 to 9.

Be aware that only configured slots will be prompted in the Auto-Attendant menu.

Click Add another Slot to add a destination option, select the Key the destination should be assigned to, and enter a Destination. The destination can be a subscriber username (e.g. marketing), a full SIP URI (e.g. sip:michelle.miller@customer1.pbx.example.org or any external SIP URI) or a number or extension (e.g. 491234567 or 101).

Repeat the step for every option you want to add, then press Save.

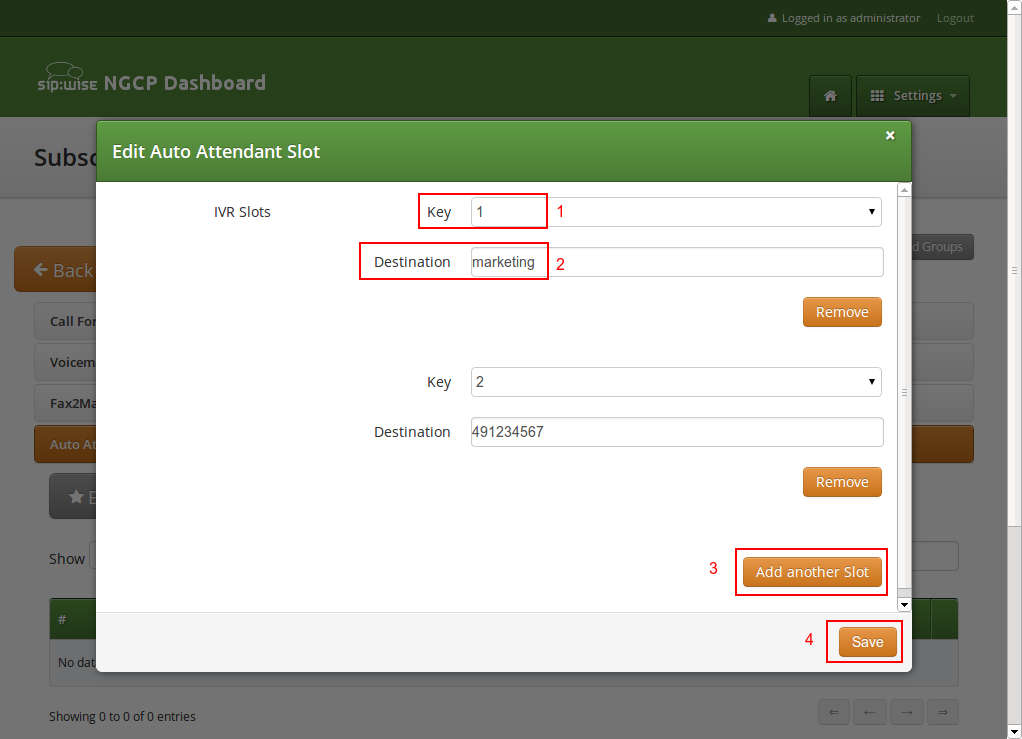

Figure 35. Define the Auto-Attendant Slots

Activating the Auto-Attendant

Once the Sound Set and the Slots are configured, activate the Auto-Attendant by setting a Call Forward to Auto-Attendant.

To do so, open the Call Forwards section in the Subscriber Preferences view and press Edit on the Call Forward type (e.g. Call Forward Unconditional if you want to redirect callers unconditionally to the Auto-Attendant).

Select Auto-Attendant and click Save to activate the Auto-Attendant.

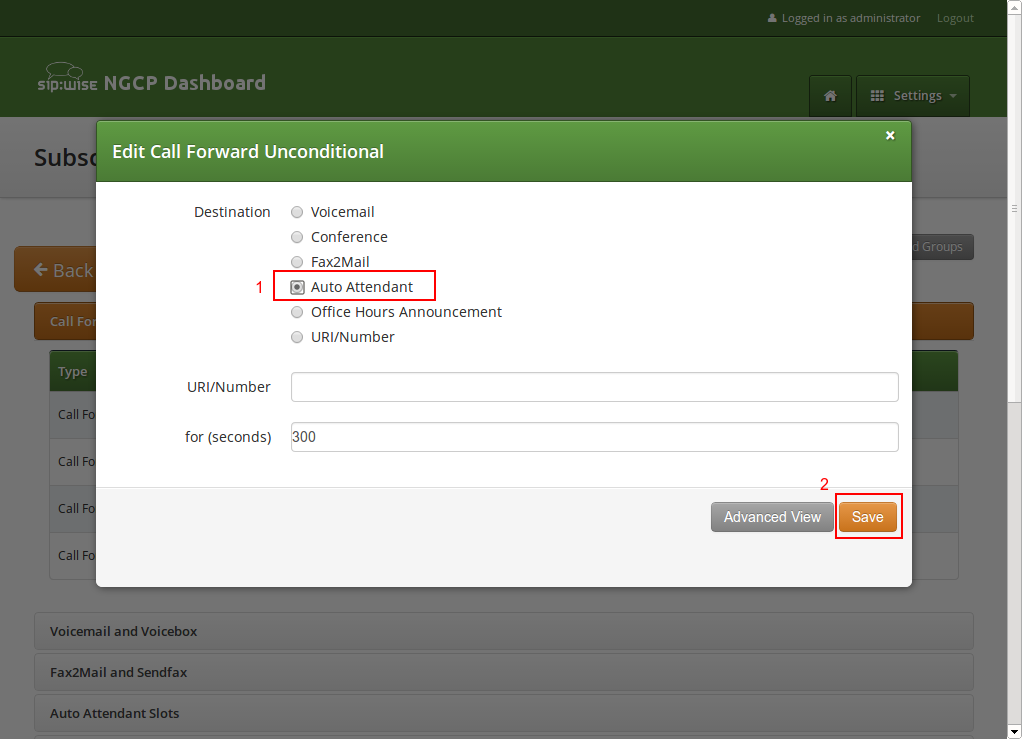

Figure 36. Set a Call Forward to Auto-Attendant

As with any other Call Forward, you can define more complex forwarding rules in the Advanced View to only forward the call to the Auto-Attendant during specific time periods, or as a fallback if no one picks up the office number.

Handling input errors in the Auto-Attendant

If the caller enters an invalid menu item (0-9), i.e. a choice that hasn’t got a valid destination or is not configured at all, the Auto-Attendant application will repeat the available choices again. The same happens when the caller enters an invalid extension number after selecting "star". After trying to select the wrong destination 3 times, the Auto-Attendant will terminate the call.

If the caller doesn’t select any menu item for a pre-configured timeout, the Auto-Attendant will repeat the menu items again. When the caller doesn’t select any menu item for 3 times, the Auto-Attendant will do the following:

terminate the call immediately if the "aa_timeout" prompt is not defined in the Sound Set
play the "aa_timeout" prompt before terminating the call, if that prompt is defined in the Sound Set, and then terminate the call

Cloud PBX Groups with Busy Members

A huntgroup or a PBX Group is a Cloud PBX feature that distributes the calls between members of the group according to the configured hunt policy and timeout. The PBX group belongs to a customer and one Cloud PBX subscriber can be a member of one or more of the huntgroups of the customer. Call Waiting is a CPE (phone) feature that allows you to take another call while you’re already on the phone.

Multiple incoming calls to the huntgroup may result in multiple calls delivered to the same subscriber if the Call Waiting feature is enabled on his phone, regardless whether the huntgroup members are busy at this time. Hence, busy subscribers may get a second incoming call. It may be an expected behavior (since one subscriber may have multiple devices and/or clients that all ring in parallel) or not, depending on the setup.

Therefore, Sipwise C5 Cloud PBX module offers Skip busy huntgroup members feature to check the busy status of individual huntgroup members before routing a call to them. This will leave subscribers on active phone calls undisturbed by calls to huntgroup.

The configuration of the Skip busy huntgroup members feature is done via the main configuration file: /etc/ngcp-config/config.yml. The relevant section is: kamailio.proxy.pbx.skip_busy_hg_members, the example below shows the default values of the parameters.

      skip_busy_hg_members:
        enable: no
        redis_key_name: 'totaluser'

Option kamailio.proxy.pbx.skip_busy_hg_members.enable determines if call destined to a huntgroup is routed to subscribers that have busy status. When enabled and huntgroup member is busy according to the active calls information in internal Redis storage the huntgroup call is not offered to this huntgroup member. The Sipwise C5 platform tries the other available HG members.

This option does not present an extended server-side Call Waiting functionality. It concerns only the huntgroups' behavior. Hence subscriber would still be able to receive multiple calls when called directly (not via huntgroup) with Call Waiting enabled on his phone.

The option redis_key_name may take the following values:

'totaluser': The callee is busy when involved in one or more incoming or outgoing calls in active or alerting phase.
'activeuser': The callee is busy when involved in one or more incoming or outgoing calls in active or alerting phase but NOT busy for the calls that are forwarded.

When the feature is enabled with redis_key_name set to 'totaluser':

      skip_busy_hg_members:
        enable: yes
        redis_key_name: 'totaluser'

The behavior when calling the huntgroup is the following:

The callee is busy when involved in one or more incoming or outgoing calls in active or alerting phase.
The callee is busy for incoming calls that are forwarded.

This can be better illustrated by the following use cases:

Use Case 1: Subscriber receives an incoming call. A second call is made to the HG. The subscriber should NOT receive this call via HG extension.
Use Case 2: Subscriber makes an outgoing call. A second call is made to the HG. The subscriber should NOT receive this call via HG extension.
Use Case 3: Subscriber with call forwards (CFU, CFB, CFNA, CFT) receives a call to his extension (not extension of HG) which is then forwarded. A second call is made to the HG. The subscriber should NOT receive the call via HG extension.

In order to prevent the forwarded calls from keeping the subscriber as "busy" for the purpose of this feature the platform administrator should set the kamailio.proxy.pbx.skip_busy_hg_members.redis_key_name parameter to value activeuser:

      skip_busy_hg_members:
        enable: yes
        redis_key_name: 'activeuser'

While User Cases 1 an 2 will behave in the same way as described above, the change of behavior happens in Use Case 3:

Use Case 3: Subscriber with call forwards (CFU, CFB, CFNA, CFT) receives a call to his extension (not extension of HG) which is then forwarded. A second call is made to the HG. The subscriber should receive the call as normal.

There is a possibility to fine-tune when callee is considered busy and exclude, for example, intra-PBX calls or calls to voicemail from keeping subscriber as "busy". Please contact Sipwise support if you’d like to do that.

Configuring Call Queues

The Sipwise C5 platform offers call queueing feature for Cloud PBX subscribers. For any subscriber within the PBX Sipwise C5 system administrator or the subscriber himsef may activate the Call Queue. This is done individually for each subscriber on demand.

If call queue activation has been done and the subscriber receives more than 1 call at a time, then the second and all further callers will be queued until the subscriber finishes his call with the first caller and gets free.

Activating the Call Queue

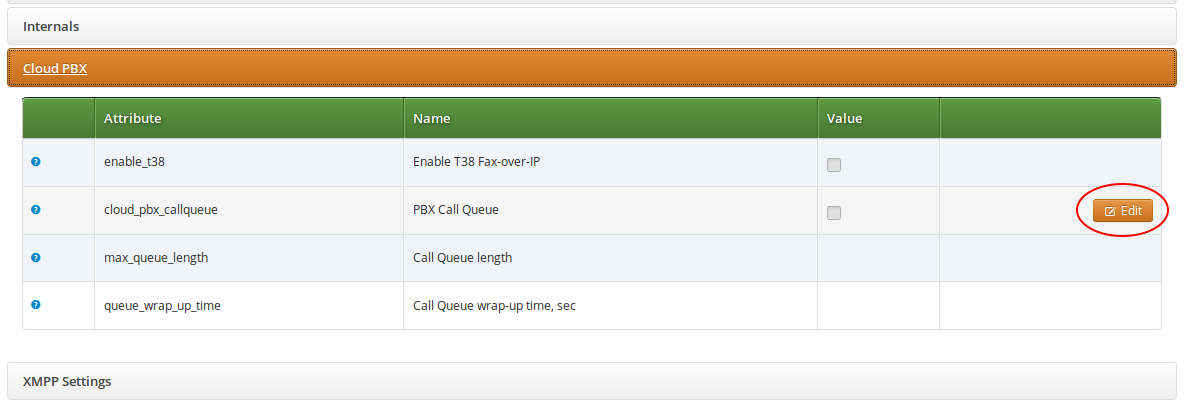

The call queue configuration is available at the path: Subscribers → select one → Details → Preferences → Cloud PBX.

Following configuration parameters may be set for call queueing:

cloud_pbx_callqueue : shows the status of call queueing (enabled / disabled); by default it is disabled
max_queue_length : the length of call queue, i.e. the maximum number of callers in a queue; the default is 5
queue_wrap_up_time : the delay in seconds between the ending of the previous call and the connection of the next queued caller with the subscriber; the default is 10

In order to change the actual setting, press the Edit button in the relevant row.

Figure 37. Call Queue Configuration

Call Queue Voice Prompts

Queued callers first hear a greeting message then information about their position in the queue and finally a waiting music / signal.

Table 1. Call Queue Voice Prompts
Prompt handle	Prompt content
`queue_greeting`	All lines are busy at the moment, you are being queued.
`queue_prefix`	You are currently number…
`queue_suffix`	… in the queue, please hold the line.
`queue_full`	All lines are busy at the moment, please try again later.
`queue_waiting_music`	<waiting music>

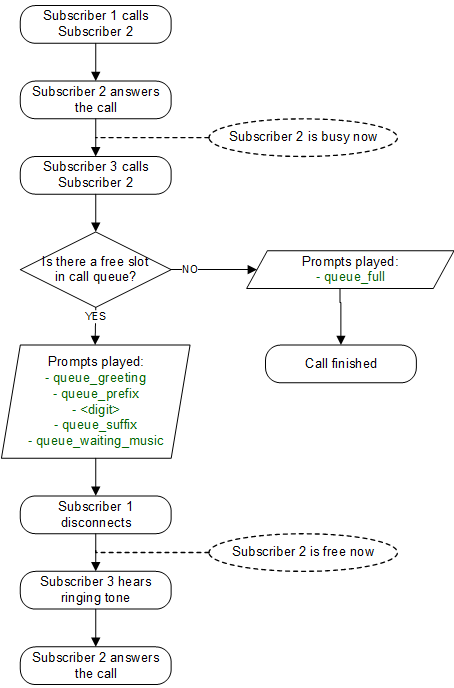

Call Queue Flowchart with Voice Prompts

The following illustration shows which voice prompts are played to the caller when the call gets into a queue.

Figure 38. Flowchart of Call Queue

Device Auto-Provisioning Security

Server Certificate Authentication

The Cisco SPA phones can connect to the provisioning interface of the PBX via HTTP and HTTPS. When perform secure provisioning over HTTPS, the phones validate the server certificate to check if its a legitimate Cisco provisioning server. To pass this check, the provisioning interface must provide a certificate signed by Cisco for that exact purpose.

The following steps describe how to obtain such a certificate.

First, a new SSL key needs to be generated:

$ openssl genrsa -out provisioning.key 2048
Generating RSA private key, 2048 bit long modulus
...+++
...............................................................+++
e is 65537 (0x10001)

Next, a certificate signing request needs to be generated as follows. Provide your company details.

The Common Name (e.g. server FQDN or YOUR name) field is crucial here. Provide an FQDN which the phones will later use via DNS to connect to the provisioning interface, for example pbx.example.org. Cisco does NOT support wild-card certificates.

Leave the password empty when asked for it (press Enter without entering anything).

$ openssl req -new -key provisioning.key -out provisioning.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.

Country Name (2 letter code) [AU]:AT
State or Province Name (full name) [Some-State]:Vienna
Locality Name (eg, city) []:Vienna
Organization Name (eg, company) [Internet Widgits Pty Ltd]:Sipwise GmbH
Organizational Unit Name (eg, section) []:Operations
Common Name (e.g. server FQDN or YOUR name) []:pbx.example.org
Email Address []:office@sipwise.com

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:
An optional company name []:

Finally, compress the provisioning.csr file via ZIP and send it to our Cisco sales representative. If in doubt, you can try to send it directly to ciscosb-certadmin@cisco.com asking them to sign it.

Only send the CSR file. Do NOT send the key file, as this is your private key!

Ask for both the signed certificate AND a so-called combinedca.crt which is needed to perform client authentication via SSL. Otherwise you can not restrict access to Cisco SPAs only.

You will receive a signed CRT file, which Sipwise can use to configure the PBX provisioning interface.

Client Certificate Authentication

If a client connects via HTTPS, the server also checks for the client certificate in order to validate that the device requesting the configuration is indeed a legitimate Cisco phone, and not a fraudulent user with a browser trying to fetch user credentials.

Cisco Client Root Certificate can be obtained from Download Client Certificates website.

Device Bootstrap and Resync Workflows

The IP phones supported by the PBX need to initially be configured to fetch their configuration from the system. Since the phones have no initial information about the system and its provisioning URL, they need to be boot-strapped. Furthermore, changes for a specific device might have to be pushed to the device immediately instead of waiting for it to re-fetch the configuration automatically.

The following sections describe the work-flows how this is accomplished without having the customer directly accessing the phone.

Cisco SPA Device Bootstrap

Initial Bootstrapping

Figure 39. Initially bootstrap a PBX device

Subsequent Device Resyncs

If one of the subscribers configured on a PBX device is registered via SIP, the system can trigger a re-sync of the phone directly via SIP without having the customer enter the IP of the phone again. This is accomplished by sending a special NOTIFY message to the subscriber:

NOTIFY sip:subscriber@domain SIP/2.0
To: <sip:subscriber@domain>
From: <sip:subscriber@domain>;tag=some-random-tag
Call-ID: some-random-call-id
CSeq: 1 NOTIFY
Subscription-State: active
Event: check-sync
Content-Length: 0

In order to prevent unauthorized re-syncs, the IP phone challenges the request with its own SIP credentials, so the NOTIFY is sent twice, once without authentication, and the second time with the subscriber’s own SIP credentials.

Figure 40. Resync a registered PBX device

Panasonic Device Bootstrap

Initial Bootstrapping

Panasonic provides a zero-touch provisioning mechanism in their firmwares, which causes the factory-reset phones to connect to a Panasonic web service at https://provisioning.e-connecting.net to check if a custom provisioning URL is configured for the MAC address of the phone. If an association between the MAC and a provisioning URL is found, the web service redirects the phone to the provisioning URL, where the phone connects to in order to obtain the configuration file.

Figure 41. Initially bootstrap a Panasonic phone

The CloudPBX module ensures that when an end customer creates a Panasonic device, the MAC address is automatically provisioned on the Panasonic web service via an API call, so the customer’s phone can use the correct provisioning URL to connect to the auto-provisioning server of the CloudPBX.

As a result, no customer interaction is required to bootstrap Panasonic phones, other than just creating the phone with the proper MAC on the CloudPBX web interface.

Factory Reset

For already provisioned phones, the end customer might need to perform a factory reset:

Press Settings or Setup
Enter #136
Select Factory Setting and press Enter
Select Yes and press Enter
Select Yes and press Enter

The default username for factory-reset phones is admin with password adminpass.

Subsequent Device Resyncs

The same procedure as with Cisco SPA phones applies, once a subscriber configured on the phone is registered.

SNOM Device Bootstrap

Initial Bootstrapping

SNOM provides a zero-touch provisioning mechanism in their firmwares, which causes the factory-reset phones to connect to a SNOM web service at https://sraps.snom.com/ to check if a custom provisioning URL is configured for the MAC address of the phone. If an association between the MAC and a provisioning URL is found, the web service redirects the phone to the provisioning URL, where the phone connects to in order to obtain the configuration file.

Figure 42. Initially bootstrap a SNOM phone

The CloudPBX module ensures that when an end customer creates a SNOM device, the MAC address is automatically provisioned on the SNOM web service via an API call, so the customer’s phone can use the correct provisioning URL to connect to the auto-provisioning server of the CloudPBX.

As a result, no customer interaction is required to bootstrap SNOM phones, other than just creating the phone with the proper MAC on the CloudPBX web interface.

Linking SNOM Handsets with SNOM M900 Base Station

To add a handset to a base station and to assign a subscriber to the handset, open preferences of a subscriber and add the IPUI of the handset into the settings field 'gpp0' (the gpp number can be changed in device config if necessary).

IPUIs have to start with 0x (e.g. if IPUI is 123456789, set gpp0 equal to 0x123456789)

If a new IPUI is added, a base station config reload is necessary. It happens periodically on automated bases or base station reboot.

Updating SNOM Firmware

For D-Series Phones: It is recommended to use the SNOM Update Center URL (usually http://downloads.snom.com) to update the firmware of phones and base stations. SNOM firmware files are signed and the phones check the signatures of the files during provisioning. This makes sure only a proper SNOM firmware can be installed on the phones via HTTP. HTTPS transport might be unreliable on newly started devices due to wrong date/time. The firmware can be downloaded from NGCP as well. In the Device Configuration XML config, there is a commented line pointing to NGCP.

<firmware>[% config.bootstrap ? firmware.booturl : firmware.baseurl %]/[% config.mac #%]/from/0/latest/</firmware>

For M-Series Base Stations: M-Series base stations require the user to define the version and branch of the firmware to update to. By default, this version is set to V510B01. If a different firmware version is needed, it has to be manually changed in the Device Configuration XML config.

<fp_fwu_sw_version>510</fp_fwu_sw_version>

<fp_fwu_branch_version>1</fp_fwu_branch_version>

Base stations with firmware below version V500B1 can’t directly upgrade to the newest firmware. Please double check vendor upgrade recommendations and limitations on SNOM website.

For Handsets to use with M-Series Base Stations: Handsets require you to add the version, branch and type of device you want to update separately like this:

<pp_fwu_sw_version type="M65">510</pp_fwu_sw_version>

<pp_fwu_branch_version type="M65">1</pp_fwu_branch_version>

If a new handset is added to a base station, a reboot is required to apply the update settings

Handsets require the included charger to complete the firmware upgrade.

Additionally, handsets also require you to add the IPUI of the handset you want to update. This step can be done via NGCP. Go to the subscriber settings, search for setting gpp, use an unused gpp preference and add the IPUI in here. It is possible to use any general purpose field from subscriber preferences (gpp1, gpp2, …) until it matches PBX Device Configuration for XML attribute "<subscr_dect_ipui>".

IPUIs have to start with 0x, for example 0x123456789

Acquiring the IP of SNOM Base Stations

To get the IP address of the base stations close to you, use a SNOM Handset, go to the applications menu and type *47*. All base stations should show up in a list view with their IP Address.

Adding Vertical Service Code Wrappers into D-Series Templates

The Vertical Service Code (VSC) Interface offers a list of codes which can be masked by using specific “wrappers” tags within SNOM D-Series devices. Some examples for Reminder, Call Forward Unconditional and Speed Dial features are provided as follows:

<functionKeys e="2">
<fkey idx="3" context="1" lp="on" default_text="Reminder" icon_type="kIconTypeFkeyClock" perm="">url http://192.168.91.254/sipwise/vcs_mb.xml#sub=*[@id="vcs_55"]&amp;var:sc_vcs_55_on=*55&amp;var:sc_vcs_55_default=0830</fkey>
<fkey idx="4" context="1" lp="on" default_text="CFU" icon_type="kIconTypeFkeyTransfer" perm="">url http://192.168.91.254/sipwise/vcs_mb.xml#sub=*[@id="vcs_72"]&amp;var:sc_vcs_72_on=*72&amp;var:sc_vcs_72_off=#72</fkey>
<fkey idx="5" context="1" lp="on" default_text="SpeedDial" icon_type="kIconTypeFkeySpeedDial" perm="">url http://192.168.91.254/sipwise/vcs_mb.xml#sub=*[@id="vcs_50"]&amp;var:sc_vcs_50_on=*50&amp;var:sc_vcs_50_default_slot=1</fkey>
</functionKeys>

[* TAGS default *]

On the example above, the XML file 'vcs_mb.xml' needs to be placed on an external HTTP Server, or needs to be provisioned into the phone.

Please, contact SNOM for further assistance, or check SNOM Service Hub (Keyword: VCS Sipwise) if needed.

Yealink Device Bootstrap

Initial Bootstrapping

Yealink provides a zero-touch provisioning mechanism in their firmwares, which causes the factory-reset phones to connect to a Yealink web service at https://rps.yealink.com to check if a custom provisioning URL is configured for the MAC address of the phone. If an association between the MAC and a provisioning URL is found, the web service redirects the phone to the provisioning URL, where the phone connects to in order to obtain the configuration file.

If both Cisco SPA and Yealink phones are used, an issue with the Cisco-signed server certificate configured on the provisioning port (1444 by default) of the CloudPBX provisioning server arises. Yealink phones by default only connect to trusted server certificates, and the Cisco CA certificate used to sign the server certificate is not trusted by Yealink. Therefore, a two-step approach is used to disable the trusted check via a plain insecure http port (1445 by default) first, where only device-generic config options are served. No user credentials are provided in this case, because no SSL client authentication can be performed. The generic configuration disables the trusted check, and at the same time changes the provisioning URL to the secure port, where the Yealink phone is now able to connect to.

Figure 43. Initially bootstrap a Yealink phone

The CloudPBX module ensures that when an end customer creates a Yealink device, the MAC address is automatically provisioned on the Yealink web service via an API call, so the customer’s phone can use the correct insecure bootstrap provisioning URL to connect to the auto-provisioning server of the CloudPBX for the generic configuration, which in turn provides the information on where to connect to for the secure, full configuration.

As a result, no customer interaction is required to bootstrap Yealink phones, other than just creating the phone with the proper MAC on the CloudPBX web interface.

Factory Enable Yealink Auto-Provisioning

Older Yealink firmwares don’t automatically connect to the Yealink auto-provisioning server on initial boot, so it needs to be enabled manually by the end customer.

Log in to http://phone-ip/servlet?p=hidden&q=load using admin and admin as user/password when prompted
Change Redirect Active to Enabled
Press Confirm and power-cycle phone

Subsequent Device Resyncs

The same procedure as with Cisco SPA phones applies, once a subscriber configured on the phone is registered.

Audiocodes Mediant Device Bootstrap and Configuration

Initial Bootstrapping

An Audiocodes device provides a zero-touch provisioning mechanism in its firmware which causes a factory-reset device to connect to the URL built into the firmware. This URL is pointing to Sipwise C5 provisioning server (in case of Sipwise C5 Carrier: web01 node) listening on TCP port 1444 for HTTPS sessions.

The prerequisites for the device provisioning are that the device has a routable IP address and can reach the IP address of Sipwise C5 provisioning interface.

The Audiocodes device should request the firmware file or CLI configuration file from Sipwise C5 platform. The firmware versions and CLI config versions are decoupled from each other; Sipwise C5 can not enforce specific version of the firmware on the device. Instead, it should be requested by the device itself. In other words, provisioning is a 'pull' and not a 'push' process.

Sipwise C5 expects the provisioning request from the Audiocodes device after SSL handshake and serves the requested file to the device if the device provides valid MAC address as the part of the URL. The MAC address is used to identify the device to Sipwise C5 platform. The firmware and CLI config files are provided at the following URLs:

the base URL to download firmwares: https://<NGCP_IP>:1444/device/autoprov/firmware/001122334455/from/0/latest
the base URL to download CLI config: https://<NGCP_IP>:1444/device/autoprov/config/001122334455

where 001122334455 should be replaced with the actual device’s MAC address and <NGCP_IP> with IP address of Sipwise C5 provisioning interface.

Figure 44. Initially bootstrap a Mediant gateway

Device management basics

The list of device models, firmwares and configurations are global to a reseller and are available for end customer. This data is initially provided by Sipwise as bulk upload of all supported phone models. The firmwares and settings are stored in the database on the DB node pair(s). The Sipwise C5 leverages the Cloud PBX module with its template system to generate the configurations and firmware files from database on the fly. Please refer to the following chapters in Sipwise C5 handbook for the current information on how to perform device management:

Uploading device firmwares
Creating device configuration
Creating device profiles

Parameterizing the Device Configuration Template

The device-specific parameters are filled in by the system individually when a physical device fetches its configuration file. Parameters from Sipwise C5 panel:

username: Subscriber Details → Master Data → SIP Username
password: Subscriber Details → Master Data → SIP Password
domain: Subscriber Details → Master Data → Domain
extension: Subscriber Details → Master Data → Extension
area code: Subscriber Preferences → Number Manipulations → ac
country code: Subscriber Preferences → Number Manipulations → cc

The produced CLI config file has the following structure:

SIP account credentials:
```
"sip-definition account 0"
```
- user-name [username]
- password [password]
- host-name [domain]
- register reg
- contact-user "[country code][area code][extension]"

IP Groups:

"voip-network ip-group 1" and "voip-network ip-group 2"

sip-group-name [domain]

Proxy and registration settings:
```
"sip-definition proxy-and-registration"
```
- set gw-name [domain]
Manipulations:
- manipulation-name "from trunk domain":
  "sbc manipulations message-manipulations 3"
  - action-value "[% line.domain %]"
- manipulation-name "clip no screening":
  "sbc manipulations message-manipulations 8"
  - action-value "\'<sip:+[country code][area code][extension]@' + param.ipg.dst.host + \'>'"

Specific CLI parameters are:

[IPPBX_Hostname]
[IPPBX_server_IP]

which are used at the following configuration parameters:

Proxy settings:
```
"voip-network proxy-ip 1"
```
- proxy-address [IPPBX_Hostname]

Manipulations:

"sbc manipulations message-manipulations 1"

action-value [IPPBX_Hostname]

Device Provisioning and Deployment Workflows

This chapter provides information and hints for preparing and performing the deployment of certain VoIP devices at customer sites, that have a customer-facing interface which also needs customisation.

Audiocodes Mediant Device Provisioning Workflow

Audiocodes ISDN gateways and eSBCs are devices used to connect legacy (ISDN) PBX and IP-PBX to Sipwise C5 platform and maintain their operations within the Operator’s network. Sipwise C5 offers a SipConnect 1.1 compliant signaling and media interface to connect SIP trunks to the platform. In addition to this interface, Sipwise C5 provides an auto-provisioning mechanism to configure SIP endpoints like IP phones, media gateways and eSBCs.

Provisioning URL

An Audiocodes device needs to obtain the provisioning URL of Sipwise C5 in one way or the other to request its device configuration and subsequently download specific firmwares, obtain SIP credentials to connect to the network facing side, and configure the customer facing side for customer devices to connect either via ISDN or SIP. Typical ways of obtaining the provisioning URL for a SIP endpoint are:

using DHCP option-66 (in a pre-staging environment or directly at the customer premise) where vendor-specific Redirect Servers are configured in the default configuration or firmware
getting pre-configured per deployment from the SIP endpoint vendor
getting pre-configured per deployment by a 3rd party distributor

The assumption is that Audiocodes devices are supplied with a firmware (and all required SSL certificates) being pre-configured and the provisioning URL pointing to an Operator URL Sipwise C5 is serving, before handing the devices over to field service engineers doing the truck rolls.

Field Configuration

The Sipwise C5 provides a SipConnect 1.1 compliant interface on the network side for the Audiocodes devices. This interface defines the numbering formats of the calling and called party, the SIP header mechanisms to provide CLI restriction, the RTP codecs, etc.

On the customer facing side, however, those variables might be different from deployment to deployment:

An IP-PBX might choose to only send its extension as calling party number, or might choose to send the full number in national format.
It might choose to use the SIP From-header mechanisms to suppress displaying of the CLI, or use the SIP Privacy header.
The same uncertainty exists to some extent for a legacy PBX connecting via ISDN to the Audiocodes device.

The assumption here is that a field service engineer is NOT supposed to change the Audiocodes configuration in order to make the customer interface work, as this will lead to big issues in maintaining those local changes, especially if a replacement of the device is necessary. Instead, the Audiocodes configuration must ensure that all different kinds of variants in terms of SIP headers, codecs and number formats are translated correctly to the network side and vice versa. If it turns out that there are scenarios in the field which are not handled correctly, temporary local changes might be performed to finish a truck roll, but those changes MUST be communicated to the platform operator, and the server-side configuration templates must be adapted to handle those scenarios gracefully as well.

For deployments with ISDN interfaces on the customer facing side of the Audiocodes, different Device Profiles with specific Device Configurations per Device Model must exist to handle certain scenarios, specifically whether the ISDN interface is operating in Point-to-Point or Point-to-Multipoint mode. Configuration options like which side is providing the clock-rate are to be defined up-front, and the PBX must be reconfigured to adhere to the configuration.

Network Configuration

On the network facing side, both the ISDN and eSBC style deployments have to be designed to obtain an IP address via DHCP. The definition of the IP address ranges is up to the Operator. It may or may not be NAT-ed, but it is advised to use a private IP range directly routed in the back-bone to avoid NAT.

On the customer facing side, networking is only relevant for the eSBC deployment. In order to make the IP-PBX configuration as stream-lined as possible, a pre-defined network should be established on the customer interface of the Audiocodes device.

The proposal is to define a network 192.168.255.0/24 with the Audiocodes device using the IP 192.168.255.2 (leaving the 192.168.255.1 to a possible gateway). The IP-PBX could obtain its IP address via DHCP from a DHCP server running on the Audiocodes device (e.g. serving IP addresses in the range of 192.168.255.100-254), or could have it configured manually (e.g. in the range of 192.168.255.3-99). Since the Audiocodes device IP on the customer side is always fixed at 192.168.255.2, the IP-PBX for each customer can be configured the same way, pointing the SIP proxy/registrar or outbound proxy always to this IP.

The customer facing side is outside the Sipwise demarcation line, that’s why the network configuration mentioned above only serves as proposal and any feedback is highly welcome. However, it must be communicated how the customer facing network is going to be configured, because Sipwise C5 needs to incorporate this configuration into the Audiocodes configuration templates.

Audiocodes Mediant Device Deployment Workflow

Pre-Configuration on Sipwise C5 platform

Before connecting a customer to a SIP trunk, it must be clear which Audiocodes Device Model is going to be used (depending on if, which and how many ISDN ports are necessary) and which Device Profile for the Device Model is required (eSBC mode, ISDN P-to-P or P-to-MP mode). Based on that, the correct physical device must be picked.
Next, the customer has to be created on Sipwise C5 . This step requires the creation of the customer, and the creation of a subscriber within this customer. For the subscriber, the proper E.164 numbers or number blocks must be assigned, and the correct subscriber preferences must be set for the network interface to adhere to the SipConnect 1.1 interface. This step is automated by a script provided by Sipwise until the provisioning work-flow is fully integrated with Operator’s OSS/BSS systems. Required parameters are:
- an external customer id to relate the customer entity on Sipwise C5 with a customer identifier in Operator’s IT systems
- a billing profile name
- a subscriber username and password, the domain the subscriber is configured for
- the numbers or number blocks assigned to the subscriber, and the network provided number of the subscriber
- optional information is geographic location information and IP network information to properly map emergency calls
Finally, the association between the MAC address of the Audiocodes device and the SIP subscriber to be used on the SIP trunk must be established. This step is also automated by a script provided by Sipwise. Required parameters are:
- the subscriber id
- the Device Profile to be used
- and the MAC address of the Audiocodes device

Installation

Once the above requirements are fulfilled and the customer is created on Sipwise C5 , the Audiocodes device can be installed at the customer premise.

When the Audiocodes device boots, it requests the configuration file from Sipwise C5 by issuing a GET request via HTTPS.

For authentication and authorization purposes, Sipwise C5 requests an SSL client certificate from the device and will check whether it’s signed by a Certificate Authority known to Sipwise C5 . Therefore, Audiocodes must provide the CA certificate used to sign the devices' client certificates to Sipwise to allow for this process. Also, Sipwise C5 will provide an SSL server certificate to the device. The device must validate this certificate in order to prevent man-in-the-middle attacks. Options here are to have:

Sipwise provide a self-signed certificate to Audiocodes for Audiocodes or a 3rd party distribution partner to configure it as trusted CA in the pre-staging process
the Operator provide a certificate signed by a CA which is already in the trust store of the Audiocodes devices.

Once the secured HTTPS connection is established, Sipwise C5 will provide a CLI style configuration file, with its content depending on the pre-configured Device Profile and subscriber association to the device’s MAC address.

The configuration includes the firmware version of the latest available firmware configured for the Device Model, and a URL defining from where to obtain it. The configuration details on how the Audiocodes devices manage the scheduling of firmware updates are to be provided by Audiocodes or its partners, since this is out of scope for Sipwise. Ideally, firmware updates should only be performed if the device is idle (no calls running), and within a specific time-frame (e.g. between 1 a.m. and 5 a.m. once a certain firmware version is reached, including some random variation to prevent all devices to download a new firmware version at the same time).

Device Replacement

If a customer requires the replacement of a device, e.g. due to hardware issues or due to changing the number or type of ISDN interfaces, a new association of the new device MAC, its Device Profile and the subscriber must be established.

In order to make the change as seamless as possible for the customer, a new device is created for the customer with the new MAC, a proper Device Profile, but the same subscriber as used on the old device. Once the new device boots at the customer premise, it will obtain its configuration and will register with the same subscriber as the old device (in case it’s still operational). For inbound calls to the customer, this will cause parallel ringing to take place, and it’s up to the customer or the field engineer when to re-configure or re-cable the PBX to connect to one or the other device.

Once the old device is decommissioned, the old MAC association can be deleted on Sipwise C5 .

Adjusting the PBX Devices Configuration

Usually, everything required for PBX devices autoprovisioning is uploaded automatically as described in ngcp_additional_modules:cloud-pbx-main.adoc#device-management. In case you would like to introduce changes into a PBX device configuration, create a custom PBX device profile or even upload a newer firmware, this section will help you.

The Device Management is used by admins and resellers to define the list of device models, firmwares and configurations available for end customer usage. These settings are pre-configured for the default reseller up-front by Sipwise and have to be set up for every reseller separately, so a reseller can choose the devices he’d like to serve and potentially tweak the configuration for them. List of available pre-configured devices.

End customers choose from a list of Device Profiles, which are defined by a specific Device Model, a list of Device Firmwares and a Device Configuration. The following sections describe the setup of these components.

To do so, go to Settings→Device Management.

Figure 45. Device Management

Setting up Device Models

A Device Model defines a specific hardware device, like the vendor, model name, the number of keys and their capabilities. For example a Cisco SPA504G has 4 keys, which can be used for private lines, shared lines (SLA) and busy lamp field (BLF). If you have an additional attendant console, you get 32 more buttons, which can only do BLF.

In this example, we will create a Cisco SPA504G with an additional Attendant Console.

Expand the Device Models row and click Create Device Model.

First, you have to select the reseller this device model belongs to, and define the vendor and model name.

Figure 46. Create Device Model Part 1

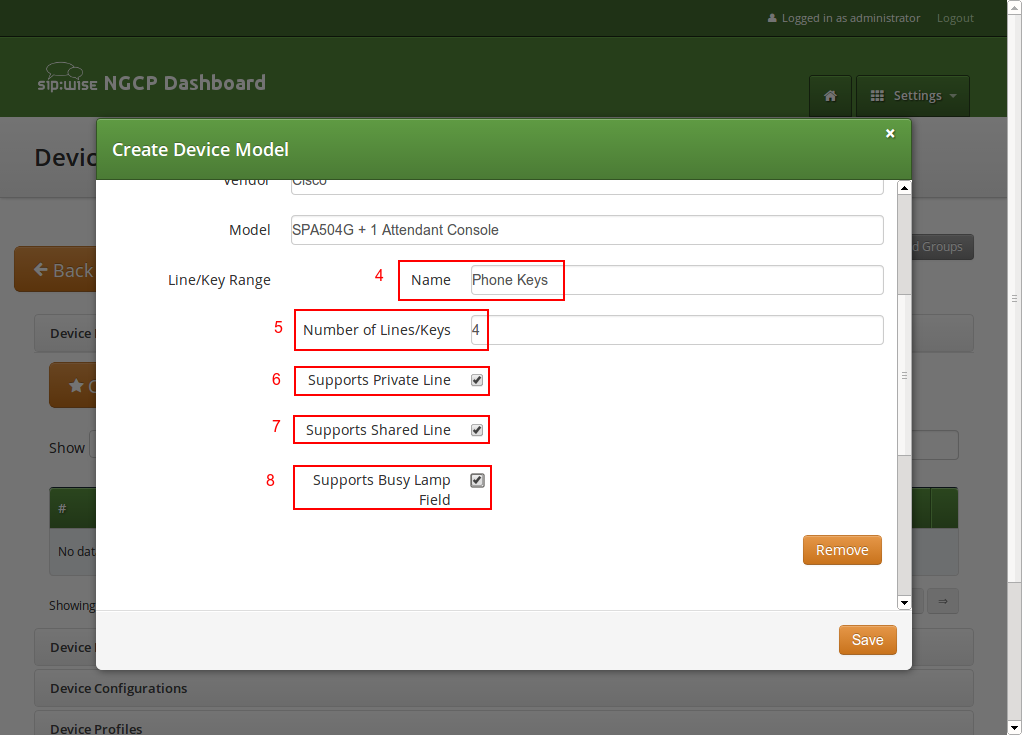

In the Line/Key Range section, you can define the first set of keys, which we will label Phone Keys. The name is important, because it is referenced in the configuration file template, which is described in the following sections. The SPA504G internal phone keys support private lines (where the customer can assign a normal subscriber, which is used to place and receive standard phone calls), shared lines (where the customer can assign a subscriber which is shared across multiple people) and busy lamp field (where the customer can assign other subscribers to be monitored when they get a call, and which also acts as speed dial button to the subscriber assigned for BLF), so we enable all 3 of them.

Figure 47. Create Device Model Part 2

In order to also configure the attendant console, press the Add another Line/Key Range button to specify the attendant console keys.

Again provide a name for this range, which will be Attendant Console 1 to match our configuration defined later. There are 32 buttons on the attendant console, so set the number accordingly. Those 32 buttons only support BLF, so make sure to uncheck the private and shared line options, and only check the busy lamp field option.

Figure 48. Create Device Model Part 3

The last two settings to configure are the Front Image and MAC Address Image fields. Upload a picture of the phone here in the first field, which is shown to the customer for him to recognize easily how the phone looks like. The MAC image is used to tell the customer where he can read the MAC address from. This could be a picture of the back of the phone with the label where the MAC is printed, or an instruction image how to get the MAC from the phone menu.

The rest of the fields are left at their default values, which are set to work with Cisco SPAs. Their meaning is as follows:

Bootstrap Sync URI: If a stock phone is plugged in for the first time, it needs to be provisioned somehow to let it know where to fetch its configuration file from. Since the stock phone doesn’t know about your server, you have to define an HTTP URI here, where the customer is connected with his web browser to set the according field.
Bootstrap Sync HTTP Method: This setting defines whether an HTTP GET or POST is sent to the Sync URI.
Bootstrap Sync Params: This setting defines the parameters appended to the Sync URI in case of a GET, or posted in the request body in case of POST, when the customer presses the Sync button later on.

Finally press Save to create the new device model.

Figure 49. Create Device Model Part 4

Uploading Device Firmwares

A device model can optionally have one or more device firmware(s). Some devices like the Cisco SPA series don’t support direct firmware updates from an arbitrary to the latest one, but need to go over specific firmware steps. In the device configuration discussed next, you can return the next supported firmware version, if the phone passes the current version in the firmware URL.

Since a stock phone purchased from any shop can have an arbitrary firmware version, we need to upload all firmwares needed to get from any old one to the latest one. In case of the Cisco SPA3x/SPA5x series, that would be the following versions, if the phone starts off with version 7.4.x:

spa50x-30x-7-5-1a.bin
spa50x-30x-7-5-2b.bin
spa50x-30x-7-5-5.bin

So to get an SPA504G with a firmware version 7.4.x to the latest version 7.5.5, we need to upload each firmware file as follows.

Open the Device Firmware row in the Device Management section and press Upload Device Firmware.

Select the device model we’re going to upload the firmware for, then specify the firmware version and choose the firmware file, then press Save.

Figure 50. Upload Device Firmware

Repeat this step for every firmware in the list above (and any new firmware you want to support when it’s available).

Creating Device Configurations

Each customer device needs a configuration file, which defines the URL to perform firmware updates, and most importantly, which defines the subscribers and features configured on each of the lines and keys. Since these settings are different for each physical phone at all the customers, the Cloud PBX module provides a template system to specify the configurations. That way, template variables can be used in the generic configuration, which are filled in by the system individually when a physical device fetches its configuration file.

To upload a configuration template, open the Device Configuration row and press Create Device Configuration.

Select the device model and specify a version number for this configuration (it is only for your reference to keep track of different versions). For Cisco SPA phones, keep the Content Type field to text/xml, since the configuration content will be served to the phone as XML file.

For devices other than the Cisco SPA, you might set text/plain if the configuration file is plain text, or application/octet-stream if the configuration is compiled into some binary form.

Finally paste the configuration template into the Content area and press Save.

Figure 51. Upload Device Configuration

The templates for certified device models are provided by Sipwise, but you can also write your own. The following variables can be used in the template:

config.url: The URL to the config file, including the device identifier (e.g. http://sip.example.org:1444/device/autoprov/config/001122334455).
config.baseurl: The URL to the config file, without the device identifier (e.g. http://sip.example.org:1444/device/autoprov/config/).
config.mac: The device MAC address.
config.filename: The requested config filename (e.g. 001122334455-firmware.xml in case the URL is http://sip.example.org:1444/device/autoprov/config/001122334455-firmware.xml).
firmware.maxversion: The latest firmware version available on the system for the specific device.
firmware.baseurl: The base URL to download firmwares (e.g. http://sip.example.org:1444/device/autoprov/firmware). To fetch the next newer firmware for a Cisco SPA, you can use the template line [% firmware.baseurl %]/$MA/from/$SWVER/next.
phone.model: The device model. It is useful for the cases of a shared/common template for several devices within the same vendor.
phone.vendor: The device vendor name. It is available for the general PBX template’s flexibility.
phone.stationname: The name of the station (physical device) the customer specifies for this phone. Can be used to show on the display of the phone.
phone.lineranges: An array of lines/keys as specified for the device model. Each entry in the array has the following keys:
- name: The name of the line/key range as specified in the Device Model section (e.g. Phone Keys).
- num_lines: The number of lines/keys in the line range (e.g. 4 in our Phone Keys example, or 32 in our Attendant Console 1 example).
- lines: An array of lines (e.g. subscriber definitions) for this line range. Each entry in the array has the following keys:
  - keynum: The index of the key in the line range, starting from 0 (e.g. keynum will be 3 for the 4th key of our Phone Keys range).
  - rangenum: The index of the line range, starting from 0. The order of line ranges is as you have specified them (e.g. Phone Keys was specified first, so it gets rangenum 0, Auto Attendant 1 gets rangenum 1).
  - type: The type of the line/key, on of private, shared or blf.
  - username: The SIP username of the line.
  - domain: The SIP domain of the line.
  - password: The SIP password of the line.
  - displayname: The SIP Display Name of the line.

In the configuration template, you can adjust embedded variable references for the existing variables. If you need other specific variables, please request their development from Sipwise.

In order to change the provisioning base IP and port (default 1444), you have to access /etc/ngcp-config/config.yml and change the value host and port under the autoprov.server section.

Creating Device Profiles

When the customer configures his own device, he doesn’t select a Device Model directly, but a Device Profile. A device profile specifies which model is going to be used with which configuration version. This allows the operator to create new configuration files and assign them to a profile, while still keeping older configuration files for reference or roll-back scenarios. It also makes it possible to test new firmwares by creating a test device model with the new firmware and a specific configuration, without impacting any existing customer devices.

To create a Device Profile for our phone, open the Device Profile row in the Device Management section and press Create Device Profile.

Select the device configuration (which implicitly identifies a device model) and specify a Profile Name. This name is what the customer sees when he is selecting a device he wants to provision, so pick a descriptive name which unambiguously identifies a device. Press Save to create the profile.

Figure 52. Create Device Profile

Repeat the steps as needed for every device you want to make available to customers.

List of available pre-configured devices

Vendor	Model	Available from release
ALE	8008	mr7.0.1.1
ALE	8018	mr7.0.1.1
ALE	8028	mr7.0.1.1
ALE	8058	mr7.0.1.1
ALE	8068	mr7.0.1.1
ALE	8078	mr7.0.1.1
ALE	AOM10	mr7.0.1.1
ALE	AOM40	mr7.0.1.1
ALE	AOMEL	mr7.0.1.1
Audiocodes	Mediant800	mr4.1.1.1
Cisco	ATA112	mr3.4.1.1
Cisco	ATA122	mr3.4.1.1
Cisco	SPA232D	mr3.4.1.1
Cisco	SPA301	mr3.4.1.1
Cisco	SPA303	mr3.4.1.1
Cisco	SPA501G	mr3.4.1.1
Cisco	SPA502G	mr3.4.1.1
Cisco	SPA512G	mr3.4.1.1
Cisco	SPA504G	mr3.4.1.1
Cisco	SPA504G + SPA500S	mr3.7.1.4
Cisco	SPA504G + two SPA500S	mr3.7.1.4
Cisco	SPA514G	mr3.4.1.1
Cisco	SPA508G	mr3.4.1.1
Cisco	SPA509G	mr3.4.1.1
Cisco	SPA525G	mr3.4.1.1
Grandstream	HT814	mr5.1.1.1
Grandstream	GXW-4008	mr5.1.1.1
Grandstream	GXW-4216	mr5.1.1.1
Innovaphone	IP2X2X	mr3.8.3.3
Innovaphone	IP230-X	mr3.8.3.3
Innovaphone	IP232	mr3.8.3.3
Innovaphone	IP222	mr3.8.3.3
Innovaphone	IP240	mr3.8.3.3
Innovaphone	IP22	mr3.8.3.3
Innovaphone	IP111	mr3.8.3.3
Panasonic	KX-UT113	mr3.7.1.1
Panasonic	KX-UT123	mr3.7.1.1
Panasonic	KX-UT133	mr3.7.1.1
Panasonic	KX-UT136	mr3.7.1.1
Panasonic	KX-UT248	mr3.7.1.1
Panasonic	KX-TGP600	mr5.1.1.1
Panasonic	KX-HDV330	mr5.1.1.1
Panasonic	KX-HDV230	mr5.1.1.1
Panasonic	KX-HDV130	mr5.1.1.1
Polycom	VVX300	mr5.4.1.1
Polycom	VVX400	mr5.4.1.1
Polycom	VVX500	mr5.4.1.1
SNOM	D715	mr9.1.1.1
SNOM	D717	mr9.1.1.1
SNOM	D735	mr9.1.1.1
SNOM	D785	mr9.1.1.1
SNOM	M900	mr9.1.1.1
SNOM	M65	mr9.1.1.1
SNOM	M70	mr9.1.1.1
SNOM	M80	mr9.1.1.1
SNOM	M85	mr9.1.1.1
SNOM	M90	mr9.1.1.1
SNOM	A190 (no uaCSTA)	mr9.1.1.1
Yealink	CP860	mr5.2.1.1
Yealink	SIP-T19P	mr3.7.1.1
Yealink	SIP-T20P	mr3.7.1.1
Yealink	SIP-T21P	mr3.7.1.1
Yealink	SIP-T22P	mr3.7.1.1
Yealink	SIP-T23P	mr3.7.1.1
Yealink	SIP-T23G	mr3.7.1.1
Yealink	SIP-T26P	mr3.7.1.1
Yealink	SIP-T28P	mr3.7.1.1
Yealink	SIP-T28P + EXP39	mr3.8.1.1
Yealink	SIP-T28P + two EXP39	mr3.8.1.1
Yealink	SIP-T32G	mr3.7.1.1
Yealink	SIP-T38G	mr3.7.1.1
Yealink	SIP-T41P	mr3.7.1.1
Yealink	SIP-T42G	mr3.7.1.1
Yealink	SIP-T46G	mr3.7.1.1
Yealink	SIP-T48G	mr3.7.1.1
Yealink	SIP-T53	mr8.5.1.1
Yealink	SIP-T54W	mr8.5.1.1
Yealink	SIP-T57W	mr8.5.1.1
Yealink	W52P	mr3.7.1.6

Vendor

Model

Available from release

ALE

8008

mr7.0.1.1

ALE

8018

mr7.0.1.1

ALE

8028

mr7.0.1.1

ALE

8058

mr7.0.1.1

ALE

8068

mr7.0.1.1

ALE

8078

mr7.0.1.1

ALE

AOM10

mr7.0.1.1

ALE

AOM40

mr7.0.1.1

ALE

AOMEL

mr7.0.1.1

Audiocodes

Mediant800

mr4.1.1.1

Cisco

ATA112

mr3.4.1.1

Cisco

ATA122

mr3.4.1.1

Cisco

SPA232D

mr3.4.1.1

Cisco

SPA301

mr3.4.1.1

Cisco

SPA303

mr3.4.1.1

Cisco

SPA501G

mr3.4.1.1

Cisco

SPA502G

mr3.4.1.1

Cisco

SPA512G

mr3.4.1.1

Cisco

SPA504G

mr3.4.1.1

Cisco

SPA504G + SPA500S

mr3.7.1.4

Cisco

SPA504G + two SPA500S

mr3.7.1.4

Cisco

SPA514G

mr3.4.1.1

Cisco

SPA508G

mr3.4.1.1

Cisco

SPA509G

mr3.4.1.1

Cisco

SPA525G

mr3.4.1.1

Grandstream

HT814

mr5.1.1.1

Grandstream

GXW-4008

mr5.1.1.1

Grandstream

GXW-4216

mr5.1.1.1

Innovaphone

IP2X2X

mr3.8.3.3

Innovaphone

IP230-X

mr3.8.3.3

Innovaphone

IP232

mr3.8.3.3

Innovaphone

IP222

mr3.8.3.3

Innovaphone

IP240

mr3.8.3.3

Innovaphone

IP22

mr3.8.3.3

Innovaphone

IP111

mr3.8.3.3

Panasonic

KX-UT113

mr3.7.1.1

Panasonic

KX-UT123

mr3.7.1.1

Panasonic

KX-UT133

mr3.7.1.1

Panasonic

KX-UT136

mr3.7.1.1

Panasonic

KX-UT248

mr3.7.1.1

Panasonic

KX-TGP600

mr5.1.1.1

Panasonic

KX-HDV330

mr5.1.1.1

Panasonic

KX-HDV230

mr5.1.1.1

Panasonic

KX-HDV130

mr5.1.1.1

Polycom

VVX300

mr5.4.1.1

Polycom

VVX400

mr5.4.1.1

Polycom

VVX500

mr5.4.1.1

SNOM

D715

mr9.1.1.1

SNOM

D717

mr9.1.1.1

SNOM

D735

mr9.1.1.1

SNOM

D785

mr9.1.1.1

SNOM

M900

mr9.1.1.1

SNOM

M65

mr9.1.1.1

SNOM

M70

mr9.1.1.1

SNOM

M80

mr9.1.1.1

SNOM

M85

mr9.1.1.1

SNOM

M90

mr9.1.1.1

SNOM

A190 (no uaCSTA)

mr9.1.1.1

Yealink

CP860

mr5.2.1.1

Yealink

SIP-T19P

mr3.7.1.1

Yealink

SIP-T20P

mr3.7.1.1

Yealink

SIP-T21P

mr3.7.1.1

Yealink

SIP-T22P

mr3.7.1.1

Yealink

SIP-T23P

mr3.7.1.1

Yealink

SIP-T23G

mr3.7.1.1

Yealink

SIP-T26P

mr3.7.1.1

Yealink

SIP-T28P

mr3.7.1.1

Yealink

SIP-T28P + EXP39

mr3.8.1.1

Yealink

SIP-T28P + two EXP39

mr3.8.1.1

Yealink

SIP-T32G

mr3.7.1.1

Yealink

SIP-T38G

mr3.7.1.1

Yealink

SIP-T41P

mr3.7.1.1

Yealink

SIP-T42G

mr3.7.1.1

Yealink

SIP-T46G

mr3.7.1.1

Yealink

SIP-T48G

mr3.7.1.1

Yealink

SIP-T53

mr8.5.1.1

Yealink

SIP-T54W

mr8.5.1.1

Yealink

SIP-T57W

mr8.5.1.1

Yealink

W52P

mr3.7.1.6

Alcatel-Lucent Enterprise (ALE) Devices

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Speed Dial	Extension Boards
8008	Y	Y	Y	redirect	1	0	0	N	N
8018	Y	Y	Y	redirect	1	0	0	N	N
8028	Y	Y	Y	redirect	1	0	0	N	N
8058	Y	Y	Y	redirect	1	1	1	N	Y
8068	Y	Y	Y	redirect	1	1	1	N	Y
8078	Y	Y	Y	redirect	1	1	1	N	Y
AOM10	N	N	N	device	1	0	1	Y	Y
AOM40	N	N	N	device	1	0	1	Y	Y
AOMEL	N	N	N	device	1	0	1	Y	Y

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Speed Dial

Extension Boards

8008

redirect

8018

redirect

8028

redirect

8058

redirect

8068

redirect

8078

redirect

AOM10

device

AOM40

device

AOMEL

device

Audiocodes Devices

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Speed Dial
Mediant800	Y	Y	Y	dhcp	1	0	0	N

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Speed Dial

Mediant800

dhcp

Cisco Devices

IP Phones

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Extension Boards
SPA301	N	Y	Y	http	1	1	0	N
SPA303	N	Y	Y	http	1-3	1-3	1-2	N
SPA501G	N	Y	Y	http	1-8	1-8	1-7	N
SPA502G	N	Y	Y	http	1	1	0	N
SPA512G	N	N	Y	http	1	1	0	N
SPA504G	N	Y	Y	http	1-4	1-4	1-3	2
SPA514G	N	N	Y	http	1-4	1-4	1-3	N
SPA508G	N	Y	Y	http	1-8	1-8	1-7	N
SPA509G	N	Y	Y	http	1-12	1-12	1-11	N
SPA525G	N	Y	N	http	1-5	1-5	1-4	N

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Extension Boards

SPA301

http

SPA303

http

1-3

1-2

SPA501G

http

1-8

1-7

SPA502G

http

SPA512G

http

SPA504G

http

1-4

1-3

SPA514G

http

1-4

1-3

SPA508G

http

1-8

1-7

SPA509G

http

1-12

1-11

SPA525G

http

1-5

1-4

Analog Adapters

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line
SPA232D	N	Y	Y	http	1-6
ATA112	Y	Y	Y	http	1-2
ATA122	Y	Y	Y	http	1-2

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

SPA232D

http

1-6

ATA112

http

1-2

ATA122

http

1-2

Extension Boards

Model	Ports	Buttons	Busy Lamp	Supported phones
SPA500S	2	32	1-32	SPA500

Model

Ports

Buttons

Busy Lamp

Supported phones

SPA500S

1-32

SPA500

Grandstream Devices

Analog Adapters

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp
HT814	N	Y	Y	redirect	4	N	N
GXW-4008	N	Y	Y	redirect	8	N	N
GXW-4216	N	Y	Y	redirect	16	N	N

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

HT814

redirect

GXW-4008

redirect

GXW-4216

redirect

Innovaphone Devices

IP Phones

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Busy Lamp	Extension Boards
IP232	N	Y	Y	dhcp	1	1-16	2
IP222	N	Y	Y	dhcp	1	1-16	2
IP240	N	N	N	dhcp	1	1-15	2
IP111	N	Y	Y	dhcp	1	1-16	0

Analog Adapters

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp
IP22	N	Y	Y	dhcp	1	0	0

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

IP22

dhcp

Extension Boards

Model	Ports	Buttons	Busy Lamp	Supported phones
IP2X2X	2	64	1-32	IP2x2
IP230-X	2	30	1-30	IP230

Panasonic Devices

IP Phones

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Extension Boards
KX-UT113	N	N	N	redirect	1-2	1-2	0	N
KX-UT123	N	N	N	redirect	1-2	1-2	0	N
KX-UT133	N	N	N	redirect	1-4	1-4	1-23	N
KX-UT136	N	N	N	redirect	1-4	1-4	1-23	N
KX-UT248	N	N	Y	redirect	1-6	1-6	1-23	N
KX-TGP600	Y	Y	Y	redirect	1-8	N	N	N
KX-HDV330	Y	Y	Y	redirect	1-12	Y	Y	N
KX-HDV230	Y	Y	Y	redirect	1-6	Y	Y	N
KX-HDV130	Y	Y	Y	redirect	1-2	Y	Y	N

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Extension Boards

KX-UT113

redirect

1-2

KX-UT123

redirect

1-2

KX-UT133

redirect

1-4

1-23

KX-UT136

redirect

1-4

1-23

KX-UT248

redirect

1-6

1-23

KX-TGP600

redirect

1-8

KX-HDV330

redirect

1-12

KX-HDV230

redirect

1-6

KX-HDV130

redirect

1-2

Polycom Devices

IP Phones

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Extension Boards
VVX300	N	N	Y	redirect	1-6	1-6	Y	N
VVX400	N	N	Y	redirect	1-12	1-12	Y	N
VVX500	N	N	Y	redirect	1-12	1-12	Y	N

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Extension Boards

VVX300

redirect

1-6

VVX400

redirect

1-12

VVX500

redirect

1-12

SNOM Devices

IP Phones

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Extension Boards
D715	Y	Y	Y	redirect	1-4	N	Y	Y
D717	Y	Y	Y	redirect	1-6	N	Y	Y
D735	Y	Y	Y	redirect	1-12	N	Y	Y
D785	Y	Y	Y	redirect	1-12	N	Y	Y

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Extension Boards

D715

redirect

1-4

D717

redirect

1-6

D735

redirect

1-12

D785

redirect

1-12

Base Stations

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Extension Boards
M900	Y	Y	Y	redirect	1-4	N	N	N

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Extension Boards

M900

redirect

1-4

Handsets and Headsets

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Extension Boards
M65	Y	Y	Y	redirect	1	N	N	N
M70	Y	Y	Y	redirect	1	N	N	N
M80	Y	Y	Y	redirect	1	N	N	N
M85	Y	Y	Y	redirect	1	N	N	N
M90	Y	Y	Y	redirect	1	N	N	N
A190	Y	Y	Y	redirect	1	N	N	N

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Extension Boards

M65

redirect

M70

redirect

M80

redirect

M85

redirect

M90

redirect

A190

redirect

Yealink Devices

IP Phones

Model	IPv6	TLS	SRTP	Auto provisioning	Private Line	Shared Line	Busy Lamp	Extension Boards
CP860	Y	Y	Y	redirect	1	N	N	N
SIP-T19P	Y	Y	Y	redirect	1	1	0	N
SIP-T20P	Y	Y	Y	redirect	1	1	0	N
SIP-T21P	Y	Y	Y	redirect	1-2	1-2	1	N
SIP-T22P	Y	Y	Y	redirect	1-3	1-3	1-2	N
SIP-T23P	Y	Y	Y	redirect	1-3	1-3	1-2	N
SIP-T23G	Y	Y	Y	redirect	1-3	1-3	1-2	N
SIP-T26P	Y	Y	Y	redirect	1-3	1-3	1-12	N
SIP-T28P	Y	Y	Y	redirect	1-6	1-6	1-15	2
SIP-T32G	Y	Y	Y	redirect	1-3	1-3	1-2	N
SIP-T38G	Y	Y	Y	redirect	1-6	1-6	1-15	N
SIP-T41P	Y	Y	Y	redirect	1-3	1-3	1-14	N
SIP-T42G	Y	Y	Y	redirect	1-3	1-3	1-14	N
SIP-T46G	Y	Y	Y	redirect	1-6	1-6	1-26	N
SIP-T48G	Y	Y	Y	redirect	1-6	1-6	1-28	N
W52P	N	Y	Y	redirect	1-5	1-5	0	N

Model

IPv6

TLS

SRTP

Auto provisioning

Private Line

Shared Line

Busy Lamp

Extension Boards

CP860

redirect

SIP-T19P

redirect

SIP-T20P

redirect

SIP-T21P

redirect

1-2

SIP-T22P

redirect

1-3

1-2

SIP-T23P

redirect

1-3

1-2

SIP-T23G

redirect

1-3

1-2

SIP-T26P

redirect

1-3

1-12

SIP-T28P

redirect

1-6

1-15

SIP-T32G

redirect

1-3

1-2

SIP-T38G

redirect

1-6

1-15

SIP-T41P

redirect

1-3

1-14

SIP-T42G

redirect

1-3

1-14

SIP-T46G

redirect

1-6

1-26

SIP-T48G

redirect

1-6

1-28

W52P

redirect

1-5

Phone features

Cisco phones

SPA301

1) Soft keys

Not available.

2) Hard keys

vm
hold/unhold

3) Line keys

Not available.

4) VSC

directed pickup
park/unpark

SPA303

1) Soft keys

Idle:

redial

lcr

dir

dnd >

< cfwd

unpark

Idle with missed calls:

lcr

miss

Call:

hold

endCall

conf

xfer >

< bxfer

park

Call on hold:

resume

endCall

newCall

redial >

< dir

cfwd

dnd

Ringing:

answer

ignore

2) Hard keys

vm
hold/unhold

3) Line keys

BLF monitoring
directed pickup

4) VSC

directed pickup

SPA501G

1) Soft keys

Idle:

redial

lcr

dir

dnd >

< cfwd

unpark

Idle with missed calls:

lcr

miss

Call:

hold/resume

endCall

conf

xfer >

< bxfer

park

Call on hold:

resume

endCall

newCall

redial >

< dir

cfwd

dnd

Ringing:

answer

reject

2) Hard keys

vm
hold/unhold

3) Line keys

BLF monitoring
directed pickup

4) VSC

directed pickup

SPA502G

1) Soft keys

Idle:

redial

lcr

dir

dnd >

< cfwd

unpark

Idle with missed calls:

lcr

miss

Call:

hold/resume

endCall

conf

xfer >

< bxfer

park

Call on hold:

resume

endCall

newCall

redial >

< dir

cfwd

dnd

Ringing:

answer

reject

2) Hard keys

vm
hold/unhold

3) Line keys

Not available.

4) VSC

directed pickup

SPA504G

1) Soft keys

Idle:

redial

lcr

dir

dnd >

< cfwd

unpark

Idle with missed calls:

lcr

miss

Call:

hold/resume

endCall

conf

xfer >

< bxfer

park

Call on hold:

resume

endCall

newCall

redial >

< dir

cfwd

dnd

Ringing:

answer

reject

2) Hard keys

vm
hold/unhold

3) Line keys

BLF monitoring
directed pickup

4) VSC

directed pickup

SPA512G

1) Soft keys

Idle:

redial

lcr

dir

dnd >

< cfwd

unpark

Idle with missed calls:

lcr

miss

Call:

hold/resume

endCall

conf

xfer >

< bxfer

park

Call on hold:

resume

endCall

newCall

redial >

< dir

cfwd

dnd

Ringing:

answer

reject

2) Hard keys

vm
hold/unhold

3) Line keys

Not available.

4) VSC

directed pickup

SPA514G

1) Soft keys

Idle:

redial

lcr

dir

dnd >

< cfwd

unpark

Idle with missed calls:

lcr

miss

Call:

hold/resume

endCall

conf

xfer >

< bxfer

park

Call on hold:

resume

endCall

newCall

redial >

< dir

cfwd

dnd

Ringing:

answer

reject

2) Hard keys

vm
hold/unhold

3) Line keys

BLF monitoring
directed pickup

4) VSC

directed pickup

SPA509G

1) Soft keys

Idle:

redial

lcr

dir

dnd >

< cfwd

unpark

Idle with missed calls:

lcr

miss

Call:

hold/resume

endCall

conf

xfer >

< bxfer

park

Call on hold:

resume

endCall

newCall

redial >

< dir

cfwd

dnd

Ringing:

answer

reject

2) Hard keys

vm
hold/unhold

3) Line keys

BLF monitoring
directed pickup

4) VSC

directed pickup

SPA508G

1) Soft keys

Idle:

redial

lcr

dir

dnd >

< cfwd

unpark

Idle with missed calls:

lcr

miss

Call:

hold/resume

endCall

conf

xfer >

< bxfer

park

Call on hold:

resume

endCall

newCall

redial >

< dir

cfwd

dnd

Ringing:

answer

reject

2) Hard keys

vm
hold/unhold

3) Line keys

BLF monitoring
directed pickup

4) VSC

directed pickup

SPA525G

1) Soft keys

Idle:

Redial

call Rtn

Yealink phones

T19P

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

Not available.

4) VSC

transfer park
directed pick up
park/unpark

T20P

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

transfer park
park/unpark

T21P

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

transfer park
park/unpark

T22P

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

T23P

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

T23G

1) Soft keys

Idle:

History

Dir

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

EndCall

Call on hold:

Tran

Resume

NewCall

EndCall

Ringing:

Answer

FWD

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

unpark
transfer park

T26P

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

unpark
transfer park

T28P

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

T32G

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

unpark
transfer park

T38G

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

unpark
transfer park

T41P

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

T42G

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

T46G

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

T48G

1) Soft keys

Idle:

History

DND

Idle with missed calls:

Exit

View

Call:

Tran

Hold

Conf

Cancel

Call on hold:

Tran

Resume

NewCall

Cancel

Ringing:

Answer

FWD

Silence

Reject

2) Hard keys

vm
redial
transfer

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

W52P

1) Soft keys

Idle:

History

Line

Idle with missed calls:

Exit

View

Call:

Ext. Call

Options

Call on hold:

Resume

Line

Ringing:

2) Hard keys

vm
redirect

3) VSC

park/unpark
transfer park

Panasonic phones

KX-UT113

1) Soft keys

Idle:

Settings

Call Log

Phone book

Call:

Blind

Phone book

Call on hold:

Call Log

Phone book

Ringing:

Answer

Reject

2) Hard keys

vm
forward/dnd
hold/unhold
redial
recall
transfer
conf

3) Line keys

Not available.

4) VSC

park/unpark
transfer park

KX-UT123

1) Soft keys

Idle:

Settings

Call Log

Phone book

Call:

Blind

Phone book

Call on hold:

Call Log

Phone book

Ringing:

Answer

Reject

2) Hard keys

vm
forward/dnd
hold/unhold
redial
recall
transfer
conf

3) Line keys

Not available.

4) VSC

park/unpark
transfer park

KX-UT133

1) Soft keys

Idle:

Settings

Call Log

Phone book

Call:

Blind

Phone book

Call on hold:

Call Log

Phone book

Ringing:

Answer

Reject

2) Hard keys

vm
forward/dnd
hold/unhold
redial
recall
transfer
conf

3) Line keys

BLF monitoring
directed pickup

4) VSC

unpark
transfer park

KX-UT136

1) Soft keys

Idle:

Settings

Call Log

Phone book

Call:

Blind

Phone book

Call on hold:

Call Log

Phone book

Ringing:

Answer

Reject

2) Hard keys

vm
forward/dnd
hold/unhold
redial
recall
transfer
conf

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

KX-UT248

1) Soft keys

Idle:

Settings

Call Log

Phone book

Call:

Blind

Phone book

Call on hold:

Call Log

Phone book

Ringing:

Answer

Reject

2) Hard keys

vm
forward/dnd
hold/unhold
redial
recall
transfer
conf

3) Line keys

BLF monitoring
directed pickup

4) VSC

park/unpark
transfer park

Innovaphone

IP222

1) Soft keys

Idle:

Setup

All Calls

Home

Calls

My favorites

Phonebook

Call:

Hold

Transfer

Park

Cancel

Call on hold:

Resume

Transfer

Park

Cancel

Ringing:

Answer

Transfer

Silence

Reject

2) Hard keys

hold
redial

3) Line keys

BLF monitoring

4) VSC

unpark
transfer park

IP232

1) Soft keys

Idle:

Setup

All Calls

Home

Calls

My favorites

Phonebook

Call:

Hold

Transfer

Park

Cancel

Call on hold:

Resume

Transfer

Park

Cancel

Ringing:

Answer

Transfer

Silence

Reject

2) Hard keys

hold
redial

3) Line keys

BLF monitoring

4) VSC

unpark
transfer park

IP111

1) Soft keys

Idle:

Setup

All Calls

Home

Calls

My favorites

Phonebook

Call:

Hold

Transfer

Park

Cancel

Call on hold:

Resume

Transfer

Park

Cancel

Ringing:

Answer

Transfer

Silence

Reject

2) Hard keys

hold
redial

3) Line keys

BLF monitoring

4) VSC

unpark
transfer park

IP240

1) Soft keys

Not available.

2) Hard keys

hold
redial
conference
dnd
forward

3) Line keys

BLF monitoring

4) VSC

transfer park
unpark

Shared line appearance

In PBX environment, shared line appearance is supported for PBX subscribers. In comparison to the private line, subscriber registering for the shared line will, immediately after the successful registration, subscribe for Call-Info event. This subscribe is challenged for authentication and if the credentials are provided, subscriber is notified that the subscription is active. In the respective NOTIFY message, this is reflected in Subscription-State header set to active. NOTIFY also contains information about the status of the shared line in Call-Info header. If the appearance is not used, Call-Info header will describe the state as idle. In the NOTIFY message, this is reflected as “appearance-index=*;appearance-state=idle”.

If there is incoming call to the subscriber, the appearance index is created after the call is accepted and state will be set to active. Call-Info header will contain “appearance-index=1; appearance-state=active”. After call is finished and appearance is not used elsewhere, appearance index is removed and state is set to idle. In the case of outgoing call, subscription to line-seize event is required to be able to dial. Before dialing can be started, SUBSCRIBE to line-seize is sent. Consequently, subscriber receives NOTIFY for line-seize with active subscription state. Call-info subscription is updated accordingly, appearance is created and its state is set to seized. As soon as the call starts ringing, Call-Info status is updated to progressing and line-seize subscription is set to terminated with “reason=noresource” in Subscription-State header. When the call is accepted, Call-Info status is changed to active and set again to idle when call is finished. Also, the appearance index is removed.

Sipwise sip:phone App (SIP client)

Sipwise provides a commercial Unified Communication Client for full end-to-end integration of voice, video, chat and presence features. The application is called sip:phone and is a mobile app for iOS and Android.

The clients are fully brandable to the customer’s corporate identity. They are not part of the standard delivery and need to be licensed separately. This handbook discusses the mobile client in details.

Zero Config Launcher

Part of the mobile apps is a mechanism to sign up to the service via a 3rd party website, which is initiated on the login screen and rendered within the app. During the sign-up process, the 3rd party service is supposed to create a new account and subscriber in Sipwise C5 (e.g. automatically via the API) and provide the end user with the access credentials.

The mobile apps come with a zero config mechanism to simplify the end-customer log in using these credentials (especially ruling out the need to manually enter them). It makes it possible to deliver the access credentials via a side channel (e.g. Email, SMS) packed into a URL. The user only clicks the URL, and it automatically launches the app with the correct credentials. The following picture shows the overall workflow.

Figure 53. Provisioning Push Workflow

There are two components provided by a 3rd party system. One is the 3rd Party Sign-Up Form, and the other is the 3rd Party Launch Handler. The purpose of these components is to allow an end customer to open a link with the access credentials via the sip:phone app.

3rd Party Sign-Up Form

The 3rd Party Sign-Up Form is a website the app shows to the end user when he taps the sign-up link on the app Login Screen. There, the end customer usually provides his contact details like name, address, phone number and email address, etc. After validation, the website creates an account and a subscriber in Sipwise C5 via the API.

After successfully creating the account and the subscriber, this site needs to construct a specially crafted URL, which is sent back to the end customer via a side channel. Ideally, this channel would be an SMS if you want to verify the end customer’s mobile number, or an email if you want to check the email address.

The sip:phone app registers a URL schema handler for URLs starting with sipphone://. If you start such a link, the app performs a Base64 decoding of the string right after the sipphone:// prefix and then decrypts the resulting binary string via AES using the keys defined during the branding step. The resulting string is supposed to be

username=$user&server=$domain&password=$password&fsurl=$fsurl&fsttl=$fsttl&country=$country.

Therefore, the 3rd Party Sign-Up Form needs to construct this string using the credentials defined while creating the subscriber via Sipwise C5 API, then encrypt it via AES, and finally perform a Base64 encoding of the result.

The parameters of the string are as follows:

username: The SIP username for the login (e.g. testuser)
password: The SIP password for the login (e.g. testpass)
server: The server string containing either the IP address or a domain resolving via DNS SRV or A records to the load-balancer IP of the deployment (e.g. sip.example.org)
fsurl: The filesharing URL for the apps to upload data (e.g. https://sip.example.org:1446/rtc/fileshare/uploads)
fsttl: The number of seconds a shared file is valid by default (e.g. 1209600 for 14 days)
country: The ISO country code for the app to normalize phone numbers (e.g. de for Germany)

An example Perl code performs encoding of such a string. The AES key and initialization vector ($key and $iv) are the standard values of the sip:phone app and should work until you specified other values during the branding process.

#!/usr/bin/perl -w
use strict;
use Crypt::Rijndael;
use MIME::Base64;
use URI::Escape;

my $key = 'iBmTdavJ8joPW3HO';
my $iv = 'tww21lQe6cmywrp3';

my $plain = do { local $/; <> };
# pkcs#5 padding to 16 bytes blocksize
my $pad = 16 - (length $plain) % 16;
$plain .= pack('C', $pad) x $pad;

my $cipher = Crypt::Rijndael->new(
        $key,
        Crypt::Rijndael::MODE_CBC()
);
$cipher->set_iv($iv);
my $encrypted = $cipher->encrypt($plain);
# store b64-encoded string and print to STDOUT
my $b64 = encode_base64($encrypted, '');
print $b64, "\n";
# print to STDOUT using URL escaping also
print uri_escape($b64), "\n";

This snippet takes a string from STDIN, encrypts it via AES, encodes it via Base64 and sends the result to STDOUT. It also writes the second line with the same string, but this time, the URL is escaped. To test it, you would run it as follows on a shell, granted it’s stored at /path/to/encrypt.pl.

echo -n 'username=testuser&server=example.org&password=testpass&fsurl=https://example.org:1446/rtc/fileshare/uploads&fsttl=3600&country=at' \
  | /path/to/encrypt.pl

This command would result in the output strings like CI8VN8toaE40w8E4OH2rAuFj3Qev9QdLI/Wv/VaBCVK2yNkBZjxE9eafXkkrQfmYdeu01PquS5P40zhUq8Mfjg== and like CI8VN8toaE40w8E4OH2rAuFj3Qev9QdLI%2FWv%2FVaBCVK2yNkBZjxE9eafXkkrQfmYdeu01PquS5P40zhUq8Mfjg%3D%3D. The sip:phone can use the former string to automatically fill in the login form of the Login Screen if started via a Link like sipphone://CI8VN8toaE40w8E4OH2rAuFj3Qev9QdLI/Wv/VaBCVK2yNkBZjxE9eafXkkrQfmYdeu01PquS5P40zhUq8Mfjg==.

Here is the same code in PHP.

#!/usr/bin/php
<?php
$key = "iBmTdavJ8joPW3HO";
$iv = "tww21lQe6cmywrp3";

$clear = fgets(STDIN);
$cipher = fnEncrypt($clear, $key, $iv);

echo $cipher, "\n";
echo urlencode($cipher), "\n";

function fnEncrypt($clear, $key, $iv) {
        $pad = 16 - strlen($clear) % 16;
        $clear .= str_repeat(pack('C', $pad), $pad);
        return rtrim(base64_encode(mcrypt_encrypt(
                MCRYPT_RIJNDAEL_128, $key, $clear,
                MCRYPT_MODE_CBC, $iv)), "\0");
}
?>

Similar to the Perl code, you can call it like this:

echo -n 'username=testuser&server=example.org&password=testpass&fsurl=https://example.org:1446/rtc/fileshare/uploads&fsttl=3600&country=at' \
  | /path/to/encrypt.php

However, a URL with the sipphone:// schema is not displayed as a link in an SMS or an Email client and thus can not be clicked by the end customer, so you need to make a detour via a regular http:// URL. To do so, you need a 3rd Party Launch Handler to trick the phone to open such a link.

Therefore, that the 3rd Party Sign-Up Form needs to return a link containing a URL pointing to the 3rd Party Launch Handler and pass the URL escaped string gathered above to the client via an SMS or an Email. Since it is the regular http:// link, it is clickable on the phone and can be launched from virtually any client (SMS, Email, etc.), which correctly renders an HTML link.

A possible SMS sent to the end customer (via the phone number entered in the sign-up from) could, therefore, look as follows (trying to stay below 140 chars).

http://example.org/p?c=CI8VN8toaE40w8E4OH2rAuFj3Qev9QdLI
%2FWv%2FVaBCVK2yNkBZjxE9eafXkkrQfmYdeu01PquS5P40zhUq8Mfjg%3D%3D to launch sipphone

An HTML Email could look like this:

Welcome to Example.org,
<a href="http://www.example.org/sipphone?c=CI8VN8toaE40w8E4OH2rAuFj3Qev9QdLI
%2FWv%2FVaBCVK2yNkBZjxE9eafXkkrQfmYdeu01PquS5P40zhUq8Mfjg%3D%3D">
click here
</a> to log in.

That way, you can do both: verify the contact details of the end customer, and send the end customer the login credentials in a secure manner.

3rd Party Launch Handler

The URL http://www.example.org/sipphone mentioned above can be any simple script, and its sole purpose is to send back a 301 Moved Permanently or 302 Moved Temporarily with a Location: sipphone://xxxxxxxxxxxx header to tell the phone to open this link via the sip:phone app. The xxxxxxxxxxxx is the plain (non-URL-escaped) string generated by the above script.

An example CGI script performing this task follows.

#!/usr/bin/perl -w
use strict;
use CGI;

my $q = CGI->new;
my $c = $q->param('c');
print CGI::redirect("sipphone://$c");

The script takes the URL parameter c from the URL http://www.example.org/sipphone?c=CI8VN8toaE40w8E4OH2rAuFj3Qev9QdLI%2FWv%2FVaBCVK2yNkBZjxE9eafXkkrQfmYdeu01PquS5P40zhUq8Mfjg%3D%3D crafted above and puts its content into a Location header using the sipphone:// schema, and finally sends a 301 Moved Permanently back to the phone.

The phone follows the redirect by opening the URL using the sip:phone app, which in turn decrypts the content and fills in the login form.

Future versions of Sipwise C5 will be shipped with this launch handler integrated into the system. Up until and including the version mr9.5.2, this script needs to be installed on any webserver manually.

Mobile Push Notification

The mobile push functionality provides the remote start of a mobile application on incoming calls via the Google FCM or the Apple APNS notification services. It enables you to offer your subscribers a modern and convenient service on mobile devices.

Although suspending an application on a phone and waking it up via the mobile push notification service extends battery life, the whole mobile push notification concept is the best effort framework provided by Apple and Google for iOS and Android respectively, and therefore does not guarantee 100% reliability.

Architecture

If the mobile push functionality is enabled and there are no devices registered for a subscriber, the call-flow looks as follows.

Figure 54. Mobile Push Workflow

The caller sends INVITE to proxy
The callee is offline, proxy forwards the call to AS (application server)
AS subscribes to the callee’s registration events on proxy
AS sends early media to the caller as a feedback, as the call initiation process might take a while
AS sends the push request to FCM/APNS service
FCM/APNS service delivers the push request to the callee
The callee accepts the push request and confirms the mobile application start (unattended on Android), then the mobile application registers to proxy
Proxy sends registration notification to AS
AS deflects the call back to proxy
Proxy sends INVITE to the callee
The callee accepts the call
The response is sent back to the caller. Hence, the call setup is completed

In the case of a time-out (no registration notification within a particular time), the application server rejects the call request with an error.

The Configuration Checklist

Follow this checklist to make sure you’ve completed all the steps. If you miss anything, the service may not work as expected.

Name

Description

Link

Obtain a trusted SSL certificate from a CA

Required for either application

Obtain the Trusted SSL Certificate

Create an Apple developer account and enable the push notification service

For iOS mobile application

Create an Apple Account and Enable the Push Notification Service

Obtain the Apple certificate for the app

For iOS mobile application

Obtain an Apple SSL Certificate and a Private Key

Obtain the API key for the app from Google

For Android mobile application

Obtain the API Key for the App from Google

Provide the required information to developers

It is required to make beta builds and publish the apps

Provide the Required Information to Developers

Adjust the configuration

Adjust the config.yml file and apply the changes (usually performed by Sipwise)

Adjust Sipwise C5 Configuration (Usually Performed by Sipwise)

Recheck your DNS Zone configuration

Check that the DNS Zone is correctly configured

Recheck Your DNS Zone Configuration

Add DNS SRV records

Create specific DNS SRV records for SIP and XMPP services

Add SRV Records to DNS

Check NTP configuration

Ensure that all your servers show exact time

Check NTP Configuration

Enable Apple/Google Mobile Push in the Admin Panel

It can be enabled for a domain or separate subscribers

Enable Apple/Google Mobile Push

Configure a mobile application

Check that subscribers can easily install and use your application

Perform Tests

Obtain the Trusted SSL Certificate

A trusted SSL certificate is required, and we suggest obtaining it before starting the configuration.

The mobile application uses respective iOS/Android libraries to establish a secure TLS connection with certain Sipwise C5 services, such as SIP/XMPP/pushd(https). A signed SSL certificate is required to guarantee the security of this connection.

Any Certificate Authority (CA) such as Verisign and others can provide you with the required trusted SSL certificate (a certificate and the key files) which you will use in the configuration below.

Create an Apple Account and Enable the Push Notification Service

Below is a brief instruction on how to create an Apple account and enable the Push Notification Service in it. You may need to perform additional steps depending on your project.

You may only create an Apple account (step 1 below) and enroll into the Apple Developer Program (step 2 below) and Sipwise developers will do the rest. Still, you can perform all the steps by yourself.

Create an Apple developer account to get the Apple ID for your company. For this, go to https://developer.apple.com/account
Enroll in the Apple Developer Program. It is required to configure push notifications as you will need a push notification certificate for your App ID, which requires the Apple Developer Program membership. Go to https://developer.apple.com/programs for more details.
Register an App ID:
- Sign into https://developer.apple.com/account.

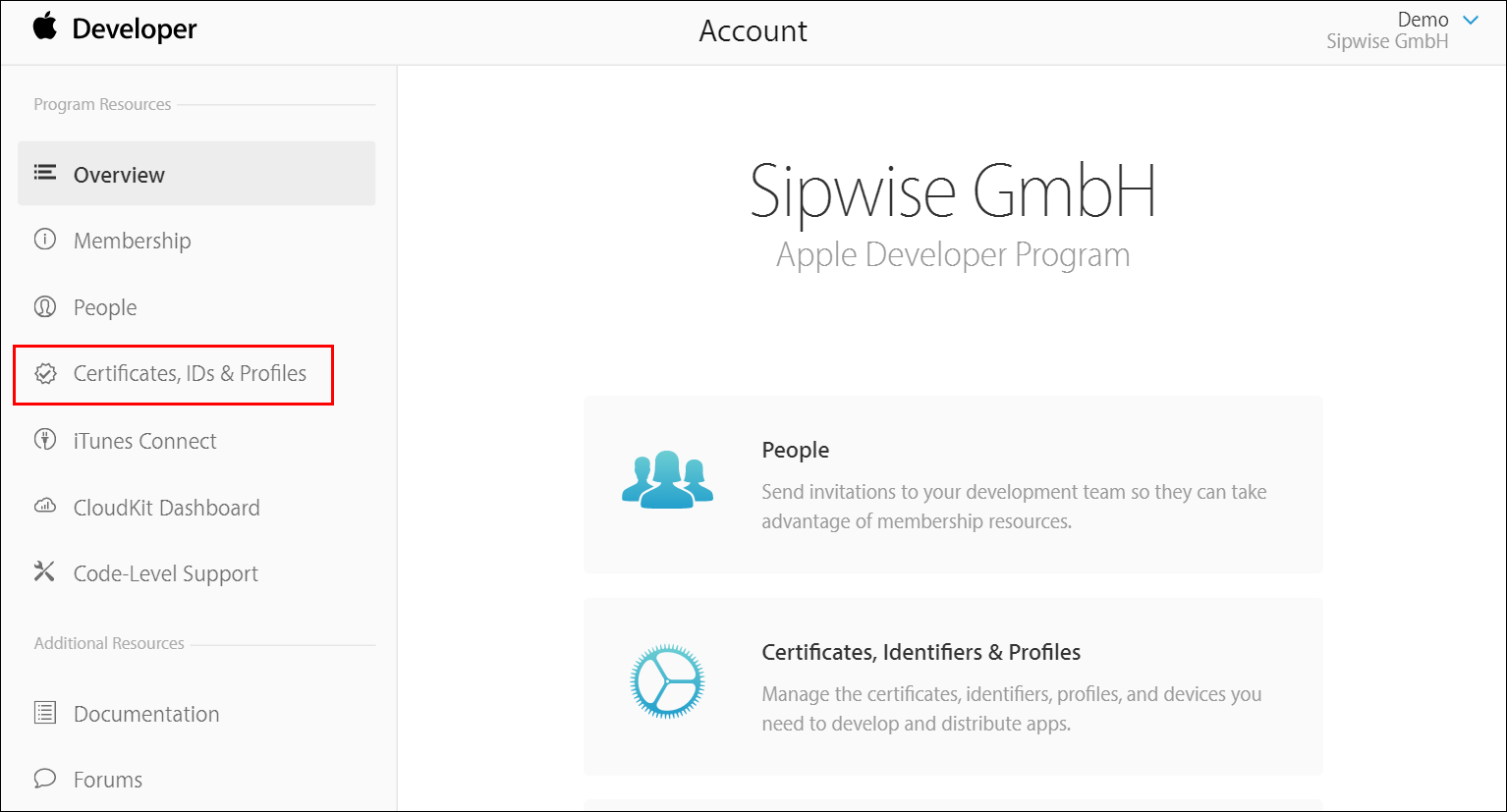

  Figure 55. Register an App ID
- Click Certificates, IDs & Profiles.

  Figure 56. Register an App ID
- Under Identifiers, select App IDs.

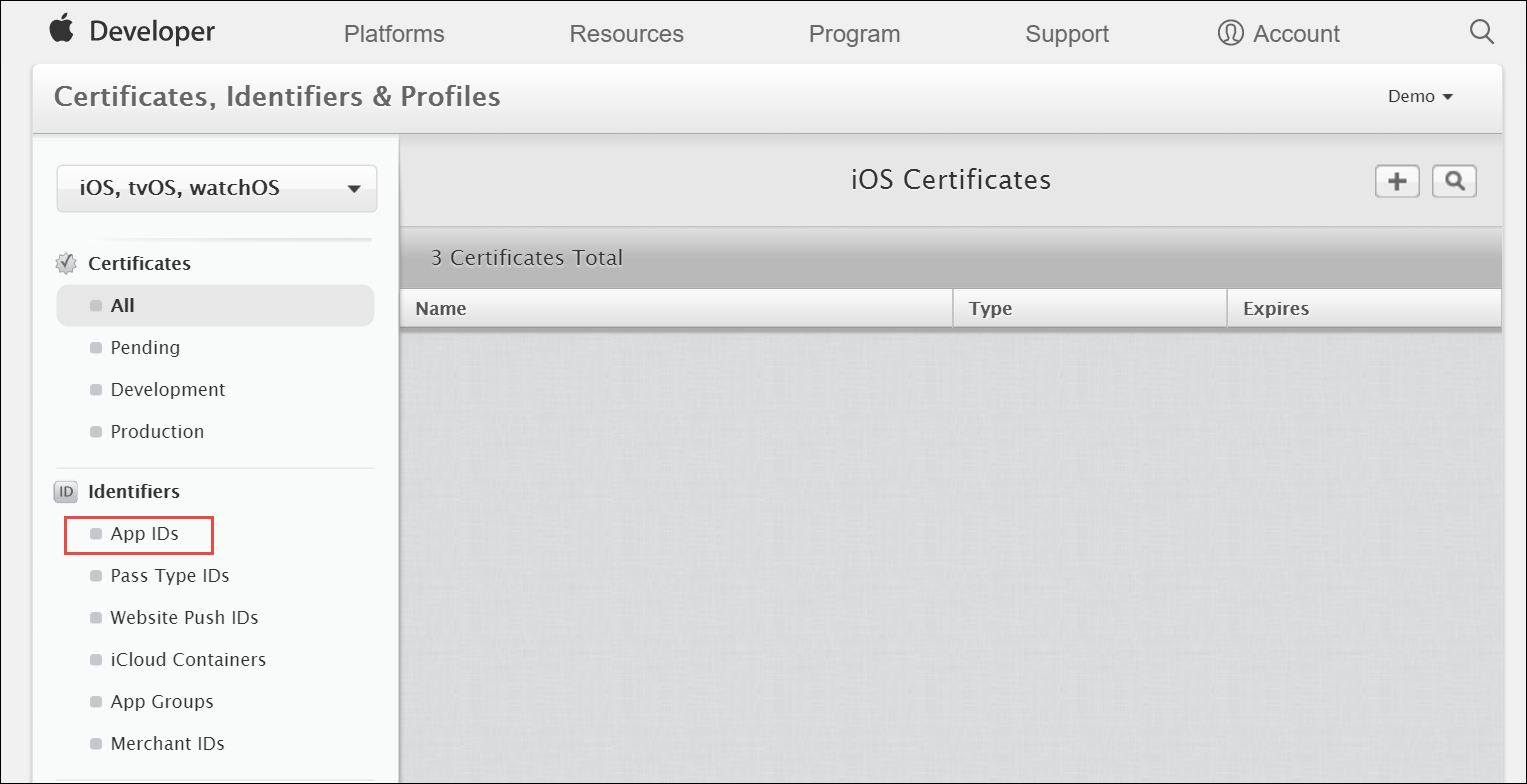

  Figure 57. Register an App ID
- Click the Add button (+) in the upper-right corner.

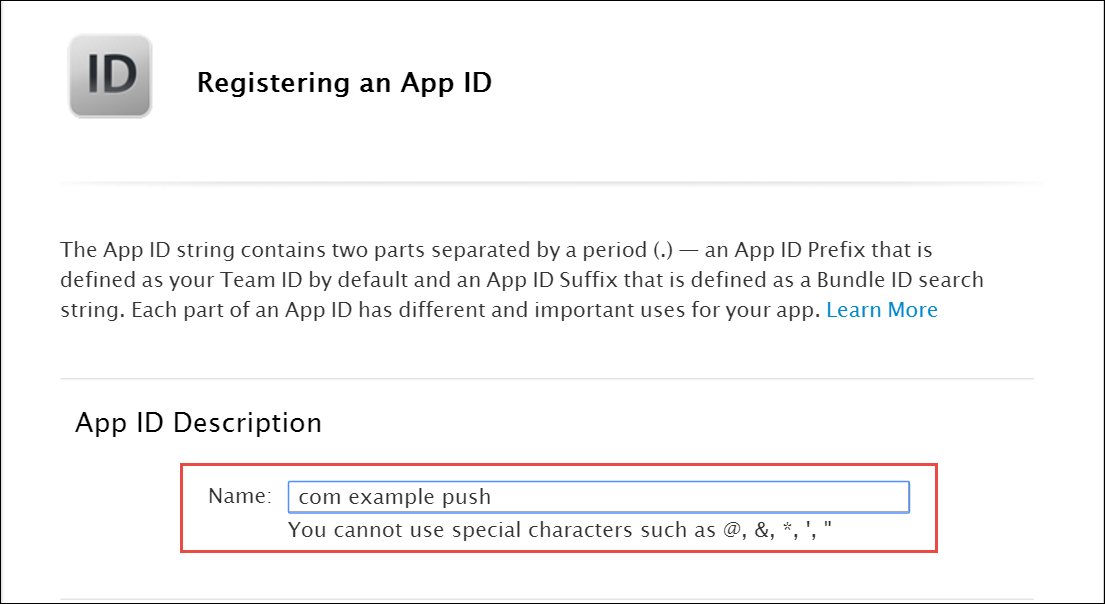

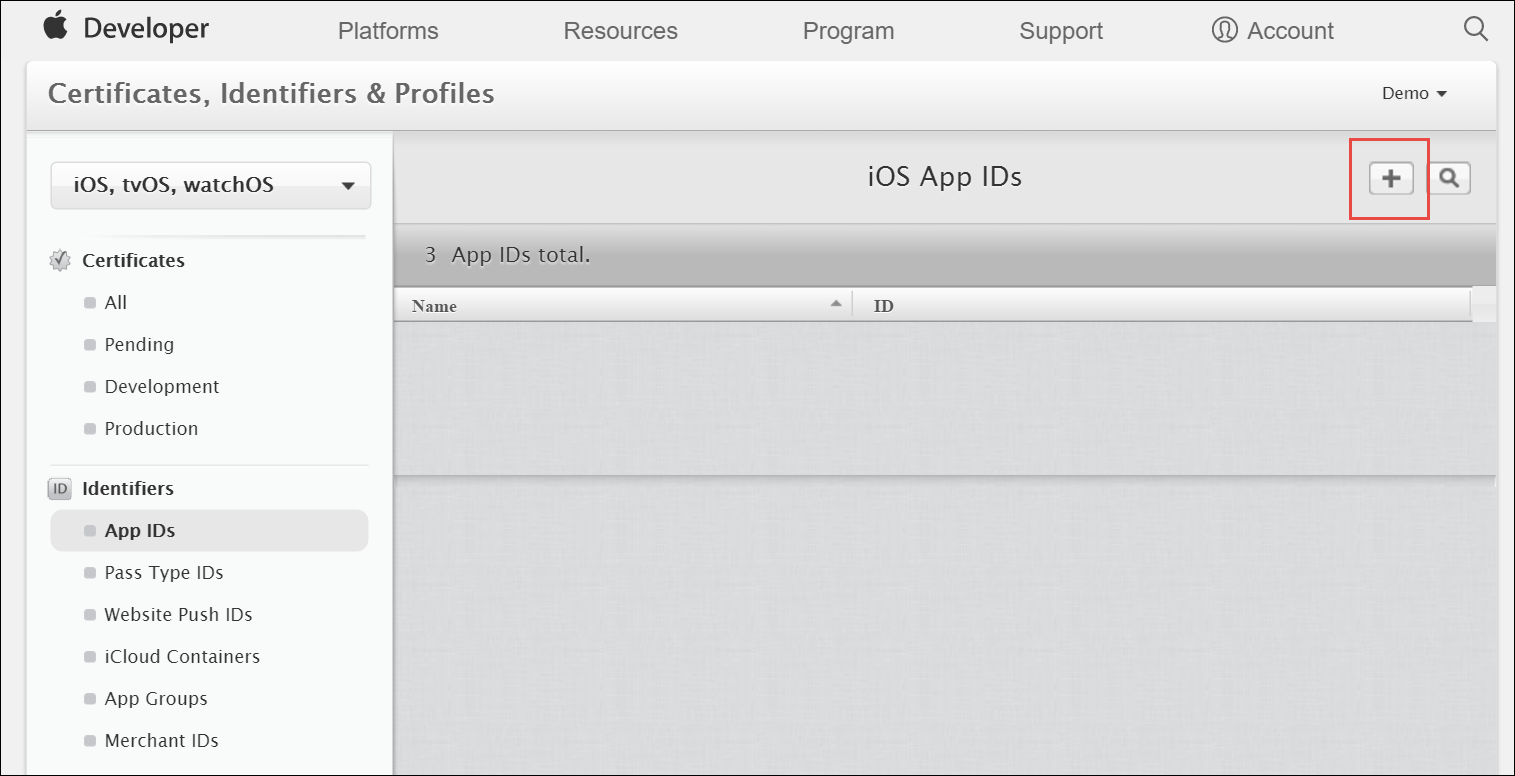

  Figure 58. Register an App ID
- Enter a name for the App ID in the App ID Description block. This helps you identify the App ID later.

  Figure 59. Register an App ID
- Select Explicit App ID and enter the app’s bundle ID in the Bundle ID field. Note that an explicit App ID exactly matches the bundle ID of an app you are building — for example, com.example.push. An explicit App ID can not contain an asterisk (*).

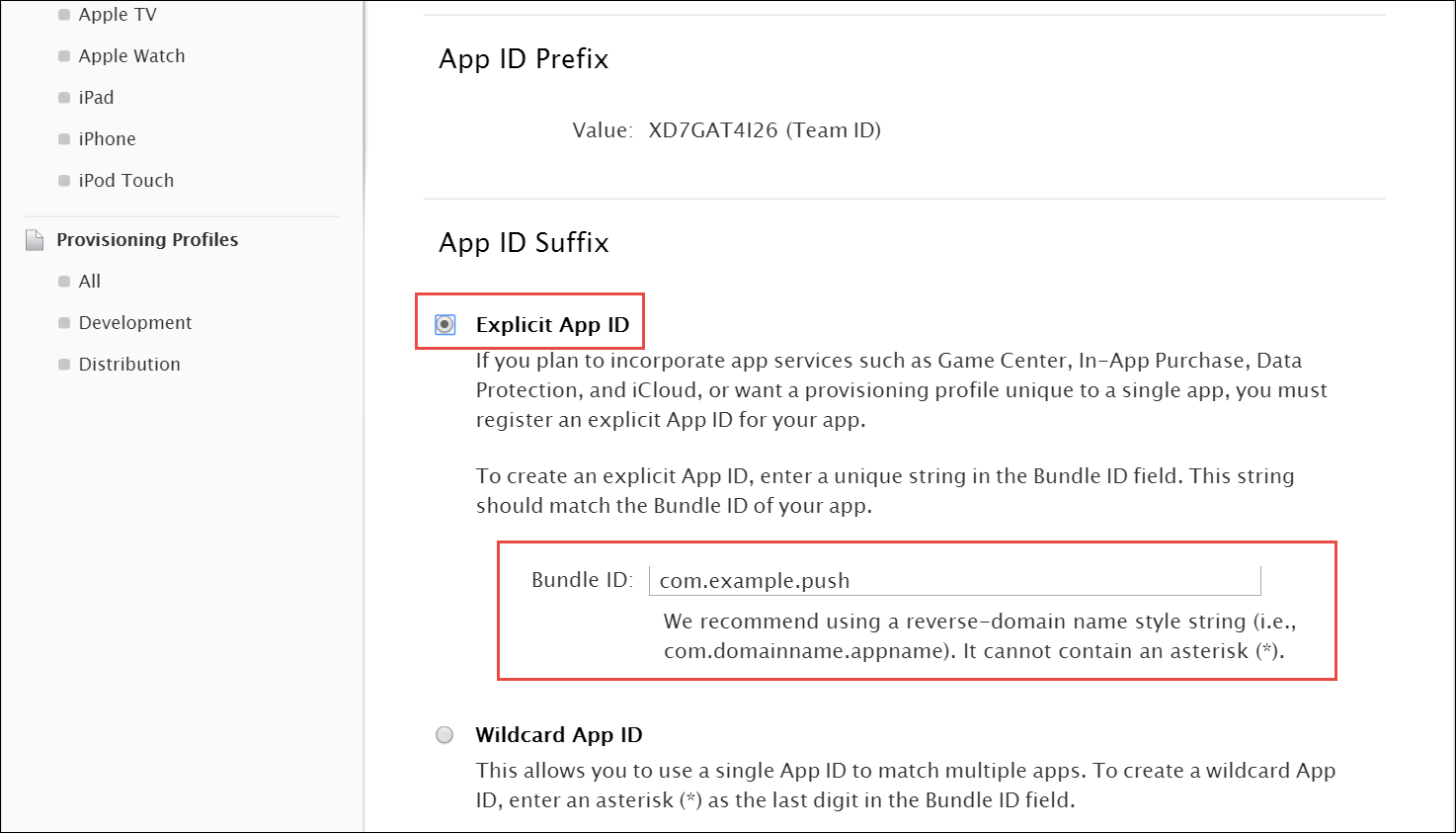

  Figure 60. Register an App ID
- In the App Services section enable Push Notifications. Click Continue to submit the form

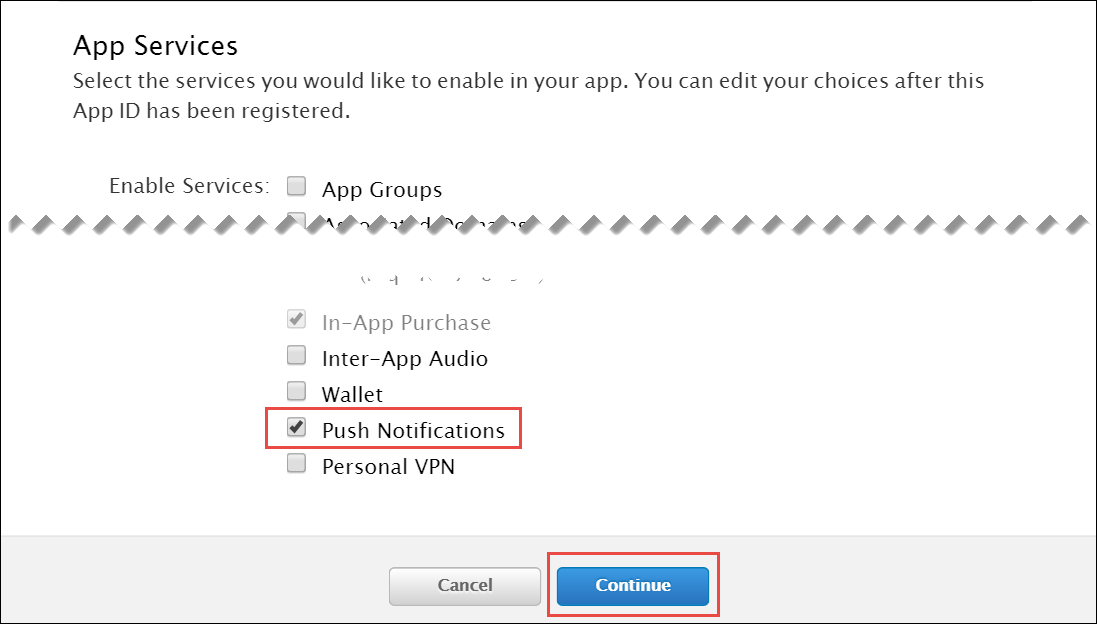

  Figure 61. Register an App ID

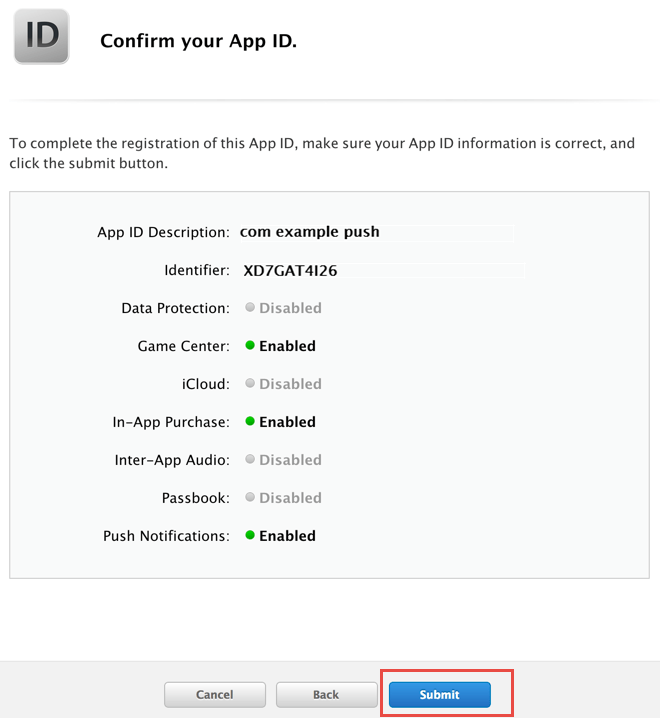

- Click Submit to create the App ID.

Obtain an Apple SSL Certificate and a Private Key

Create a CSR (Certificate Signing Request):
- Sign into https://developer.apple.com/account/ios/certificate.

  Figure 62. Create CSR
- Click the Add button (+) in the upper-right corner.

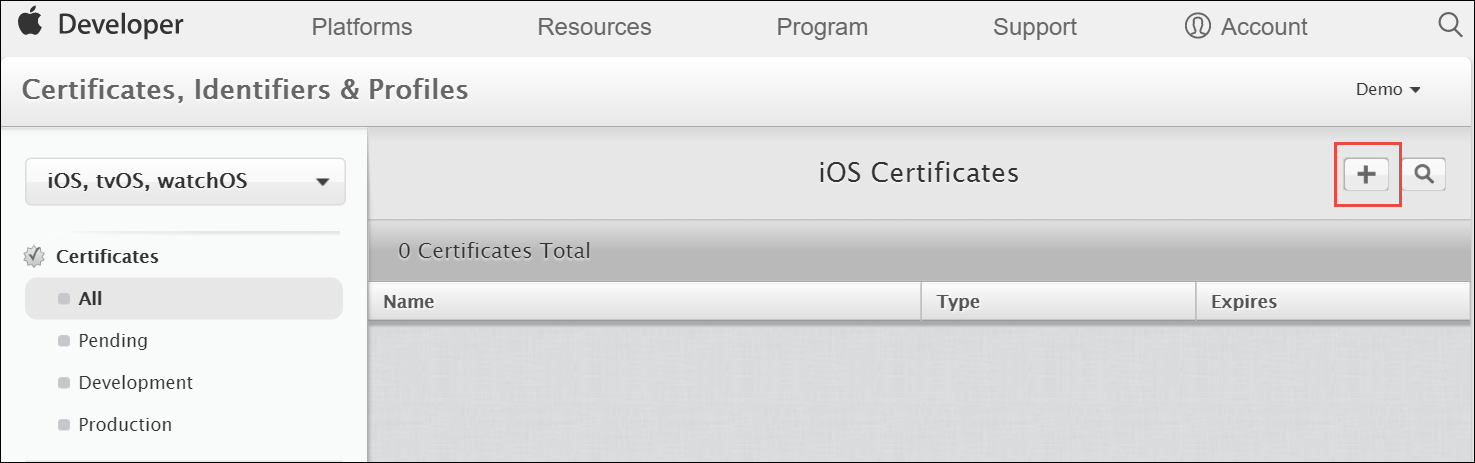

  Figure 63. Create CSR
- Select Apple Push Notification service SSL (Sandbox & Production) as the certificate type and click Continue.

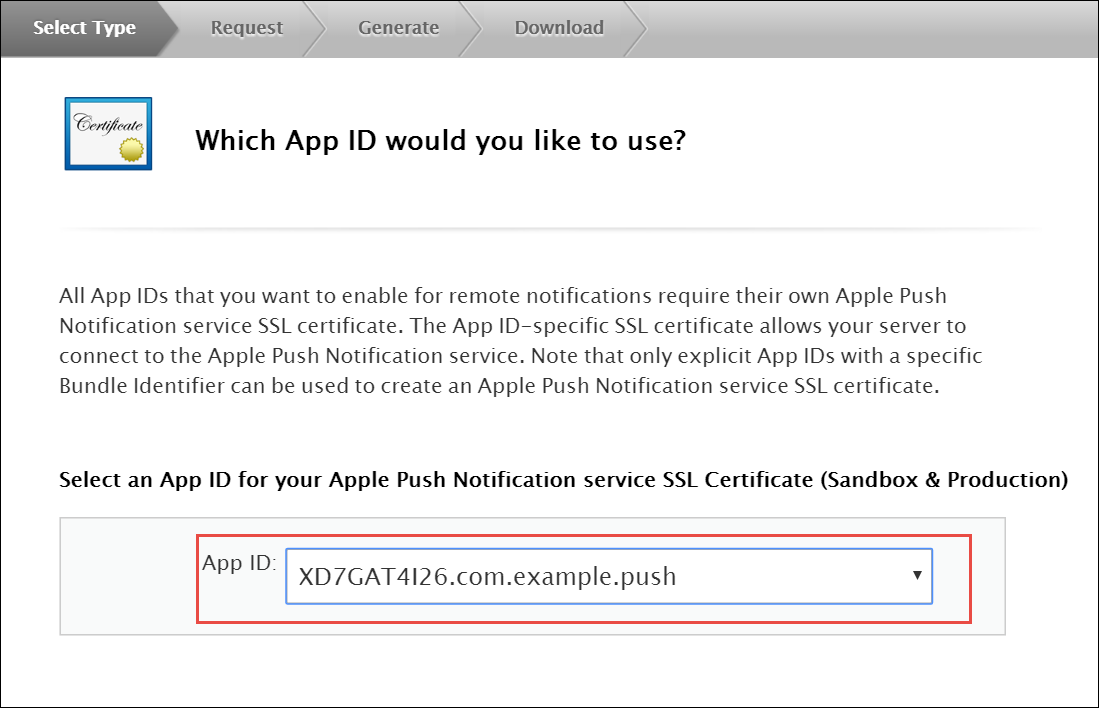

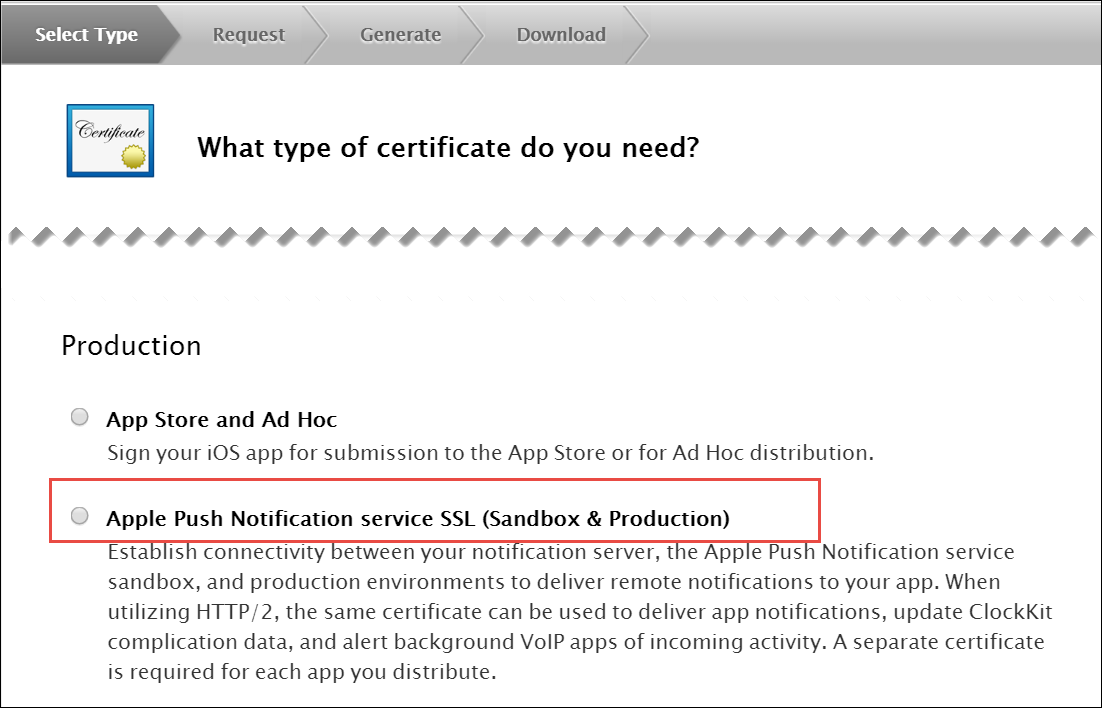

  Figure 64. Create CSR
- Select your App ID and click Continue.

  Figure 65. Create CSR

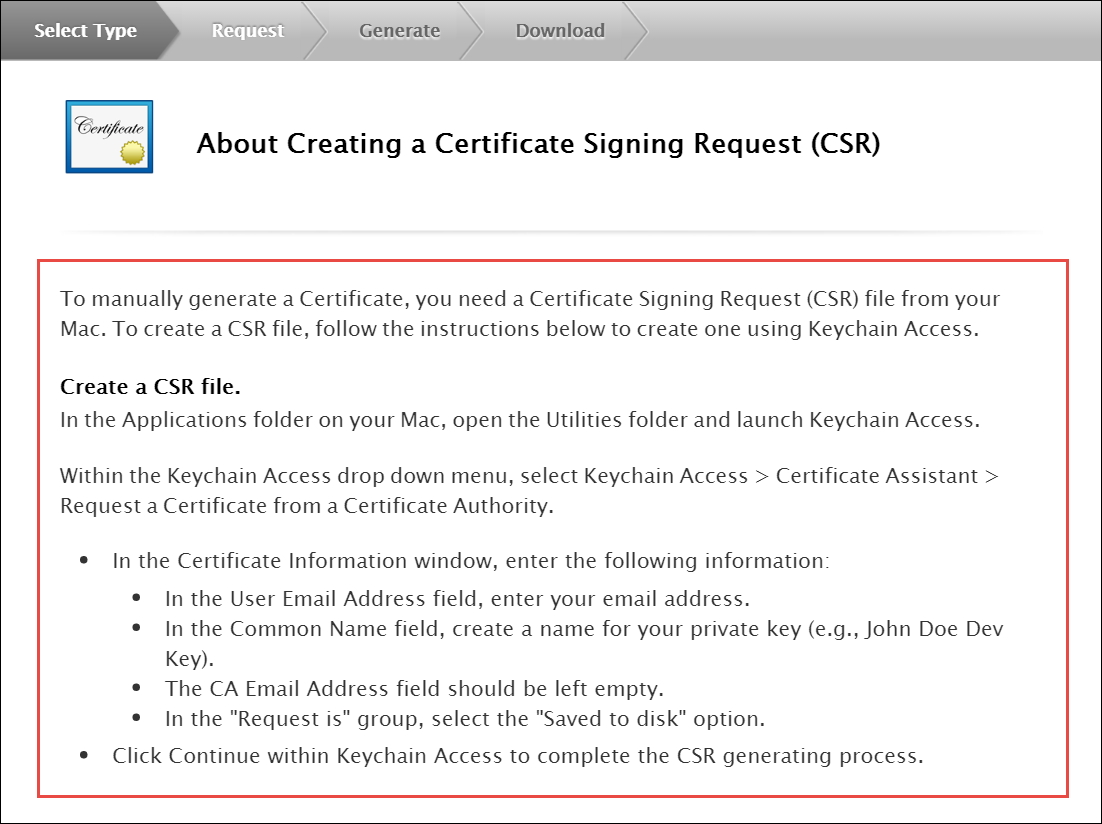

- Read the information about creating a CSR.
- Follow the instructions to create a CSR using Keychain Access in MAC.

  If you do not have access to a Mac, you can still create a CSR in Linux or Windows using OpenSSL, for example.
Get the Certificate and Private Key
- When you have the CSR file return to the browser and click Continue.

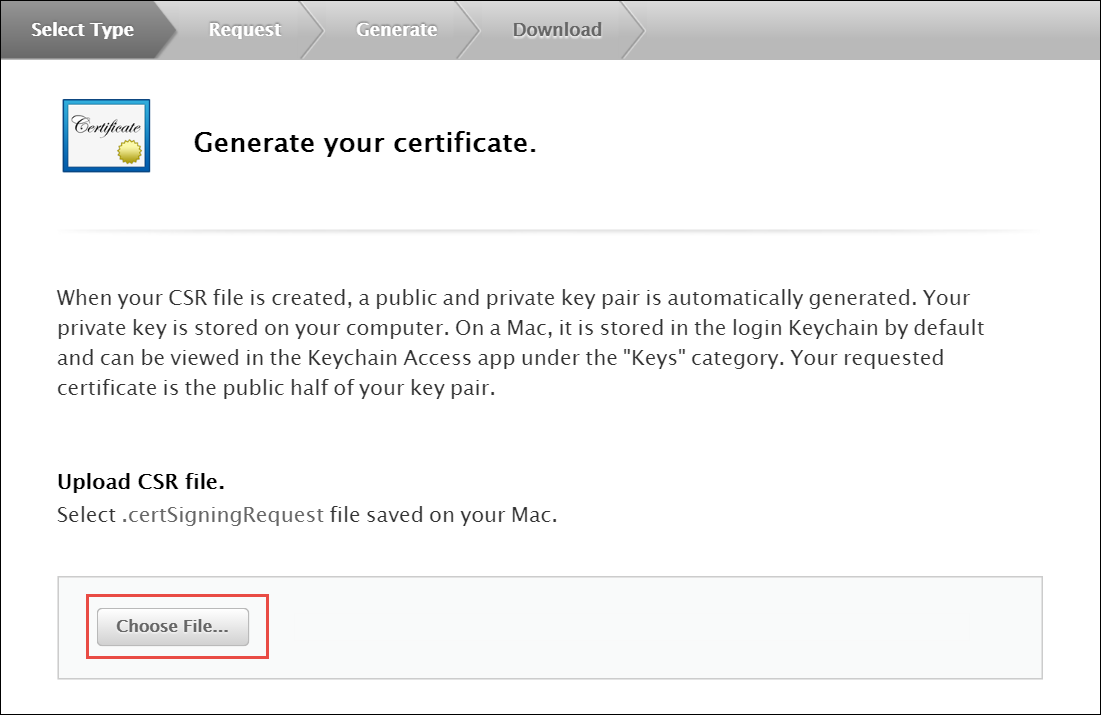

  Figure 66. Create CSR
- Click Choose File… in your browser.

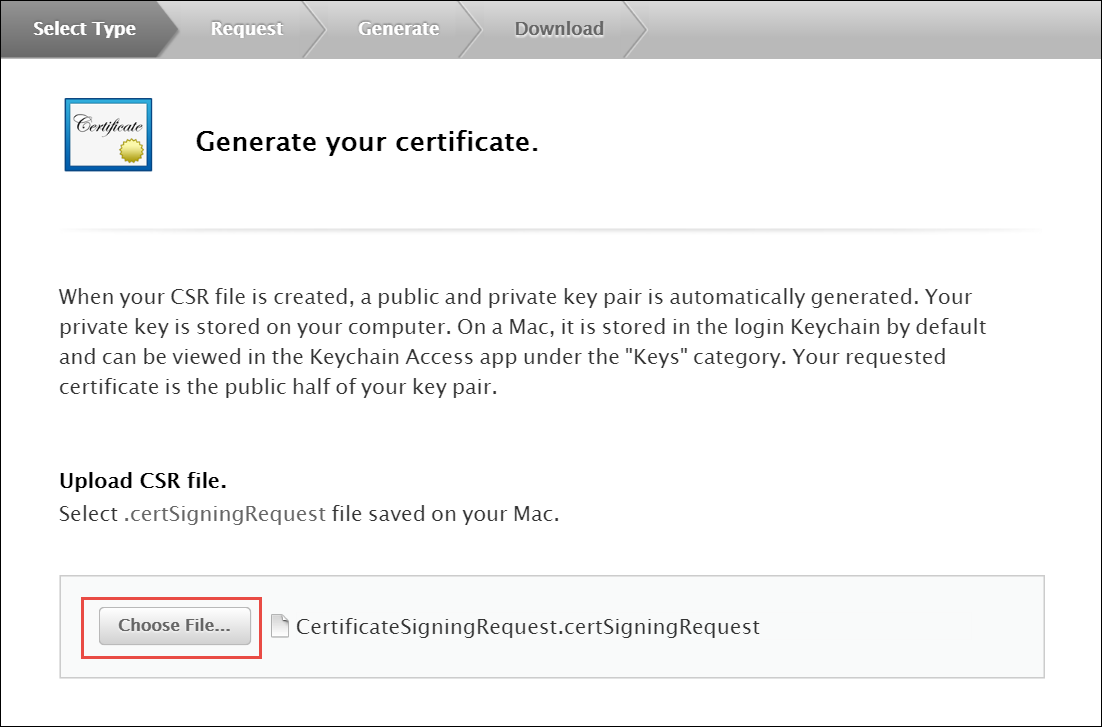

  Figure 67. Create CSR
- Select the CSR file you just created and saved and click Continue.

  Figure 68. Create CSR

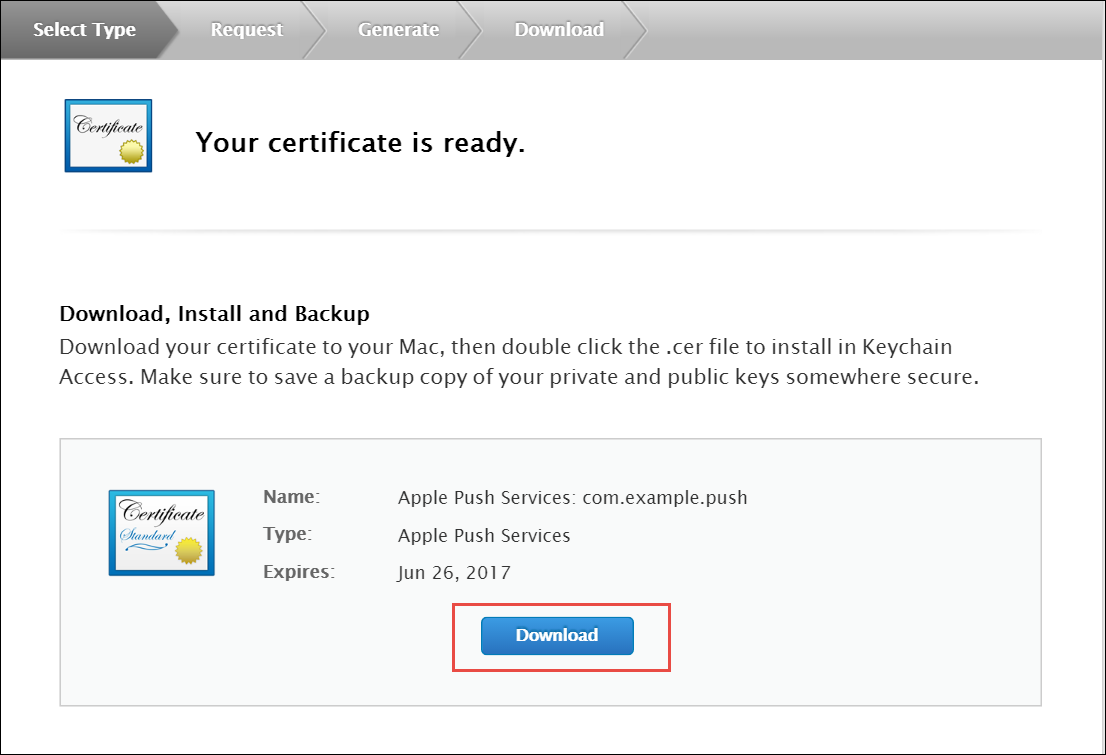

- Click Download to download the certificate (give it the aps.cer name).
- Open the downloaded certificate file (it should automatically be opened in Keychain Access, otherwise open it manually in Keychain Access).
- Find the certificate you just opened/imported in Keychain Access.
- Expand the certificate to show the Private Key.
- Select only the Private Key portion of the certificate, right-click on it and select Export "Common Name"… from the menu.
- Choose a location (e.g. Desktop) and filename to export the .p12 file to and click Save.
- Optionally pick a password for the .p12 file to protect its private key contents and click OK. (You will then need to enter your log-in password to permit the export).
Generate a PEM file from the p12 file:
- Open up your terminal and run the following commands to create a PEM file from the p12 file (If you input a password for the p12 file, you will need to enter it here):

cd ~/Desktop
openssl x509 -in aps.cer -inform der -out PushChatCert.pem
openssl pkcs12 -in PushChatCert.p12 -out PushCertificate.pem -nodes –clcerts
openssl pkcs12 -nocerts -out PushChatKey.pem -in PushChatKey.p12

Obtain the API Key for the App from Google

You can use Google Firebase Cloud Messaging (FCM) to send push notifications to your subscribers with Android-based mobile devices. Google Cloud Messaging is a free service that acts as an intermediary between Sipwise C5 and devices of your subscribers. Google’s Cloud Connection Server (CCS), a part of GCP, manages the persistent connections with mobile devices to deliver your push notifications.

While communicating with CCS, Sipwise C5 identifies itself using an API key. To get it, follow the steps below.

Create a new project in the Google APIs Console page. For this go to code.google.com/apis/console.

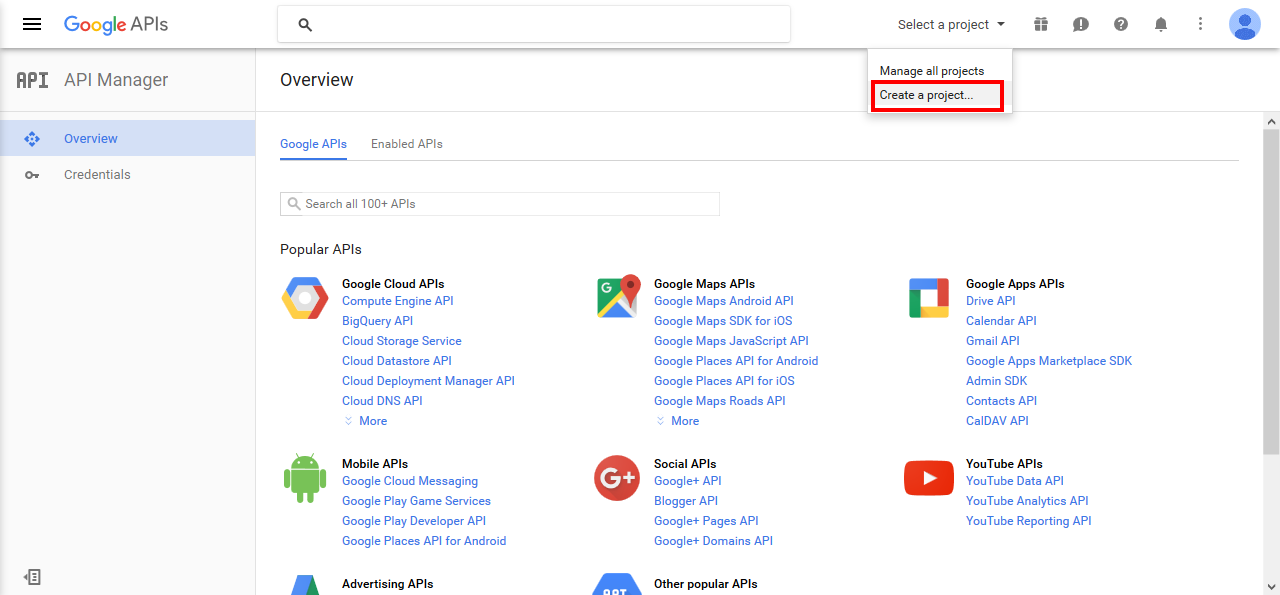

Figure 69. Google API Manager
Click Create a Project..

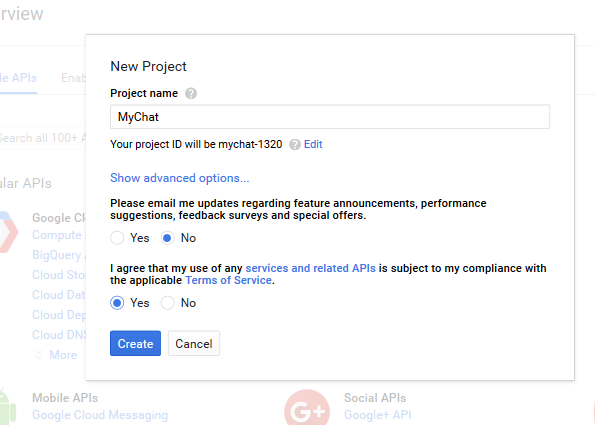

Figure 70. New Project creation
Input the project name, agree with the Terms of Service and click Create.

Figure 71. Google Cloud Messaging
Click Google Cloud Messaging on the Overview page.

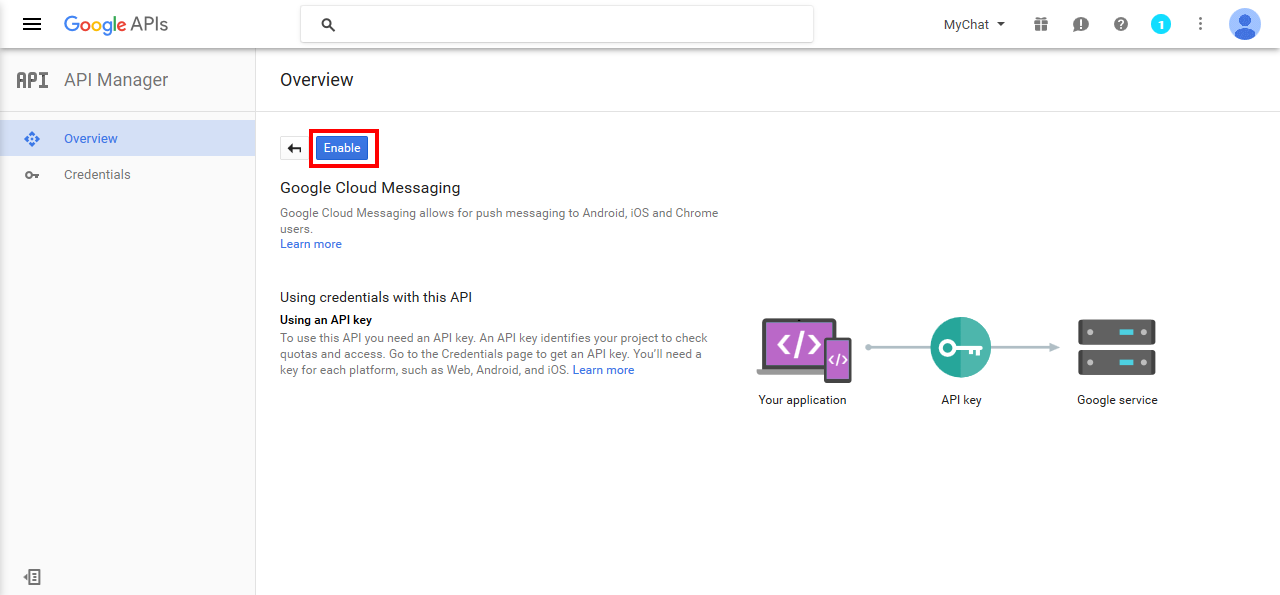

Figure 72. Enabling Google Cloud Messaging
Click Enable for the Google Cloud Messaging.

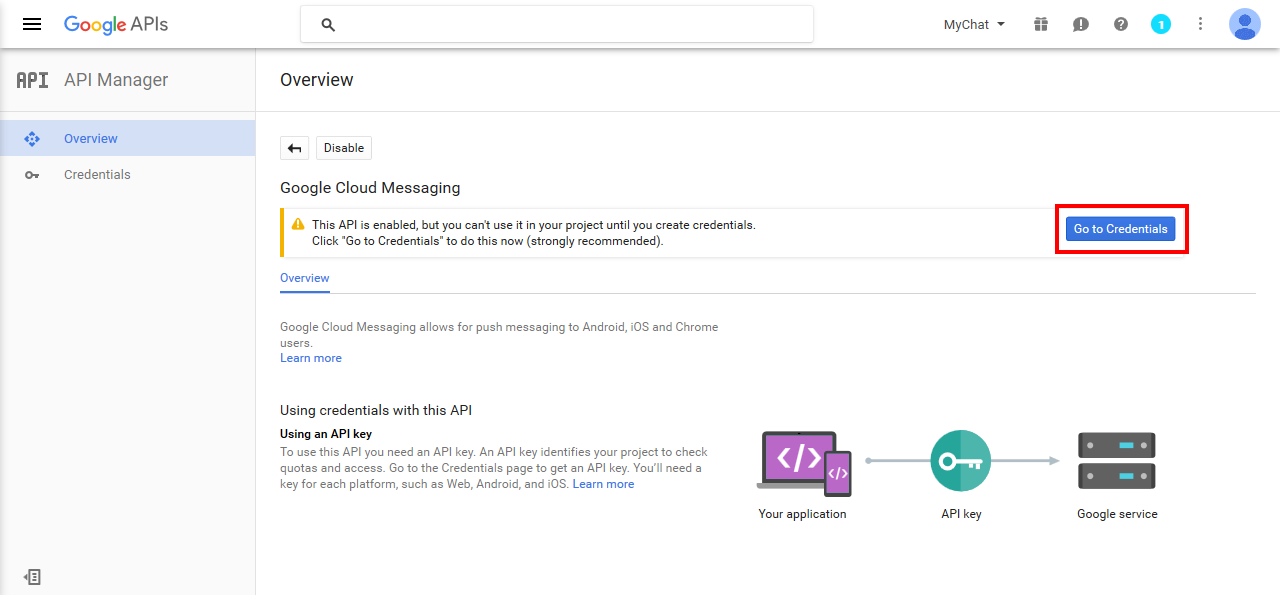

Figure 73. Adding Credentials
Click Go to Credentials.

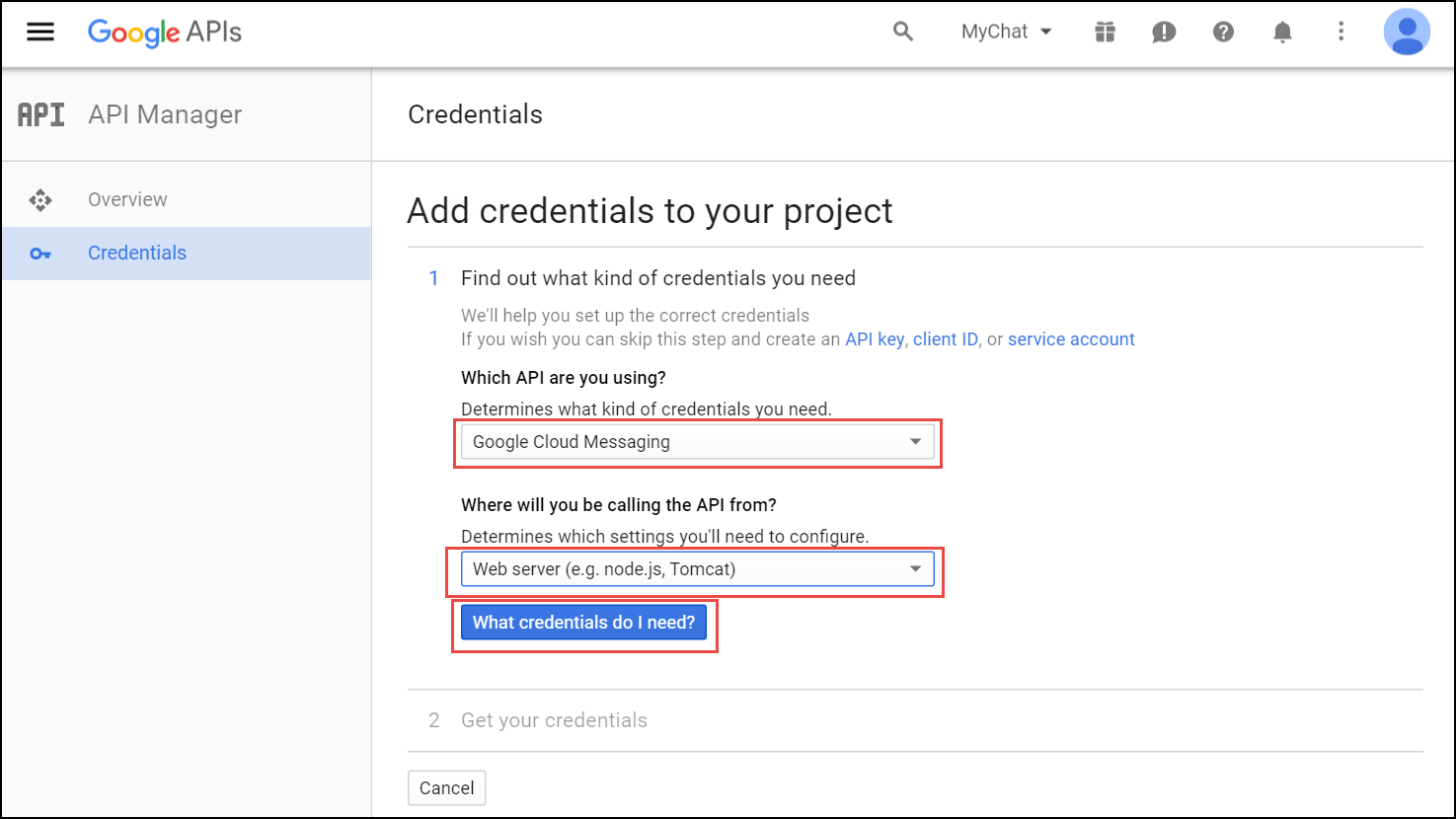

Figure 74. The Add Credentials page
Select Google Cloud Messaging and Web Server from the corresponding lists and click What credentials do I need?

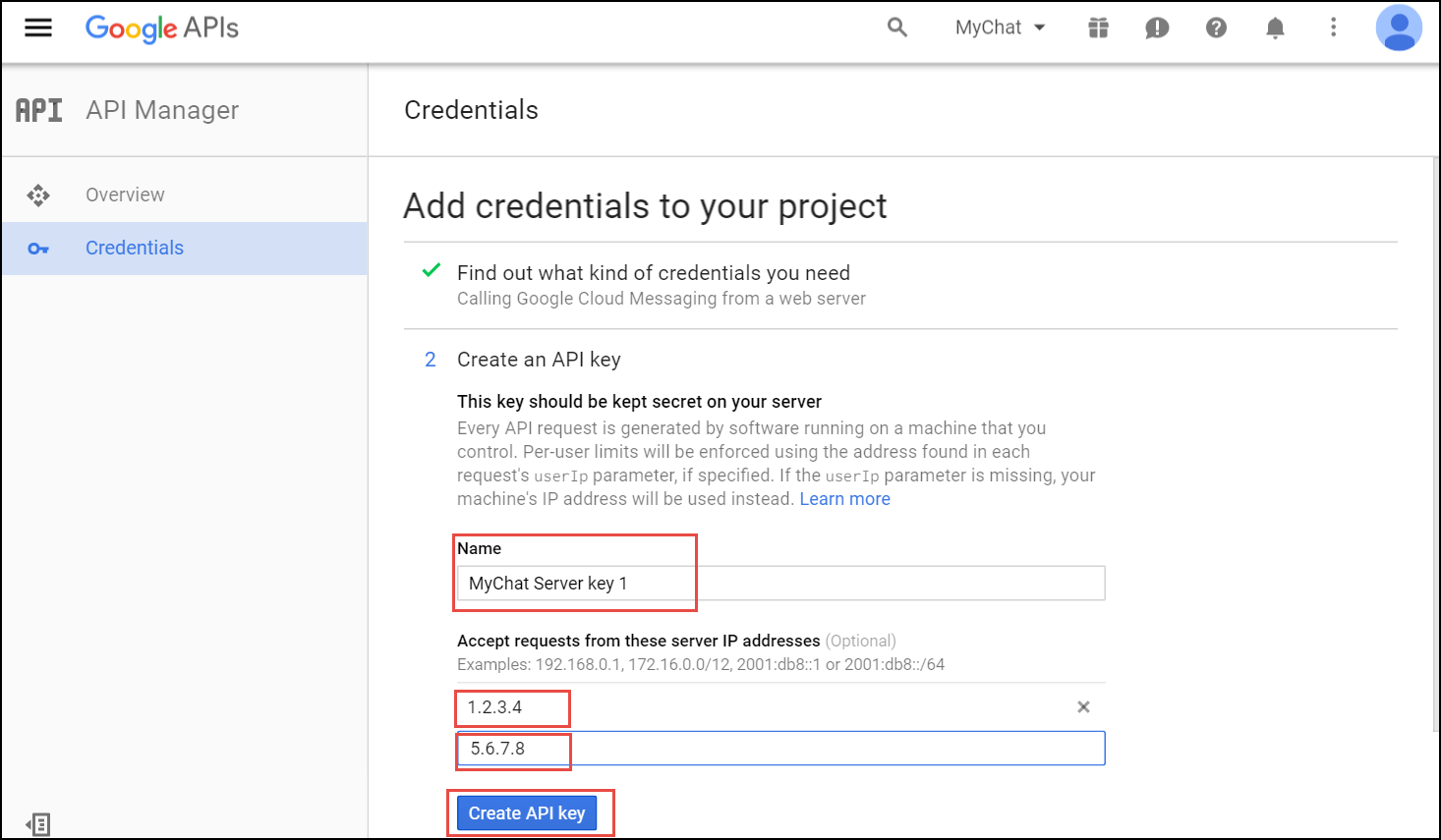

Figure 75. Create API key
Adjust the API Key name and input the IP addresses of all your load balancers under Accept requests from these server IP addresses. Click Create API key.

You may skip adding the IP addresses, otherwise list ALL your load balancers.

Figure 76. API key created
Copy your API key and click Done. Save the API key for future use.

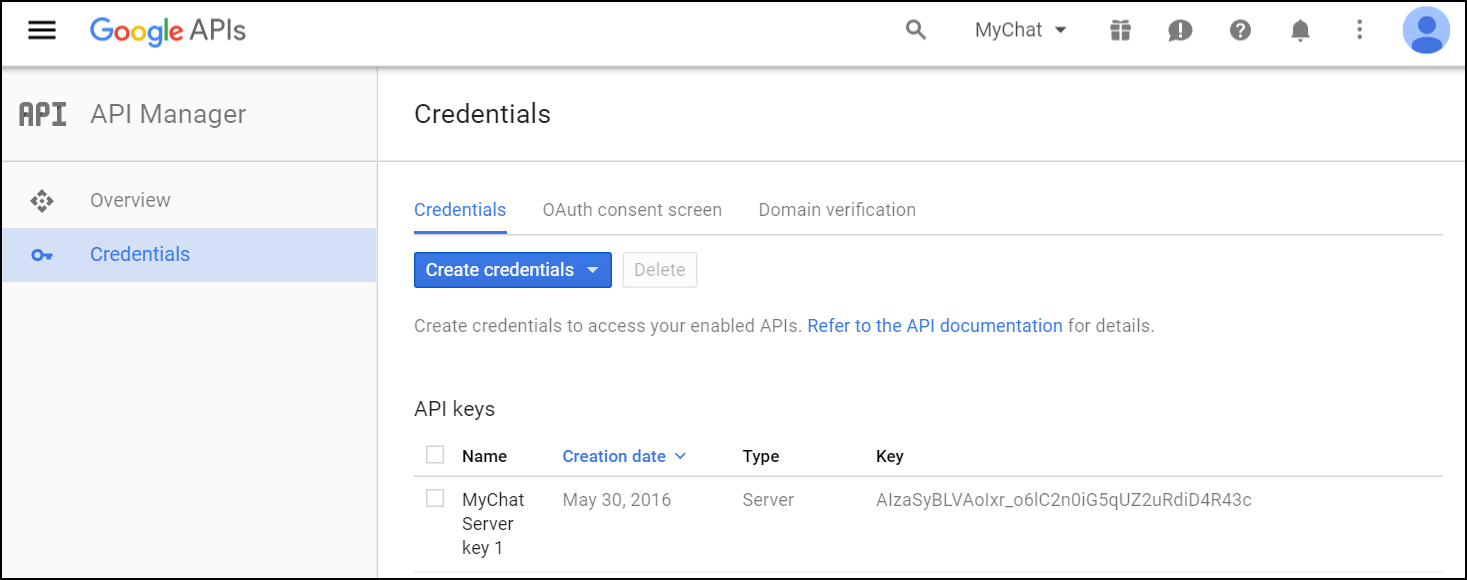

Figure 77. Done

Provide the Required Information to Developers

Please, provide Sipwise developers with the following files and information so that they can make beta builds and submit the application to the App Store:

Access to your Apple developer account
The trusted SSL certificate and its private key
The Apple SSL certificate and its private key

For the Android application, provide the following:

Access to your Google developer account
Google application API key

Adjust Sipwise C5 Configuration (Usually Performed by Sipwise)

Upload the Apple SSL certificate (PushChatCert.pem) and the private key (PushChatKey.pem) to /etc/ngcp-config/ssl/
Upload the trusted SSL certificate (CAsigned.crt) and the private key (CAsigned.key) to /etc/ngcp-config/ssl/
Specify the corresponding paths and names in the pushd section of the config.yml file:
- apns: section (For iOS mobile application)
  - certificate: \'/etc/ngcp-config/ssl/PushChatCert.pem'
  - enable: yes
  - key: \'/etc/ngcp-config/ssl/PushChatKey.pem'
- enable: yes
- android: section (for Android mobile application)
  - enable: yes
  - key: \'google_server_api_key_here'
- ssl: yes
- sslcertfile: /etc/ngcp-config/ssl/CAsigned.crt
- sslcertkeyfile: /etc/ngcp-config/ssl/CAsigned.key
You can find an example of /etc/ngcp-config/config.yml configuration in the config.yml overview section.
Apply your changes:

ngcpcfg apply 'enabled the backup feature.'
ngcpcfg push all

Recheck Your DNS Zone Configuration

Check that your NS and A DNS records are correctly configured.

Let’s consider the following example: * the load-balancers have the lb01a.example.com and the lb01b.example.com names * the shared name is lb01.example.com and the shared IP address is 1.1.1.1 * the service name is voipservice.example.com

The following DNS records must be present:

Server Name

Record type

IP Address

lb01a.example.com

1.2.3.4

lb01b.example.com

5.6.7.8

lb01.example.com

1.1.1.1

voipservice.example.com

1.1.1.1

Add SRV Records to DNS

Add at least one record for each service: xmpp-server, xmpp-client, sips.

A regular SRV record has the following form:

_service._proto.name. TTL class SRV priority weight port target

service: the symbolic name of the service (xmpp-server, xmpp-client, sips).
proto: the transport protocol of the desired service (TCP).
name: the domain name (ending in a dot).
TTL: standard DNS time to live field.
class: the standard DNS class field (this is always IN).
priority: the priority of the target host (lower value means more preferred).
weight: a relative weight for records with the same priority (the higher the value, the more requests will be sent).
port: the TCP or UDP port of the service.
target: the canonical hostname of the machine providing the service (ending in a dot).

Here are examples of the SRV records:

_xmpp-server._tcp.voipservice.example.com. 18000 IN SRV 10 50 5269 voipservice.example.com.
_xmpp-client._tcp.voipservice.example.com. 18000 IN SRV 10 50 5222 voipservice.example.com.
_sips._tcp.voipservice.example.com. 18000 IN SRV 10 100 5061 voipservice.example.com.

You can always check whether the required SRV records are configured by executing the following commands:

dig SRV _xmpp-client._tcp.voipservice.example.net
dig SRV _xmpp-server._tcp.voipservice.example.net
dig SRV _sips._tcp.voipservice.example.net

Check NTP Configuration

We strongly suggest that the clocks of all the nodes within the platform are synchronized. To ensure this, check that the NTP service is correctly configured on all your Sipwise C5 servers and works reliably. Execute the following command for quick test of time synchronization:

timedatectl

If the current node synchronizes with an NTP server, this server will be marked by 'NTP service: active'.

Execute the following command to get the NTP service status:

timedatectl timesync-status

Enable Apple/Google Mobile Push

It can be enabled for a domain or separate subscribers in the Admin Panel.

To enable the service for a domain:

Go to Settings→Domains and click on the Preferences button of the domain you want to enable Apple/Google Mobile Push for.
Go to the Internals group and enable the mobile_push_enable parameter.

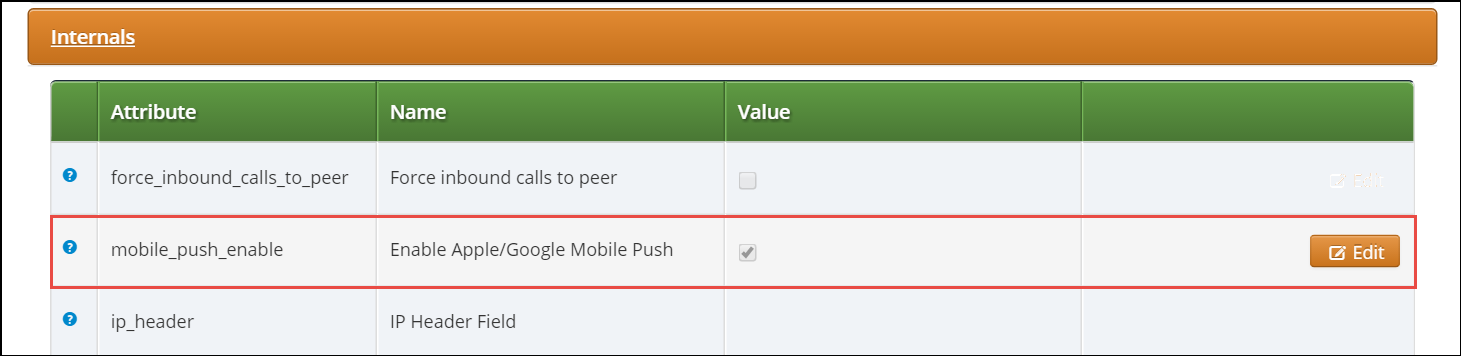

Figure 78. Enable Apple/Google Mobile Push

Perform Tests

Perform tests when the application is available:

Download and install the application.
Open the application and input your registration username in the username@domain.name format and password.
Review the quality of application branding.
Make test calls.
Test the presence functionality.
Test the chat and group chat.
Test messaging.
Test the sharing functionality (e.g. pictures, video and voice messages and maps).
Check the application phone book integration with the phone’s one

Make sure that the subscribers can start using your services in the easiest possible way.

Lawful Interception

Introduction

The Sipwise C5, as a communications platform carrying voice, fax and messaging data has to provide means for lawful interception of the content of communication by third party entities. Those Law Enforcement Agencies (LEAs) have to be able to connect to Sipwise C5 platform in a standardized way — ETSI, 3GPP and other organisations define the interface (and data exchange) between telecommunication operators and LEAs.

High level overview of lawful interception is shown in the following figure:

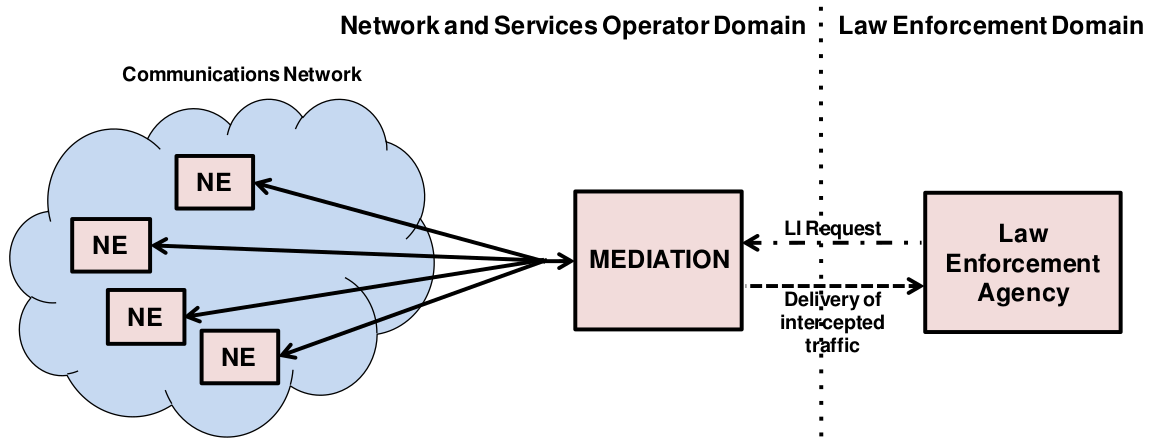

Figure 79. LI: High Level Overview

Main interfaces of lawful interception according to ETSI standard:

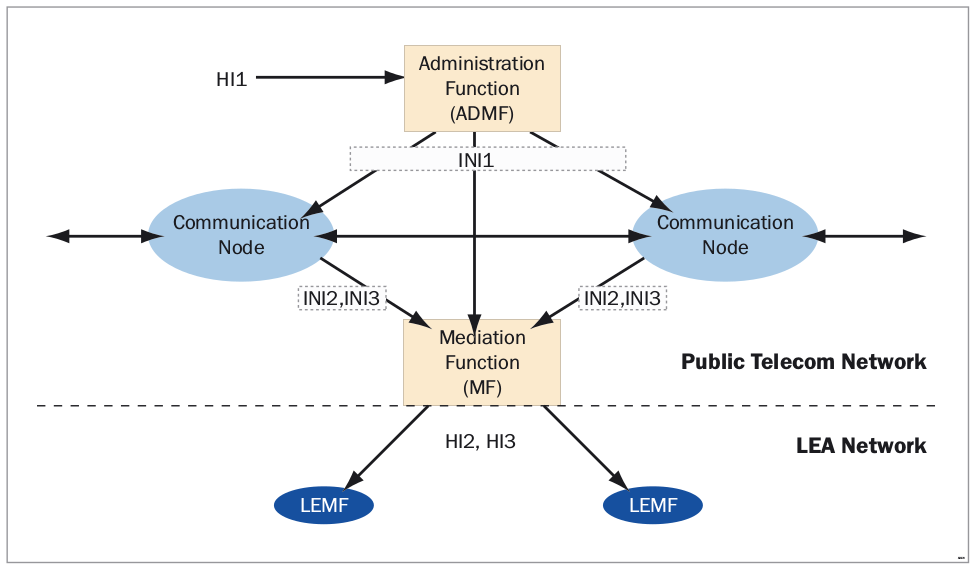

Figure 80. LI: ETSI Interfaces

Terms and Abbreviations

Content of Communication (CC)

Information exchanged between two or more users of a telecommunications service, excluding Intercept Related Information.

This includes information which may, as part of some telecommunications service, be stored by one user for subsequent retrieval by another.

CC Internal Interception Function (CC-IIF)

The CC-IIF shall cause the CC, specified by the CCTF, via the CCCI to be duplicated and passed to the MF.

Content of Communication Control Interface (CCCI)

Carries controls information from the CCTF to the CC-IIF.

CC Trigger Function (CCTF)

The purpose of the CCTF is to determine the location of the CC-IIF device associated to the target CC traffic, and to control the CC-IIF via the CCCI interface.

Content of Communication Trigger Interface (CCTI)

Carries trigger information from the IRI-IIF to the CCTF.

Handover Interface (HI)

Physical and logical interface across which the interception measures are requested from an operator, and the results of interception are delivered from an operator to an LEMF.

Intercept Related Information (IRI)

Collection of information or data associated with telecommunication services involving the target identity, specifically call or service associated information or data (e.g. call identifier, unsuccessful call attempts) and location information.

Intercept Related Information Internal Interception Function (IRI-IIF)

The purpose of the IRI-IIF is to generate IRI information associated with sessions, calls, connections and any other information involving interception targets identified by Law Enforcement Agency (LEA) sessions.

Internal Network Interface (INI)

Network’s internal interface between the Internal Intercepting Function and a mediation function.

Law Enforcement Agency (LEA)

Organization authorized, by a lawful authorization based on a national law, to request interception measures and to receive the results of telecommunications interceptions.

Law Enforcement Monitoring Facility (LEMF)

Law enforcement facility designated as the transmission destination for the results of interception relating to a particular interception subject.

Lawful Interception Administration Function (AF)

The AF ensures that an intercept request from a LEA for IRI or CC or both is provisioned for collection from the network, and subsequent delivery to the LEMF.

Lawful Interception Mediation Function (MF)

Mechanism which passes information between an access provider or network operator or service provider and a handover interface.

Firstly it receives information related to active intercepts from the IRI-IIF(s) and CC-IIF(s) within the service provider network.
Secondly correlates and formats that IRI and CC information in real time for delivery to the LEMF over the HI2 and HI3 handover Interfaces.

X1, X2 and X3 Interfaces

The 3GPP standard for Lawful Interception defines the handover interfaces with different names compared to the ETSI standard. The Xn interface corresponds to the INIn interface and is functionally identical to the INIn interface.

Architecture and Configuration of LI Service

Sipwise C5 platform implements the functions defined by LI requirements in a way that it relies on a third party provider for the Lawful Interception Mediation Function (MF).

Regarding other LI functions that are defined by ETSI / 3GPP standards there are 2 possible implementations:

Sipwise C5 behaves as the Administration Function (AF) but the actual call data capturing is carried out by other SIP endpoints. In this case Sipwise C5 forwards the calls to be intercepted to its SIP peers dedicated for LI service. Within the scope of SIP peer based solution there are still 2 modes of operation:
- Call loopback to NGCP: the LI peer receives the call, extracts IRI and CC data and then routes the call back to NGCP. Sipwise C5 handles the looped back call as if that was initiated from Sipwise C5 and sets up the second call leg to the destination.
- Call forwarded by peer directly to destination: in this case Sipwise C5 will handle the call to LI peer as an ordinary second call leg to the destination.
Sipwise Sipwise C5 itself provides the required LI functions: AF and call data capturing; IRI and CC of intercepted calls are forwarded to the third party MF from NGCP. Sipwise C5 can be configured in two modes:
- Non-Distributed: The LI roles are hosted on the PROXY nodes. The REST API endpoint to LEA will be the usual MGMT nodes.
- Distributed: The LI roles are hosted on geographically distributed LB+RTP nodes, for example one pair of LB+RTP nodes per country, each of which has different law enforcement authorities. The LB+RTP nodes will provide an ngcp-panel instance, which due to privacy laws is specially configured to store intercepts locally (the node will operate on its own set of data), and the external party (law enforcement, LI integration, etc.) interacts with the pertinent LB+RTP nodes via the REST API (or SOAP for older installations).

This handbook will discuss the second setup in detail in the following sections.

The below figure illustrates the logical connection of LI functions on Sipwise C5.

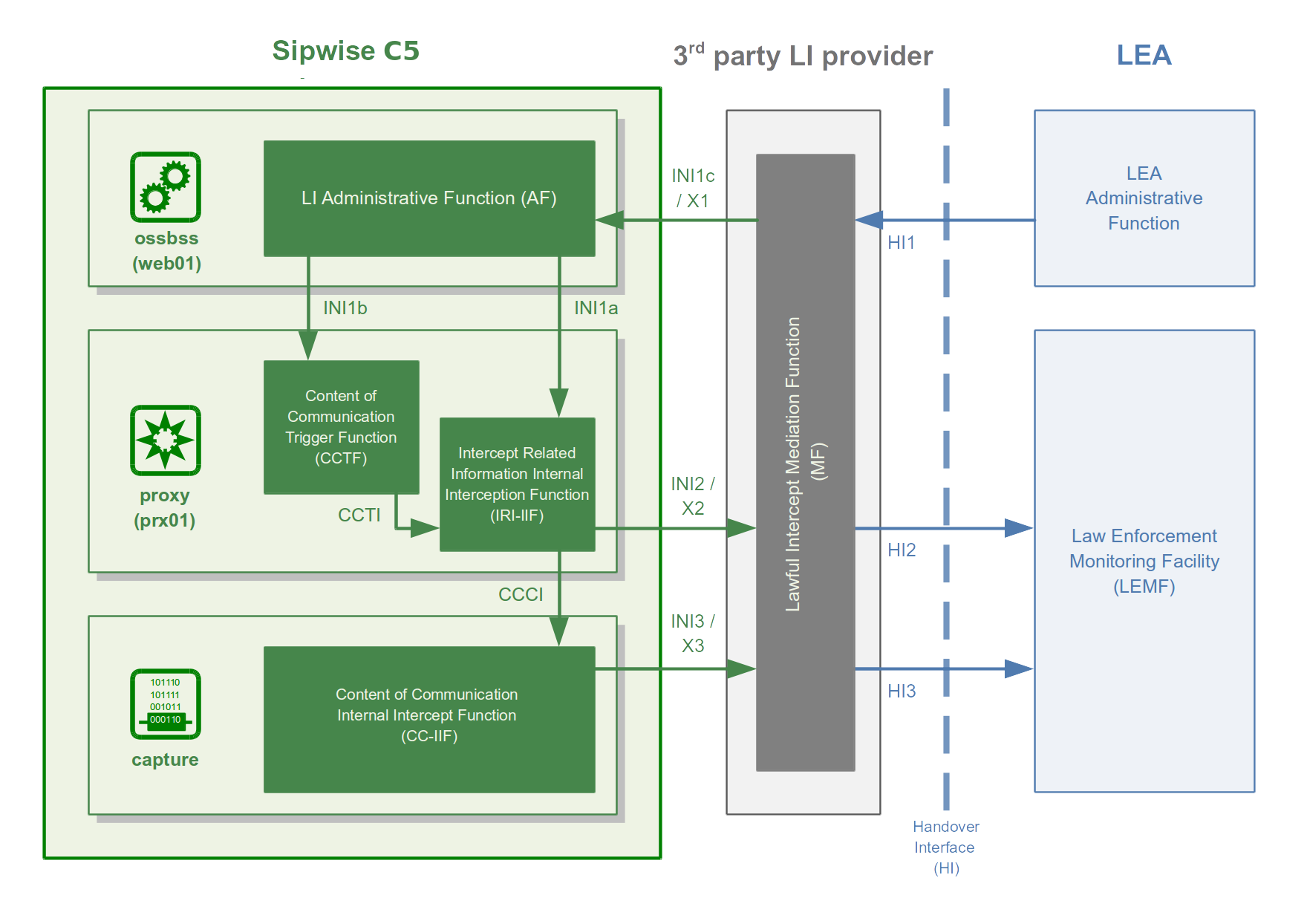

Figure 81. LI with 3rd Party Provider

Architecture Based on NGCP Voisniff Module

The implementation of LI services with captagent is no longer available and configurable on Sipwise C5, Sipwise requires deploying a revised solution with its ngcp-voisniff software module. This newer implementation also relies on a 3rd party LI provider representing the LI Mediation Function (MF), where Sipwise currently (as of Sipwise C5 version mr4.5.2) cooperates with Group2000, Pine and Utimaco.

Sipwise C5 components providing LI functions:

ngcp-panel: this module is responsible for managing REST API for the whole NGCP in general
- runs on: the active node with web role (sp on PRO; web01 on CARRIER) on a Sipwise C5 platform
- LI functions: AF; INI1 / X1 interface towards the MF
kamailio-proxy: this module serves as a generic call control function on the NGCP
- runs on: the active node typically with proxy role (sp on PRO; prx01 on CARRIER) on a Sipwise C5 platform
- LI functions: CCTF and IRI-IIF; INI2 / X2 interface towards the MF
ngcp-voisniff: this module is a generic element for capturing SIP and RTP traffic on the NGCP
- runs on: the active node typically with lb role (sp on PRO; lb01 on CARRIER) on a Sipwise C5 platform
- LI functions: CC-IIF; INI3 / X3 interface towards the MF

The ngcp-voisniff module is installed by default but not activated on the Sipwise C5. It provides the possibility to get call statistics through the Admin web interface, and is not readily configured for LI services. Please contact Sipwise if you need to activate LI services on the platform.

Authentication and Confidentiality

It is required that the communication between the telecommunication operator’s network element (that is: Sipwise C5) and the MF be authenticated and confidential, since the intercepted session related data and content of communication must not be disclosed to any 3rd party. For this purpose NGCP’s LI service applies authentication and LI session data encryption based on public key cryptography mechanism (TLS).

Both Sipwise C5 and the MF must authenticate themselves by certificates, for this reason Sipwise C5 operator must ensure that valid certificates are deployed on the system. There is a need to contact the 3rd party LI provider, so that he can provide the necessary client certificates that Sipwise C5 will use to setup secured connection to the MF on X2 and X3 interfaces.

Similarly, the MF provider must contact Sipwise C5 operator to offer him valid client certificates that the MF element will use to establish secured connection to the Sipwise C5 on X1 interface.

Configuration of LI Service

To enable LI services on Sipwise C5 the platform administrator has to enable lawful interception through the main configuration file (config.yml).

For a distributed setup, the cluster_sets.type variable has to be set to 'distributed' (see appendices-main:appendices-main.adoc#config_cluster_sets for more information), and the lb nodes need to be assigned the li role. For a non-distributed setup, the proxy nodes need to be assigned the li role.

From the user and program point of view, the li role will only be visible in a node if the intercept.enable setting is set to 'yes'. When the cluster is set up in a distributed mode (that is cluster_sets.type is set to 'distributed'), the nodes will also have the li_dist virtual role visible (which is synthesized at run-time and cannot be specified in the node configuration), so that these can check for a single condition instead of multiple.

Here below is a sample configuration, which shows parameters of intercept and voisniff sections.

On a CARRIER it would look like:

intercept:
  enable: yes
  local: no
  peer:
    acc: no
    inbound_prefix: LI_
    outbound_prefix: intercept_
  type: voisniff

voisniff:
  admin_panel: no
  daemon:
    custom_bpf: ''
    filter:
      exclude:
      - active: '0'
        case_insensitive: '1'
        pattern: '\ncseq: *\d+ +(register|notify|options)'
      include: []
      sip_ports:
      - 5060
      - 5062
    interfaces:
      extra: []
      types:
      - sip_int
      - sip_ext
      - rtp_ext
    li_x1x2x3:
      call_id:
        del_patterns:
        - _pbx\-1(?:_[0-9]{1,10})?$
        - _b2b\-1(?:_[0-9]{1,10})?$
        - _xfer\-1(?:_[0-9]{1,10})?$
      captagent:
        cin_max: '3000'
        cin_min: '0'
        x2:
          threads: 20
      client_certificate: /etc/ngcp-config/ssl/li/x23_client/x23_client_cert.pem
      enable: yes
      fix_checksums: no
      fragmented: no
      interface:
        excludes: []
      local_name: sipwise
      private_key: /etc/ngcp-config/ssl/li/x23_client/x23_client_cert_priv_key.pem
      split_intercept: no
      x1:
        port: '18090'
      x23:
        protocol: sipwise
    mysql_dump:
      enable: no
      max_query_len: 67108864
      num_threads: '4'
    rtp_filter: yes
    start: yes
    threads_per_interface: '10'
  partitions:
    increment: '700000'
    keep: '10'

On a PRO it would look like:

intercept:
  enable: no
  local: no
  peer:
    acc: no
    inbound_prefix: LI_
    outbound_prefix: intercept_
  type: none

voisniff:
  admin_panel: yes
  daemon:
    custom_bpf: ''
    filter:
      exclude:
      - active: '0'
        case_insensitive: '1'
        pattern: '\ncseq: *\d+ +(register|notify|options)'
      include: []
      sip_ports:
      - 5060
      - 5062
    interfaces:
      extra: []
      types:
      - sip_int
      - sip_ext
      - rtp_ext
    li_x1x2x3:
      call_id:
        del_patterns:
        - _pbx\-1(?:_[0-9]{1,10})?$
        - _b2b\-1(?:_[0-9]{1,10})?$
        - _xfer\-1(?:_[0-9]{1,10})?$
      captagent:
        cin_max: '3000'
        cin_min: '0'
        x2:
          threads: 20
      client_certificate: ''
      enable: no
      fix_checksums: no
      fragmented: no
      interface:
        excludes: []
      local_name: sipwise
      split_intercept: no
      x1:
        port: '18090'
      x23:
        protocol: sipwise
    mysql_dump:
      enable: yes
      max_query_len: 67108864
      num_threads: '4'
    rtp_filter: yes
    start: yes
    threads_per_interface: '2'
  partitions:
    increment: '700000'
    keep: '10'

Configuration Parameters

intercept.enable

Set it to yes if you want to activate LI service. Default: no

intercept.local

On CARRIER systems, if set to yes, intercept data will be stored on the local system instead of the central database node.

intercept.peer.acc

Calls to be intercepted may be forwarded to LI peers. The LI peer may forward the call to the original destination, without looping the call back to NGCP. Set this parameter to yes if you want to enable billing for such calls. Default: no

intercept.peer.inbound_prefix

Calls to be intercepted may be forwarded to LI peers. This parameter specifies the prefix that is prepended to SIP usernames when the call is looped back to NGCP, in order to avoid sending the call again to any LI peer. Used by Sipwise C5 internally. Default: LI_

intercept.peer.outbound_prefix

Calls to be intercepted may be forwarded to LI peers. This parameter specifies the prefix that is prepended to SIP usernames when the call is routed to an LI peer. It will be stripped off by rewrite rules of the peer, before sending the call effectively to the peer. Used by Sipwise C5 internally. Default: intercept_

intercept.type

The LI service provider module; allowed values are:

none: LI service is not activated
peer: LI service is activated and call data capturing is performed by SIP peers
voisniff: LI service is activated and call data capturing is performed by the voisniff module

Default: none

voisniff.admin_panel

voisniff.daemon.mysql_dump.*

voisniff.partitions.*

These parameters are not used in LI configuration, but only for call statistics which can be retrieved through the Admin web interface.

voisniff.daemon.custom_bpf

Allows the operator to set a custom packet filter to be used when capturing packets no the network interfaces, overriding the default packet filter generated by the system based on other configuration settings (port ranges, etc). It’s not normally necessary to set this. Default: empty

voisniff.daemon.filter.exclude

Additional filter to determine packets that need to be excluded from capturing. This configuration parameter is a list of items, each of them has 3 components:

active: Determines whether the filter is active or not. Allowed values are: 0 (false/inactive; this is the default) or 1 (true/active).
case_insensitive: Determines whether the pattern is case-insensitive (1; this is the default) or not (0).
pattern: A regular expression providing the matching pattern for packets that have to be filtered.

voisniff.daemon.filter.include

Additional filter to determine packets that need to be included in capturing. The parameter has the same syntax as voisniff.daemon.filter.exclude.

voisniff.daemon.filter.sip_ports

A list of ports that should be considered to carry SIP traffic. Intercepted packets that do not involve one of these ports will not be attempted to be parsed as SIP packets. This filter can be disabled by having this list empty. Default: 5060 and 5062

voisniff.daemon.interfaces.extra

This is a list of additional network interfaces (typically VLAN IDs) where ngcp-voisniff should listen for and capture packets. These interfaces are in addition to the list of interfaces generated by the system based on the interface types (see below).

VLAN interfaces have to be listed when they are used for intercepted calls. On the other hand virtual interfaces for additional IP addresses (e.g. eth0:1) do not have to be listed separately, because the base interface (e.g. eth0) will be used to capture packets.

voisniff.daemon.interfaces.types

A list of network interface types that should be activated for interception. All interfaces that match the given types will be activated. Default: sip_int, sip_ext, and rtp_ext

voisniff.daemon.li_x1x2x3.call_id.del_patterns

List of NGCP-internal Call-ID suffix patterns that should be ignored when determining the original SIP Call-ID of an intercepted call.

Please do not change these patterns unless instructed to do so by a Sipwise engineer! Changing the patterns may result in falsely recognised Call-IDs and eventually missed SIP messages during an intercepted call.

voisniff.daemon.li_x1x2x3.captagent.cin_min

voisniff.daemon.li_x1x2x3.captagent.cin_max

When using the captagent-compatible protocol, this specifies the range of intercept ID numbers (CIN) to be generated. Default: 0 through 3000

voisniff.daemon.li_x1x2x3.captagent.x2.threads

When using the captagent-compatible protocol, this specifies the number of threads to be used for sending outgoing X2 (SIP) captures. Interception may stall if this number if set too low. Default: 20

voisniff.daemon.li_x1x2x3.client_certificate

The client certificate that Sipwise C5 uses to connect over TLS to a 3rd party LI provider. Relevant only when using the sipwise outbound protocol.

voisniff.daemon.li_x1x2x3.enable

Set it to yes to enable LI services via X1, X2 and X3 interfaces. Default: no

voisniff.daemon.li_x1x2x3.fix_checksums

When enabled (= yes), Sipwise C5 will calculate UDP header checksum for packets sent out on X2 and X3 interfaces. This is necessary when the checksum calculation is normally left to the network interface hardware and therefore the UDP header checksum is inherently incorrect on application level. Also the UDP checksum must be calculated by ngcp-voisniff on re-assembled packets, so enable this option if there are fragmented packets in intercepted call traffic. Default: disabled (= no)

voisniff.daemon.li_x1x2x3.fragmented

When disabled (= no), ngcp-voisniff defragments all packets and sends out only reassembled packets via X2 and X3 interfaces. If the option is enabled (= yes), ngcp-voisniff will instead send out the original fragments via X2 and X3. Default: no

voisniff.daemon.li_x1x2x3.instant_intercept

When disabled (= no), creating a new interception object does not affect already running calls. In other words, if a call that is already running matches the parameters by a newly created interception object, that call will not start to be intercepted, only new calls established afterwards will. Enabling this option changes this behaviour so that already running calls will also start to be intercepted at the moment when a new interception object is created. Doing so creates additional processing overhead within ngcp-voisniff. Default: no

voisniff.daemon.li_x1x2x3.interface.excludes

This is a list of interfaces that must be excluded from the interception procedures. The list contains regular expressions that describe the to-be-exluded interfaces, for example: - ^lo$ to exclude the loopback interface. Default: empty list

voisniff.daemon.li_x1x2x3.local_name

This parameter maps to the header.source field of the X2 protocol. It’s an arbitrary string and can be used to identify the sending Sipwise C5 system. Default: sipwise

As of Sipwise C5 version mr4.5.2, this is currently not used.

voisniff.daemon.li_x1x2x3.private_key

The private key that Sipwise C5 uses to connect over TLS to a 3rd party LI provider. Only necessary if the client certificate file does not include the private key.

voisniff.daemon.li_x1x2x3.split_intercept

When enabled (= yes), ngcp-voisniff uses the Split-LI algorithm to detect which calls have to be intercepted. This algorithm should be enabled only on CARRIER systems with a central core and local satellites architecture and ngcp-voisniff running on LB nodes. Default: no

voisniff.daemon.li_x1x2x3.x1.port

The port number on which ngcp-voisniff listens for incoming X1 messages. Default: 18090

You should leave the parameter set to the default value, unless there is a good reason to change it.

voisniff.daemon.li_x1x2x3.x23.protocol

Specified the outbound protocol to speak when delivering X2 (SIP) or X3 (RTP) data. This can be either the sipwise protocol using TLS connections, or the captagent compatible protocol using HTTP and UDP. Default: sipwise

voisniff.daemon.mysql_dump.enable

Master switch for call statistics collection. Default: yes

voisniff.daemon.mysql_dump.max_query_len

Determines how much data should be gathered into a single statement for insertion into the database. This should not normally be changed. Default: 67108864

voisniff.daemon.mysql_dump.num_threads

The number of threads dedicated to inserting data into the database. Default: 4

voisniff.daemon.rtp_filter

Determined whether to intercept RTP packets or not. Enabling the filter (set to yes) suppresses interception of RTP packets. Disabling it (no) enabled interception of RTP packets. Default: yes

voisniff.daemon.start

Determines whether voisniff service must be started on the platform. Set it to yes if you’d like to activate voisniff that is needed for LI service too. Default: no (on CARRIER), yes (on PRO)

voisniff.daemon.threads_per_interface

This is a performance tuning option and controls how many threads per enabled sniffing interface should be launched. Example: if it’s set to 10 and 3 interfaces are enabled for sniffing, a total of 30 threads will be launched. Default: 2

Do not set it to a high number, or leave it at its default value, unless there is a performance problem with voisniff service. Please keep in mind that a high number of threads might also decrease the overall system performance of NGCP!

X1, X2 and X3 Interface Specification

Short description of Xn interfaces:

The X1 interface is used by an LI provider to create, modify, delete and list interceptions on Sipwise C5 . It is designed as RESTful HTTP interface using JSON (with JSON-HAL in responses from the NGCP) as content type to provision interceptions.
The X2 interface is a TLV based interface with JSON payload with a simple request/response mechanism over a secure TLS connection, used to pass intercepted signaling data towards an LI provider.
The X3 interface is also a TLV based interface with a binary payload encapsulating the intercepted RTP data.

X1 Interface

The resource used to work with interceptions is always https://ngcp-ip:1443/api/interceptions/

Authentication

Authentication and authorization on Sipwise C5 API is performed via HTTP Basic Auth or SSL Client certificates.

HTTP Basic Auth: With cURL use --user username:password option to specify your access credentials.
```
curl -i -X GET --user myuser:mypassword https://example.org:1443/api/interceptions/
```
Additionally use the --insecure option if you are testing against a self-signed server certificate.
SSL Client Authentication: You can generate and download client certificates for administrators and resellers via Sipwise C5 Panel in the Administrators view.
For the actual client authentication, you will need two files which you can download from the panel after creating the client certificates:
1. The client certificate generated via Sipwise C5 Panel. This is usually labelled NGCP-API-client-certificate-xxxxx.pem.
2. The CA certificate used to sign the server certificate, in case it as been self-signed or the CA is not recognized by the client host environment.
With cURL use --cert /path/to/NGCPAPIclientcertificatexxxxx.pem to specify the client certificate, and --cacert /path/to/cacert.pem to specify the CA certificate in case of a self-signed server certificate.
curl -i -X GET --cert /path/to/NGCPAPIclientcertificatexxxxx.pem \ --cacert /path/to/cacert.pem https://example.org:1443/api/interceptions/
Additionally use the --insecure option if you are testing against a self-signed server certificate.

API Description

Collection Actions

Allowed methods for the collection as in METHOD /api/interceptions/

OPTIONS
POST
GET
HEAD

Item Actions

Allowed methods for a collection item as in METHOD /api/interceptions/id

PATCH
OPTIONS
DELETE
PUT
GET
HEAD

Properties

liid (Number): The LI ID for this interception.
number (String): The number to intercept.
x2_host (String): The IP address of the X2 interface.
x2_password (null, String): The password for authenticating on the X2 interface.
x2_port (Number): The port of the X2 interface.
x2_user (null, String): The username for authenticating on the X2 interface.
x3_host (null, String): The IP address of the X3 interface.
x3_port (null, Number): The port of the X3 interface.
x3_required (null, Boolean): Whether to also intercept call content via X3 interface (false by default).

Query Parameters

liid: Filter for interceptions of a specific interception ID
number: Filter for interceptions of a specific number (in E.164 format)
order_by: Order collection by a specific attribute. Possible values are: id, reseller_id, liid, number, cc_required, delivery_host, delivery_port, delivery_user, delivery_pass, modify_timestamp, create_timestamp, deleted, uuid, sip_username, sip_domain, cc_delivery_host, cc_delivery_port
order_by_direction: Direction which the collection should be ordered by. Possible values are: asc (default), desc

API Examples

Get a specific interception

Request:

curl -i --insecure --user administrator:administrator -X GET
https://localhost:1443/api/interceptions/528

Response:

HTTP/1.1 200 OK
Server: nginx
Date: Tue, 01 Dec 2015 09:43:41 GMT
ContentType: application/hal+json; profile="http://purl.org/sipwise/ngcpapi/";
  charset=utf8
ContentLength: 634
Connection: keepalive
Link: </api/interceptions/>; rel=collection
Link: <http://purl.org/sipwise/ngcpapi/>; rel=profile
Link: </api/interceptions/528>; rel="item self"
SetCookie: ngcp_panel_session=35b56d921c36c1fc6edb8fcd0a86dd9af61ec62a; path=/;
  expires=Tue, 01Dec 2015 10:43:41 GMT; HttpOnly
StrictTransportSecurity: maxage=15768000
  {
    "_links" : {
      "collection" : {
        "href" : "/api/interceptions/"
      },
      "curies" : {
        "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
        "name" : "ngcp",
        "templated" : true
      },
      "profile" : {
        "href" : "http://purl.org/sipwise/ngcpapi/"
      },
      "self" : {
        "href" : "/api/interceptions/528"
      }
    },
    "id" : 528,
    "liid" : 918273,
    "number" : "0014155550132",
    "x2_host" : "192.168.42.42",
    "x2_password" : null,
    "x2_port" : 3002,
    "x2_user" : null,
    "x3_host" : "192.168.42.42",
    "x3_port" : 3003,
    "x3_required" : true
  }

Get all interceptions for a number

Request:

curl -i --insecure --user administrator:administrator -X GET \
https://localhost:1443/api/interceptions/?number=0014155550132

Response:

HTTP/1.1 200 OK
Server: nginx
Date: Tue, 01 Dec 2015 09:47:36 GMT
ContentType: application/hal+json; profile="http://purl.org/sipwise/ngcpapi/";
  charset=utf8
ContentLength: 1283
Connection: keepalive
SetCookie: ngcp_panel_session=238550c5737058db619b183d925b5f9a61261cfe; path=/;
  expires=Tue, 01 Dec 2015 10:47:36 GMT; HttpOnly
StrictTransportSecurity: maxage=15768000
{
   "_embedded" : {
      "ngcp:interceptions" : {
         "_links" : {
            "collection" : {
               "href" : "/api/interceptions/"
            },
            "curies" : {
               "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
               "name" : "ngcp",
               "templated" : true
            },
            "profile" : {
               "href" : "http://purl.org/sipwise/ngcpapi/"
            },
            "self" : {
               "href" : "/api/interceptions/520"
            }
         },
         "id" : 520,
         "liid" : 1,
         "number" : "0014155550132",
         "x2_host" : "192.168.42.42",
         "x2_password" : null,
         "x2_port" : 3002,
         "x2_user" : null,
         "x3_host" : "192.168.42.42",
         "x3_port" : 3003,
         "x3_required" : true
      }
   },
   "_links" : {
      "curies" : {
         "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
         "name" : "ngcp",
         "templated" : true
      },
      "ngcp:interceptions" : {
         "href" : "/api/interceptions/520"
      },
      "profile" : {
         "href" : "http://purl.org/sipwise/ngcpapi/"
      },
      "self" : {
         "href" : "/api/interceptions/?page=1&rows=10"
      }
   },
   "total_count" : 1
}

Get all interceptions for all numbers

Request:

curl -i --insecure --user administrator:administrator -X GET \
https://localhost:1443/api/interceptions/

Response:

HTTP/1.1 200 OK
Server: nginx
Date: Tue, 01 Dec 2015 09:43:18 GMT
ContentType: application/hal+json; profile="http://purl.org/sipwise/ngcpapi/";
  charset=utf8
ContentLength: 2364
Connection: keepalive
SetCookie: ngcp_panel_session=68398eea5bdd3885ad0517e1f6d367ccc80111fa; path=/;
  expires=Tue, 01 Dec 2015 10:43:18 GMT; HttpOnly
StrictTransportSecurity: maxage=15768000
{
   "_embedded" : {
      "ngcp:interceptions" : [
         {
            "_links" : {
               "collection" : {
                  "href" : "/api/interceptions/"
               },
               "curies" : {
                  "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
                  "name" : "ngcp",
                  "templated" : true
               },
               "profile" : {
                  "href" : "http://purl.org/sipwise/ngcpapi/"
               },
               "self" : {
                  "href" : "/api/interceptions/520"
               }
            },
            "id" : 520,
            "liid" : 1,
            "number" : "0014155550132",
            "x2_host" : "192.168.42.42",
            "x2_password" : null,
            "x2_port" : 3002,
            "x2_user" : null,
            "x3_host" : "192.168.42.42",
            "x3_port" : 3003,
            "x3_required" : true
         },
         {
            "_links" : {
               "collection" : {
                  "href" : "/api/interceptions/"
               },
               "curies" : {
                  "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
                  "name" : "ngcp",
                  "templated" : true
               },
               "profile" : {
                  "href" : "http://purl.org/sipwise/ngcpapi/"
               },
               "self" : {
                  "href" : "/api/interceptions/528"
               }
            },
            "id" : 528,
            "liid" : 918273,
            "number" : "0014155550132",
            "x2_host" : "192.168.42.42",
            "x2_password" : null,
            "x2_port" : 3002,            "x2_user" : null,
            "x3_host" : "192.168.42.42",
            "x3_port" : 3003,
            "x3_required" : true
         }
      ]
   },
   "_links" : {
      "curies" : {
         "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
         "name" : "ngcp",
         "templated" : true
      },
      "ngcp:interceptions" : [
         {
            "href" : "/api/interceptions/520"
         },
         {
            "href" : "/api/interceptions/528"
         }
      ],
      "profile" : {
         "href" : "http://purl.org/sipwise/ngcpapi/"
      },
      "self" : {
         "href" : "/api/interceptions/?page=1&rows=10"
      }
   },
   "total_count" : 2
}

Get interception for specific LIID

Request:

curl -i --insecure --user administrator:administrator -X GET \
https://localhost:1443/api/interceptions/?liid=9876

Response:

HTTP/1.1 200 OK
Server: nginx
Date: Tue, 01 Dec 2015 09:50:41 GMT
ContentType: application/hal+json; profile="http://purl.org/sipwise/ngcpapi/";
  charset=utf8
ContentLength: 1283
Connection: keepalive
SetCookie: ngcp_panel_session=23960dde6bb90f0c5c84575890194c53cce120ce; path=/;
  expires=Tue, 01 Dec 2015 10:50:40 GMT; HttpOnly
StrictTransportSecurity: maxage=15768000
{
   "_embedded" : {
      "ngcp:interceptions" : {
         "_links" : {
            "collection" : {
               "href" : "/api/interceptions/"
            },
            "curies" : {
               "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
               "name" : "ngcp",
               "templated" : true
            },
            "profile" : {
               "href" : "http://purl.org/sipwise/ngcpapi/"
            },
            "self" : {
               "href" : "/api/interceptions/520"
            }
         },
         "id" : 520,
         "liid" : 1,
         "number" : "0014155550132",
         "x2_host" : "192.168.42.42",
         "x2_password" : null,
         "x2_port" : 3002,
         "x2_user" : null,
         "x3_host" : "192.168.42.42",
         "x3_port" : 3003,
         "x3_required" : true
      }
   },
   "_links" : {
      "curies" : {
         "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
         "name" : "ngcp",
         "templated" : true
      },
      "ngcp:interceptions" : {
         "href" : "/api/interceptions/520"
      },
      "profile" : {
         "href" : "http://purl.org/sipwise/ngcpapi/"
      },
      "self" : {
         "href" : "/api/interceptions/?page=1&rows=10"
      }
   },
   "total_count" : 1
}

Create interception for a specific number

Request:

curl -i --insecure --user administrator:administrator -X POST \
-H "ContentType: application/json" --data \
'{"liid":123, "number":"31032222203", "x2_host":"127.0.0.1", "x2_port":12345,
  "x3_required":true, "x3_host":"127.0.0.2", "x3_port":23456}' \
https://localhost:1443/api/interceptions/

Response:

HTTP/1.1 201 Created
TransferEncoding: chunked
Connection: close
Location: /api/interceptions/528
SetCookie: ngcp_panel_session=e7817079d121fae4d86448b10e1fa21d0201c526; path=/;
  expires=Tue, 01 Dec 2015 10:43:18 GMT; HttpOnly
StrictTransportSecurity: maxage=15768000

The path to the newly created interception is found in the Location header of the response.

Update specific interception

Request:

curl -i --insecure --user administrator:administrator -X PUT \
-H "ContentType: application/json" -H 'Prefer: return=representation' --data \
'{"liid":918273, "number":"0014155550132", "x2_host":"192.168.42.42", "x2_port":5000,
  "x3_required":false}' \
https://localhost:1443/api/interceptions/123

Response:

HTTP/1.1 200 OK
ContentType: application/hal+json; profile="http://purl.org/sipwise/ngcpapi/";
  charset=utf8
ContentLength: 621
Link: </api/interceptions/>; rel=collection
Link: <http://purl.org/sipwise/ngcpapi/>; rel=profile
Link: </api/interceptions/530>; rel=self
PreferenceApplied: return=representation
SetCookie: ngcp_panel_session=0b56e4a197b0e9f6e22a998e85473a0184770740; path=/;
  expires=Tue, 01 Dec 2015 10:56:17 GMT; HttpOnly
{
   "_links" : {
      "collection" : {
         "href" : "/api/interceptions/"
      },
      "curies" : {
         "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
         "name" : "ngcp",
         "templated" : true
      },
      "profile" : {
         "href" : "http://purl.org/sipwise/ngcpapi/"
      },
      "self" : {
         "href" : "/api/interceptions/530"
      }
   },
   "id" : 530,
   "liid" : 918273,
   "number" : "0014155550132",
   "x2_host" : "192.168.42.42",
   "x2_password" : null,
   "x2_port" : 5000,
   "x2_user" : null,
   "x3_host" : null,
   "x3_port" : null,
   "x3_required" : false
}

The Prefer: return=representation header forces the API to return the content, otherwise status 201 with no content is returned.

Update only certain items for a specific interception

Request:

curl -i --insecure --user administrator:administrator -X PATCH \
-H "ContentType: application/jsonpatch+json" -H 'Prefer: return=representation' \
--data '[{"op":"replace", "path":"/x2_host", "value":"192.168.42.42"},{"op":"replace",
  "path":"/x2_port", "value":4000}]' \
https://localhost:1443/api/interceptions/530

Response:

HTTP/1.1 200 OK
Server: nginx
Date: Tue, 01 Dec 2015 10:06:06 GMT
ContentType: application/hal+json; profile="http://purl.org/sipwise/ngcpapi/";
  charset=utf8
ContentLength: 620
Connection: close
Link: </api/interceptions/>; rel=collection
Link: <http://purl.org/sipwise/ngcpapi/>; rel=profile
Link: </api/interceptions/530>; rel=self
PreferenceApplied: return=representation
SetCookie: ngcp_panel_session=0693129d63d543a85f96d464ff9a8f807cfc4d18; path=/;
  expires=Tue, 01 Dec 2015 11:06:06 GMT; HttpOnly
StrictTransportSecurity: maxage=15768000
{
   "_links" : {
      "collection" : {
         "href" : "/api/interceptions/"
      },
      "curies" : {
         "href" : "http://purl.org/sipwise/ngcpapi/#rel{rel}",
         "name" : "ngcp",
         "templated" : true
      },
      "profile" : {
         "href" : "http://purl.org/sipwise/ngcpapi/"
      },
      "self" : {
         "href" : "/api/interceptions/530"
      }
   },
   "id" : 530,
   "liid" : 918273,
   "number" : "0014155550132",
   "x2_host" : "192.168.42.42",
   "x2_password" : null,
   "x2_port" : 4000,
   "x2_user" : null,
   "x3_host" : null,
   "x3_port" : null,
   "x3_required" : false
}

Delete specific interception

Request:

curl -i --insecure --user administrator:administrator -X DELETE \
https://localhost:1443/api/interceptions/123

Response:

HTTP/1.1 204 No Content
Server: nginx
Date: Tue, 01 Dec 2015 10:08:49 GMT
Connection: keepalive
SetCookie: ngcp_panel_session=570c66b66732629766f86b8ed9bd0d64902ae73e; path=/;
  expires=Tue, 01 Dec 2015 11:08:49 GMT; HttpOnly
XCatalyst: 5.90042
StrictTransportSecurity: maxage=15768000

X2 Interface

The communication via the X2 interface consists of request-response pairs.

Request

The request is formatted as: X2/<bodylength>/<body>

Body part has the following items:

Table 2. X2 Message Body Items
Element	Type	Length	Description
/x2/header/source	String	arbitrary length	identifier of Sipwise node which captured the data
/x2/header/destination	String	arbitrary length	identifier of LI mediation system
/x2/header/type	String	arbitrary length	always "sip" (but later potentially "xmpp" and others too)
/x2/header/version	PosInteger	arbitrary length	always "1"
/x2/header/timestamp	String	27 chars	format: YYYY-MM-DDThh:mm:ss.ffffffZ; timestamp in UTC when the X2 package is sent to mediation
/x2/body/dialogid	PosInteger	arbitrary length	globally increasing counter for each new communication dialog (e.g. call)
/x2/body/messageid	PosInteger	arbitrary length	increasing counter for each new x2 message within a dialog, starting from 0
/x2/body/timestamp	String	27 chars	format: YYYY-MM-DDThh:mm:ss.ffffffZ; timestamp in UTC when the package has been captured on the wire
/x2/body/interceptions			one or more elements containing the following information, one element per intercepted target:
/x2/body/interceptions/liid	PosInteger	arbitrary length	interception id ("liid") as set via X1 interface
/x2/body/interceptions/direction	String	arbitrary length	either "totarget" or "fromtarget" from the soft-switch perspective (if target is the called party, it is "totarget", if target is the calling party, it is "fromtarget").
/x2/body/data	Base64 encoded	arbitrary	content of full IP frame and up on the OSI layer; packets fragmented on the wire are provided in fully assembled format

Example of full message:

X2/418/
{
  "header": {
    "source": "prx01a.example.com",
    "destination": "x2destination.example.com",
    "type": "sip",
    "version": 1,
    "timestamp": "20150311T09:18:04.729803Z"
  },
  "body": {
    "dialogid": 4,
    "messageid": 0,
    "timestamp": "20150311T09:18:04.729123Z",
    "interceptions": [
      { "liid": 174, "direction": "fromtarget" },
      { "liid": 175, "direction": "totarget" }
    ],
    "data": "<base64 encoded ip,udp/tcp,sip frame>"
  }
}

Response

Success: X2-ACK/0/
Error: X2-ERR/<length>/<error string>

Keep-Alive Mechanism

A regular keep-alive mechanism with a default value of 10s is used on the connection if it is re-used across multiple messages.

Request: X2/0/
Response: X2-ACK/0/

X3 Interface

On the X3 interface TLV based packets are sent via secured (TLS) connection on a pre-established stream. X3 messages do not need to be acknowledged, except for keep-alive messages.

X3 Message Structure

Table 3. X3 Message Structure
Field	Length
Header	arbitrary
CCCID	4 bytes
MessageId	4 bytes
Timestamp	8 bytes
Payload	arbitrary

Header Details

Table 4. X3: Header Details
Field	Length	Content
type	2 bytes	always "X3"
delimiter	1 byte	always "/"
length	arbitrary	ASCII string
delimiter	1 byte	always "/"

CCCID Details

dialogid (32 bit in network byte order, reset to 0 after 2³²-1)

The dialogid is referencing the /x2/body/dialogid field in order to correlate an X3 packet to an X2 call.

MessageId Details

messageid (32 bit in network byte order, reset to 0 after 2³²-1)

The messageid is a counter within a dialog sequencing the X3 packets sent from the NGCP. This counter is not correlated in any way with X2, rather than starting at 0 with the first RTP packet captured within a dialog.

Timestamp Details

seconds (32 bit in network byte order)
fraction (32 bit in network byte order)

The timestamp represents the Unix epoch starting from 1970-01-01.

Payload Details

Table 5. X3: Payload Details
Field	Length
original ip header	20 bytes for v4, 40 bytes for v6
original udp header	8 bytes
original rtp header	variable, 12-72 bytes
original rtp payload	arbitrary

Keep-Alive Mechanism

A regular keep-alive mechanism with a default value of 10s is used on the connection if it is re-used across multiple messages.

Request: X3/0/
Response: X3-ACK/0/

3rd Party Call Control

Introduction

The Sipwise C5 offers the possibility to perform call control through 3rd party applications. This functionality, called Party Call Control and referred to as "PCC" throughout this handbook, is available since mr5.1.1 release.

Incoming calls to local subscribers may be signalled to a 3rd party CAC (Call Admission Control) server. Before accepting (that is: sending the SIP INVITE request to the called subscriber) or rejecting the call, Sipwise C5 will wait for an explicit reply from the CAC / PCC server, or a timeout.

Short Messages received by Sipwise C5 for a local subscriber may also be signalled to the PCC server. After an explicit reply with "accepted" status from the PCC server, Sipwise C5 will forward the SM to the final recipient.

Sipwise C5 does not support delivering SMs to the local subscribers directly. Local subscribers can define a Call Forward for SMS instead, thus allowing themselves to receive SMs on their mobile phones.

3rd party call control may be implemented in many ways, such as by server-side or client-side applications (e.g. smartphone app).

Please note that Sipwise C5 implements a proprietary protocol for PCC deployments and adapting the protocol to customer needs requires software development from Sipwise.

Details of Call Processing with PCC

Overview

The following figure presents the schema of incoming call processing when PCC is involved:

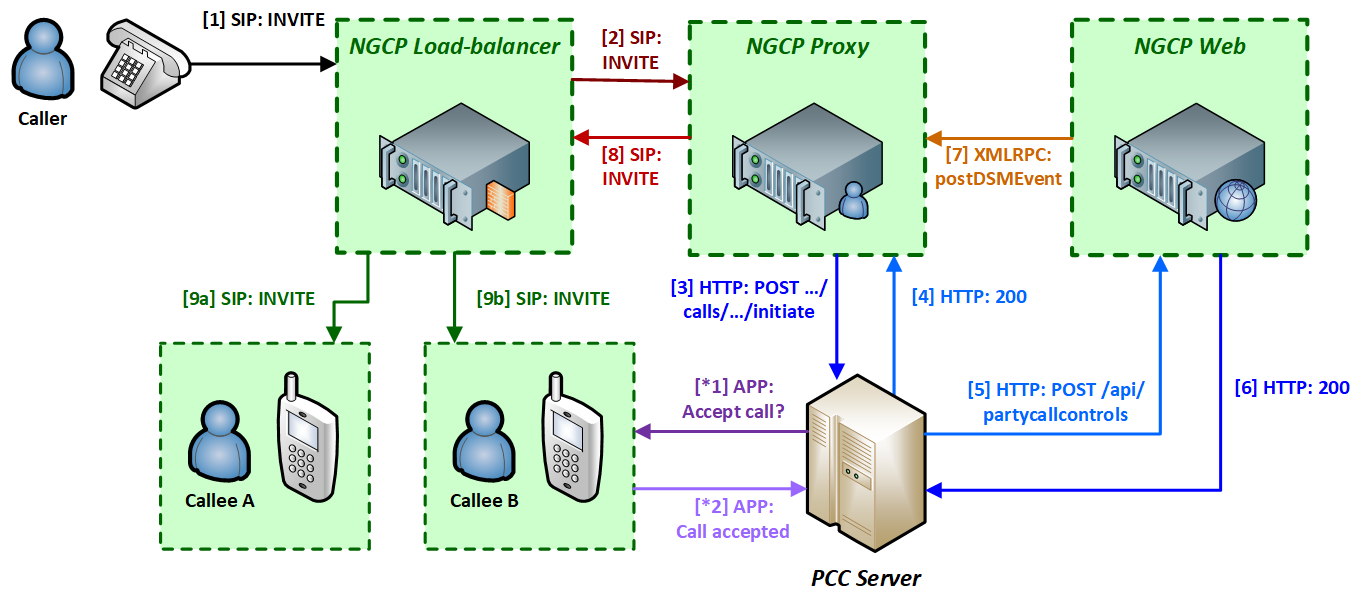

Figure 82. Overview of Party Call Control

The messages / interactions of PCC call processing are:

Sipwise C5 Load-Balancer receives a SIP INVITE message from the caller.
The LB forwards the INVITE to the PROXY component as usual with every incoming call.
The PROXY (kamailio-proxy module) checks whether the called subscriber has the PCC feature activated. If this is the case, it will send an HTTP POST or GET request (configurable) to the PCC server with the most important details of the call (such as calling and called party numbers, call-ID, a token for internal identification of the session).
The PCC server replies with 200 OK HTTP status in order to indicate that it understood the request and will provide the final status (such as ACCEPTED or REJECTED) of the call later.
- Optional:
  - *1) The PCC server requests the subscriber’s confirmation to accept the call for instance via a smartphone app.
  - *2) The subscriber indicates accepting the call to the PCC server.
The PCC server send an HTTP POST request to the WEB component of NGCP, using Sipwise C5 REST API, to signal accepting the call.
The WEB will reply with 200 OK HTTP status.
The WEB sends an internal XMLRPC request to PROXY indicating that the incoming call can be accepted.
The PROXY sends the SIP INVITE message to the LB, i.e. it continues the call setup as usual.
The LB sends the INVITE to the subscriber.

There are more software modules within NGCP’s components and those are shown separately on the diagrams in following sections of the handbook. For instance the PROXY component has the kamailio-proxy and sems-b2b modules.

Successful Call Initiation at PCC Server

A subscriber with PCC activated will not receive the SIP INVITE request directly, but only after a series of intermediate CAC (Call Admission Control) steps, involving Sipwise C5 Proxy and the PCC server. First of those steps is the call initiation at the PCC server:

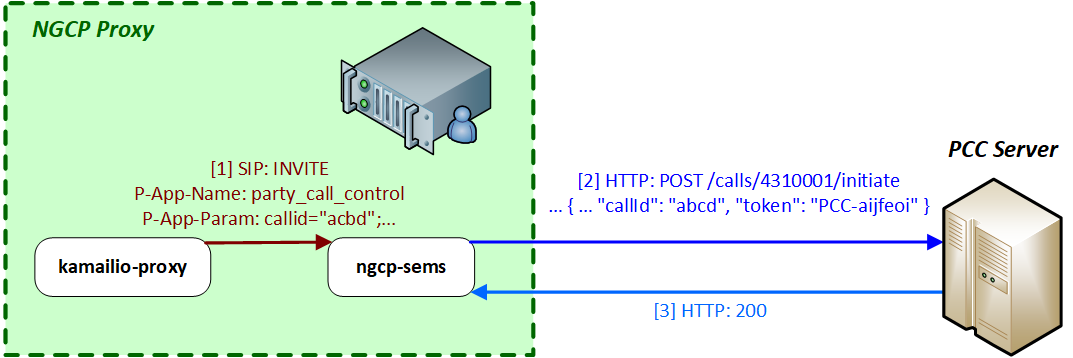

Figure 83. Successful Call Initiation with PCC

When kamailio-proxy receives the INVITE request from Sipwise C5 LB, it will forward the message to sems-b2b module with 2 private SIP headers:
```
P-App-Name: party_call_control
P-App-Param: callid="acbd";caller="4369912345";callee="4310001";caller_clir="0";
```
These headers will activate the PCC function in sems-b2b and it will send an HTTP POST request to the PCC server, instead of creating the second call leg directly towards Sipwise C5 LB. An example of such a request (not all details included):
```
POST /calls/4310001/initiate HTTP/1.1
Content-Type: application/json

{
  "actualMsisdn": 4369912345,
  "callingMsisdn": 4310001,
  "actualClir": 0,
  "callId": "abcd",
  "token": "PCC-aijfeoi"
}
```
where:
- actualMsisdn: calling party number
- callingMsisdn: called party number
- actualClir: non-0 if CLIR is active
- callid: the SIP Call-ID
- token: a generated token that identifies the session between Sipwise C5 and the PCC server

  The target URL has the format: /calls/<called_party_num>/**initiate**
The PCC server replies with HTTP 200 OK if it understood the request and can proceed with working on that.

Call Initiation at PCC Server with Error

The sems-b2b module on Sipwise C5 Proxy will wait for a response from PCC server, once it has sent the "initiate" request to it. If the PCC server responds with an HTTP error status, such as any 4xx, then sems-b2b reports the error condition of PCC server with a SIP 487 Request Terminated reply to kamailio-proxy.

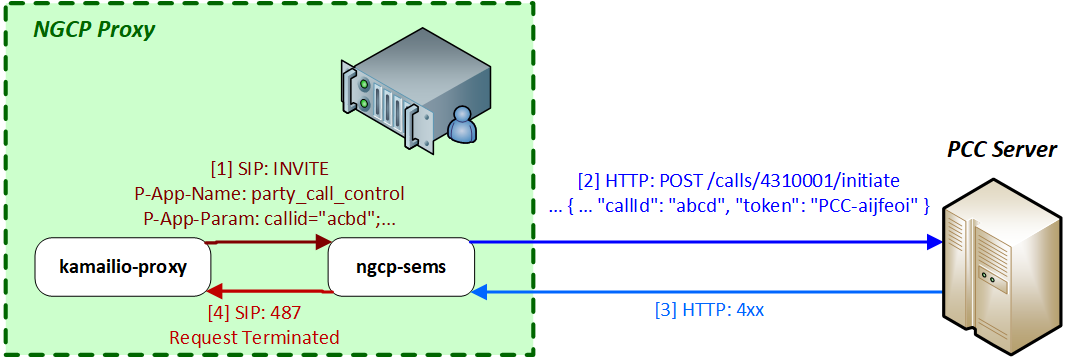

Figure 84. Call Initiation Error with PCC

Call Initiation at PCC Server with Timeout

The sems-b2b module on Sipwise C5 Proxy will wait for a response from PCC server, once it has sent the "initiate" request to it. If the PCC server does not respond with HTTP 200 OK within 30 seconds (configurable) then sems-b2b considers the PCC is not available. In such a case sems-b2b sends a SIP 408 Timeout reply to kamailio-proxy.

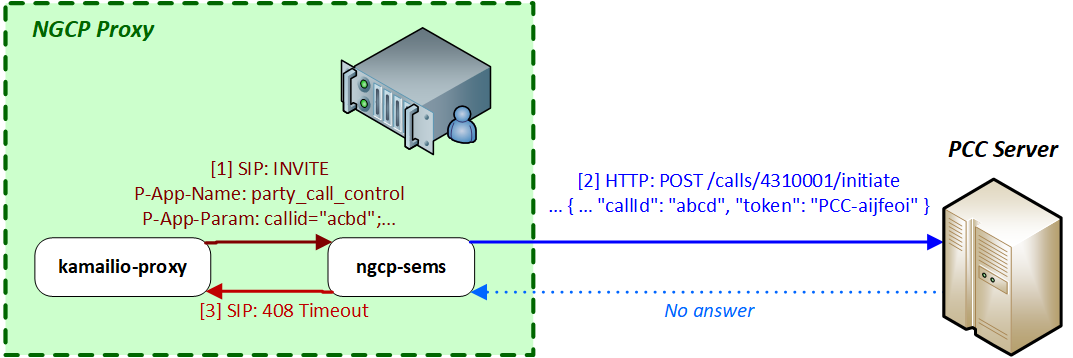

Figure 85. Call Initiation Timeout with PCC

Call Accepted by PCC Server

If the PCC server (eventually this may also be the called subscriber) accepts the call, the PCC server will send an HTTP POST request to the REST API interface of Sipwise C5 (Web/Management component). This request must contain a status field with the content ACCEPT (configurable) so that Sipwise C5 continues the call setup towards called party. Example:

POST /api/partycallcontrols HTTP/1.1
Content-Type: application/json

{
  "type": "pcc",
  "caller": 4369912345,
  "callee": 4310001,
  "status": "ACCEPT",
  "callId": "abcd",
  "token": "PCC-aijfeoi"
}

The target URL of the request: /api/**partycallcontrols**. The **type** parameter must have a value of **pcc**.

You can see the flow of messages in the diagram below:

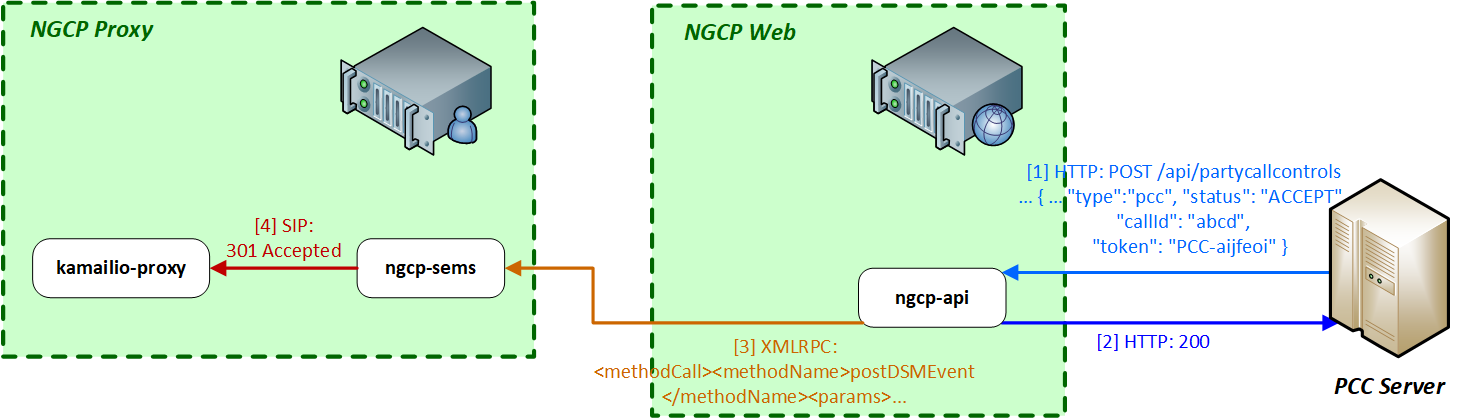

Figure 86. Call Accepted by PCC

The PCC server sends an HTTP POST request to NGCP’s REST API.
Sipwise C5 Web will reply with 200 OK HTTP status once the request is validated.

The ngcp-panel module generates an XMLRPC call to the sems-b2b module on the PROXY. An example is shown here:

 <?xml version="1.0"?>
 <methodCall>
   <methodName>postDSMEvent</methodName>
   <params>
     <param>
       <value><string>PCC-aijfeoi</string></value>
     </param>
     <param>
       <value><array><data>
         <value><array><data>
           <value><string>cmd</string></value>
           <value><string>handleCall</string></value>
         </data></array></value>
         <value><array><data>
           <value><string>callid</string></value>
           <value><string>abcd</string></value>
         </data></array></value>
         <value><array><data>
           <value><string>caller</string></value>
           <value><string>4369912345</string></value>
         </data></array></value>
         <value><array><data>
           <value><string>callee</string></value>
           <value><string>4310001</string></value>
         </data></array></value>
         <value><array><data>
           <value><string>status</string></value>
           <value><string>ACCEPT</string></value>
         </data></array></value>
       </data></array></value>
     </param>
   </params>
 </methodCall>

At this point sems-b2b examines the following:

whether the token (listed as first param parameter of postDSMEvent) matches any of the saved session tokens
whether the callid parameter’s value matches the session’s SIP Call-ID
whether the status parameter’s value is ACCEPT (configurable)

and if all those conditions are valid it will indicate to kamailio-proxy module that the call can be accepted (i.e. call setup towards the callee may continue).

sems-b2b module sends 301 Accepted SIP response to kamailio-proxy and the latter can forward the SIP INVITE message to Sipwise C5 LB. If the status parameter’s value is not ACCEPT (configurable), sems-b2b will reply 487 Request Terminated to kamailio-proxy.

Indicating Call Termination at PCC Server

In the same manner as call initiation happens, call termination is also reported by Sipwise C5 towards the PCC server.

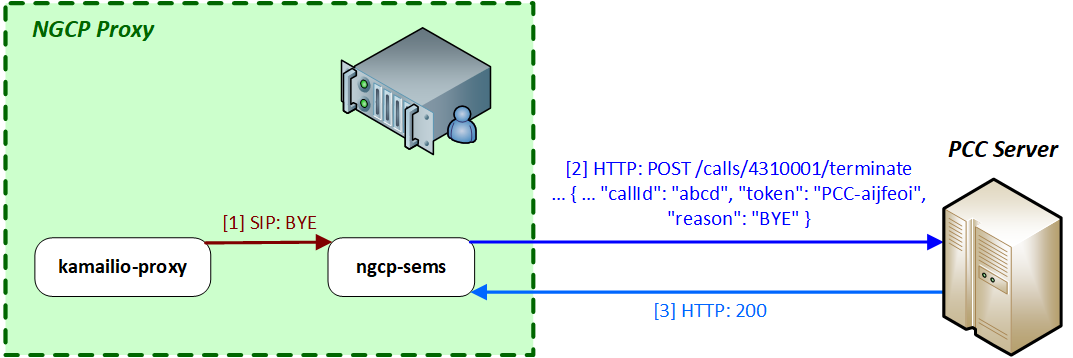

Figure 87. Call Termination with PCC

The target URL of the HTTP POST request for the call termination case looks like: /calls/<called_party_num>/**terminate**

The body of the request must contain the following element: "reason": "BYE", where the reason can be one of BYE, CANCEL, NOANSWER and REJECT. An example of a call termination request:

POST /calls/4310001/terminate HTTP/1.1
Content-Type: application/json

{
  "actualMsisdn": 4369912345,
  "callingMsisdn": 4310001,
  "actualClir": 0,
  "callId": "abcd",
  "token": "PCC-aijfeoi",
  "reason": "BYE"
}

Sipwise C5 will not take the response of PCC server into consideration, because the call has already been terminated at SIP protocol level.

Voicemail Notification

Using the PCC Framework

The PCC call control framework may also be used for voicemail notifications. The Sipwise C5 involves its elements: asterisk (Voicemail server) and ngcp-vmnotify in the process of the notification.

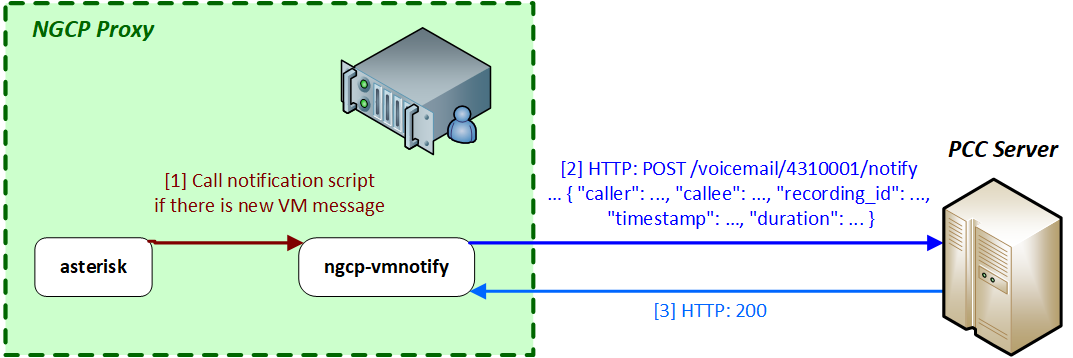

Figure 88. Voicemail Notification with PCC

The asterisk voicemail server triggers the ngcp-vmnotify script when a caller leaves a voicemail message in the callee’s voicebox.

ngcp-vmnotify sends an HTTP POST request to the PCC server, as given in the example below:

 POST /voicemail/4310001/notify HTTP/1.1
 Content-Type: application/json

 {
   "caller": 4369912345,
   "callee": 4310001,
   "recording_id":  45235 ,
   "timestamp": "2017-06-13T14:21:17T+01:00",
   "duration": 17
 }

The target URL is: /**voicemail**/<called_party_num>/**notify**

The PCC server replies with 200 OK if it properly processed the request.

Using SMS

The Sipwise C5 also supports voicemail notifications in form of short messages, using the built-in SMS modules. In such a case the ngcp-vmnotify module will send an HTTP POST request to the REST API (Sipwise C5 Web), that will contain the short message and finally be stored in the central database. Afterwards the short message will be sent to the recipient by Sipwise C5 Proxy.

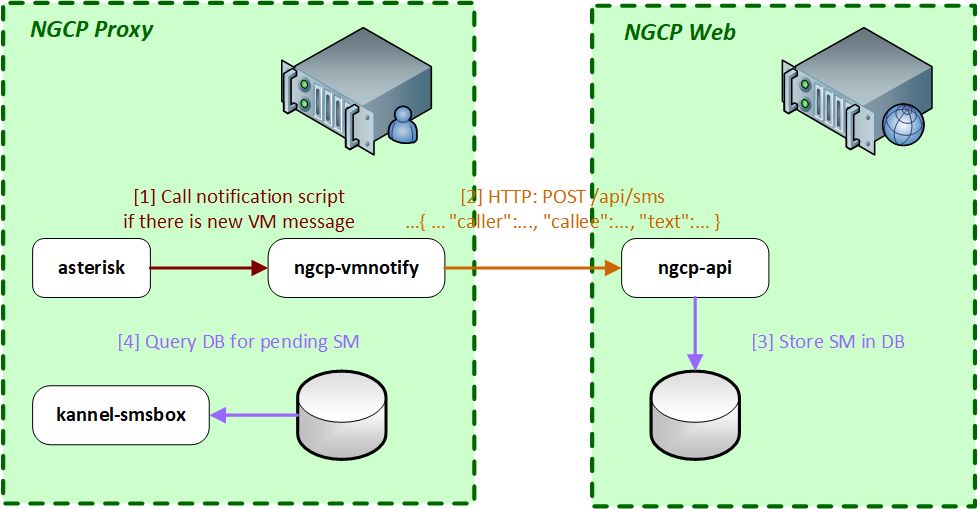

Figure 89. Voicemail Notification with SMS

The asterisk voicemail server triggers the ngcp-vmnotify script when a caller leaves a voicemail message in the callee’s voicebox.

ngcp-vmnotify sends an API request to ngcp-api module, as given in the example below:

 POST /api/sms/?skip_checks=true&skip_journal=false HTTP/1.1
 Content-Type: application/json

 {
   "subscriber_id": 90
   "caller": 4369912345,
   "callee" : 4310001,
   "text":  "user1 4310001 17 Tue 13 Jun 2017 14:21:17 +01:00"
 }

The target URL is: /api/**sms**

The ngcp-api stores the message in the database.
The kannel-smsbox module of Sipwise C5 Proxy will query the database for messages waiting for delivery and send the SM to its recipient through Sipwise C5 LB.

Incoming Short Message Acceptance

Indicating Incoming SM to PCC Server

The PCC server may also serve as a control point for incoming short messages. The Sipwise C5 may indicate an incoming SM to the PCC server, which in turn must explicitly accept the message, so that the message will be forwarded to the recipient.

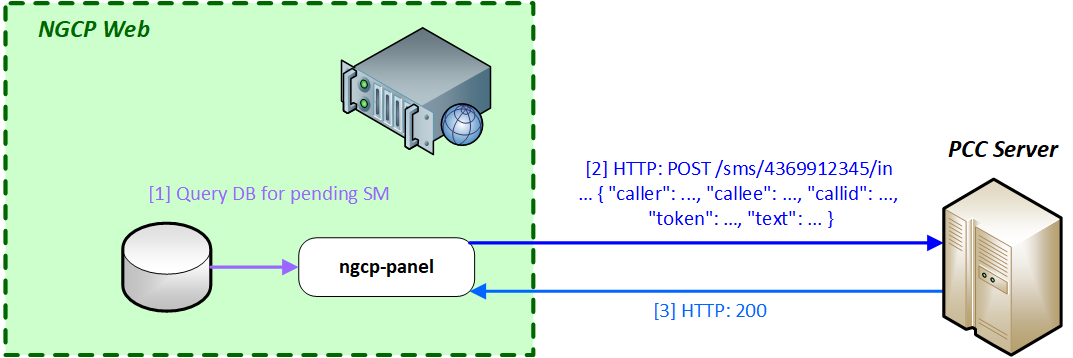

Figure 90. Short Message Notification with PCC

The ngcp-panel module on Sipwise C5 Web component will query the central database for pending incoming SMs.
The ngcp-panel will send an HTTP POST request to the PCC server if there is a message waiting for a subscriber. An example of such request is shown here:
```
 POST /sms/4310001/in HTTP/1.1
 Content-Type: application/json

 {
   "caller": 4369912345,
   "callee": 4310001,
   "token": "PCC-aijfeoi",
   "callId": "abcd",
   "text": "This is the SM text"
 }
```
The target URL in this case is: /**sms**/<called_party_num>/**in**
The PCC server replies with 200 OK HTTP status if it properly understood the request.

Incoming SM Accepted by PCC Server

As in the case of an incoming call, the PCC server will send an HTTP POST request to the REST API of NGCP, in order to signal the acceptance of the SM.

Figure 91. Short Message Accepted by PCC

The PCC server sends the request to Sipwise C5 Web component, where ngcp-api module will process it. An example:
```
POST /api/partycallcontrols HTTP/1.1
Content-Type: application/json

{
  "type": "sms",
  "caller": 4369912345,
  "callee": 4310001,
  "status": "ACCEPT",
  "callId": "abcd",
  "token": "PCC-aijfeoi"
}
```
The target URL of the request: /api/**partycallcontrols**. The **type** parameter must have a value of **sms**.
The ngcp-api module responds with 200 OK HTTP status if it properly understood the request.
The ngcp-api updates the status of the SM in the database so that the SM may be forwarded to the recipient.
The kannel-smsbox module on Sipwise C5 Proxy will query the central database for SMs to be delivered and will forward the SM towards an SMSC, via Sipwise C5 LB.

Configuration of PCC

The configuration of the PCC feature is done via the main configuration file: /etc/ngcp-config/config.yml. The relevant section is: apps.party_call_control, the example below shows the default values of the parameters.

apps:
  party_call_control:
    accepted_reply: 200*
    enable: no
    pcc_server_url: https://127.0.0.1:9090/pcc/${prefix}${callee}${suffix}
    request_timeout: '30'
    trigger_on_hangup: yes

The configuration parameters are:

accepted_reply: defines the value of status data element (in the PCC server’s POST request sent to /api/partycallcontrols API resource) that means the "accepted" status of the call. For instance the handbook showed the value ACCEPT in previous sections, instead of the default 200*
enable: must be set to yes in order to enable the PCC feature
pcc_server_url: the URL, pointing to the PCC server, where HTTP POST requests must be sent. The variables ${prefix}, ${callee} and ${suffix} will be replaced with actual values when a request is sent. Please do not change this part of the URL! Possible values are:
- prefix = calls, suffix = initiate
- prefix = calls, suffix = terminate
- prefix = voicemail, suffix = notify
- prefix = sms, suffix = in
- callee = <called_party_num>
request_timeout: time in seconds until Sipwise C5 will wait for an HTTP reply from the PCC server, once Sipwise C5 has sent a request to it
trigger_on_hangup: if set to yes, Sipwise C5 will send a "terminate" request to the PCC server at the end of the call

Troubleshooting of PCC

The Sipwise C5 will provide logs of its activities that are very useful for troubleshooting the call processing with PCC feature. This section will provide examples from various log files that can help to find potential problems in call setup.

Kamailio Proxy Log

PCC activation at sems-b2b module

Oct 17 17:00:45 prx01a proxy[3206]: NOTICE: <script>: Call to PCC (Party Call Control) - R=sip:2133339@192.168.10.11:5060;user=phone ID=1849964028_125696279@10.0.0.121 UA='<null>'

Call accepted by PCC server

Oct 17 17:00:16 prx01a proxy[3210]: NOTICE: <script>: NAT-Reply - S=301 - Accepted M=INVITE IP=192.168.10.12:5080 (192.168.10.12:5080) ID=1850250074_83465152@10.0.0.121 UA='<null>'
Oct 17 17:00:16 prx01a proxy[3210]: INFO: <script>: Received 200 OK (Accepted) from PCC Server, routing the call to its original callee - ID=1850250074_83465152@10.0.0.121 UA='<null>'

SEMS Log

Initiate call at PCC

Oct 17 17:10:47 prx01a sems[5059]: [#7f73237f7700] [mod_py_log, PyDSM.cpp:42] INFO: PCC http request to http://example.com/pcc/calls/4366811112222/initiate - callid 1851794724_134068006@10.0.0.121
Oct 17 17:10:47 prx01a sems[5059]: [#7f73237f7700] [mod_py_log, PyDSM.cpp:42] INFO: PCC form data: {'actualMsisdn': '4369933334444', 'actualClir': '0', 'token': 'PCC-12DBBD25-59E61D770001841C-237F7700', 'callingMsisdn': '4366811112222', 'callId': '1851794724_134068006@10.0.0.121'} - callid 1851794724_134068006@10.0.0.121
Oct 17 17:10:47 prx01a sems[5059]: [#7f73237f7700] [mod_py_log, PyDSM.cpp:42] INFO: PCC ret: 0 num_handles: 1
Oct 17 17:10:47 prx01a sems[5059]: [#7f73237f7700] [mod_py_log, PyDSM.cpp:42] INFO: RT: 0 1 0 [] []
...
Oct 17 17:10:47 prx01a sems[5059]: [#7f73237f7700] [mod_py_log, PyDSM.cpp:42] INFO: RT: 0 0 0 [<pycurl.Curl object at 0x7f7378067c50>] []
Oct 17 17:10:47 prx01a sems[5059]: [#7f73237f7700] [mod_py_log, PyDSM.cpp:42] INFO: PCC reply for callid 1851794724_134068006@10.0.0.121: 200

Call accepted by PCC server

Oct 17 17:10:51 prx01a sems[5059]: [#7f7323efe700] [execute, XMLRPC2DI.cpp:714] INFO: XMLRPC2DI 'postDSMEvent': function 'postDSMEvent'
Oct 17 17:10:51 prx01a sems[5059]: [#7f7323efe700] [execute, XMLRPC2DI.cpp:718] INFO:  params: <['PCC-12DBBD25-59E61D770001841C-237F7700', [['cmd', 'handleCall'], ['callid', '1851794724_134068006@10.0.0.121'], ['caller', '4369933334444'], ['callee', '4366811112222'], ['status', 'ACCEPT']]]>
Oct 17 17:10:51 prx01a sems[5059]: [#7f7323efe700] [execute, XMLRPC2DI.cpp:724] INFO:  result: <[200, 'OK']>
Oct 17 17:10:51 prx01a sems[5059]: [#7f73237f7700] [execute, DSMCoreModule.cpp:521] INFO: FSM:  'PCC RESULT -- ACCEPT'

Terminate call at PCC

Oct 17 17:10:53 prx01a sems[5059]: [#7f73235f5700] [mod_py_log, PyDSM.cpp:42] INFO: PCC http request to http://example.com/pcc/calls/4366811112222/terminate - callid 1851794724_134068006@10.0.0.121
Oct 17 17:10:53 prx01a sems[5059]: [#7f73235f5700] [mod_py_log, PyDSM.cpp:42] INFO: PCC form data: {'actualMsisdn': '4369933334444', 'callId': '1851794724_134068006@10.0.0.121', 'callingMsisdn': '4366811112222', 'reason': 'CANCEL', 'token': 'PCC-12DBBD25-59E61D770001841C-237F7700', 'actualClir': '0'} - callid 1851794724_134068006@10.0.0.121

Sipwise C5 Panel Log

SM notification at PCC server

Oct 18 09:10:16 web01a ngcp-panel: INFO: pcc is set to 1 for prov subscriber id 18451
Oct 18 09:10:16 web01a ngcp-panel: INFO: >>>> source check for booking.com passed, continue with time check
Oct 18 09:10:16 web01a ngcp-panel: INFO: >>>> time check for 1508310615 passed, use destination set
Oct 18 09:10:16 web01a ngcp-panel: INFO: >>>> proceed sms forwarding
Oct 18 09:10:16 web01a ngcp-panel: INFO: >>>> forward sms to 4369933334444
Oct 18 09:10:16 web01a ngcp-panel: INFO: sending pcc request for sms with id 305125 to http://example.com/pcc/sms/4366811112222/in
Oct 18 09:10:16 web01a ngcp-panel: INFO: sending pcc request succeeded
Oct 18 09:10:16 web01a ngcp-panel: INFO: status for pcc sms of 305125 is BUSY, don't forward sms

In the last line the status is BUSY. The purpose of this is to prevent forwarding the SM to the mobile phone of the recipient. Otherwise, in order to let Sipwise C5 forward the message to the recipient, the status is ACCEPT.

REST API Log

Call accepted by PCC server

Oct 18 10:19:39 web01a ngcp-panel: INFO: IP=192.168.10.20 CALLED=API[POST]/api/partycallcontrols/ TX=14EE9C4CD2599A70 USER=username DATA={} MSG="" LOG="{"type":"pcc","caller":"4365033334444","callee":"4366811112222","status":"ACCEPT","token":"PCC-273C2CDA-59E70E96000BE0C4-231F1700","callid":"406885946_117428858@10.0.0.121"}"
Oct 18 10:19:39 web01a ngcp-panel: INFO: IP=192.168.10.20 CALLED=API[POST 200]/api/partycallcontrols/ TX=14EE9C4CD2599A70 USER=username DATA={} MSG="" LOG=""

SM accepted by PCC server

Oct 18 10:20:30 web01a ngcp-panel: INFO: IP=192.168.10.20 CALLED=API[POST]/api/partycallcontrols/ TX=14EE9C58CEA4D960 USER=username DATA={} MSG="" LOG="{"type":"sms","caller":"15556666","callee":"4366811112222","status":"ACCEPT","token":"1482d9e2-a9fc-40ee-bdaf-de6f7fc239f8","callid":"305175"}"
Oct 18 10:20:30 web01a ngcp-panel: INFO: IP=192.168.10.20 CALLED=API[POST 200]/api/partycallcontrols/ TX=14EE9C58CEA4D960 USER=username DATA={} MSG="" LOG=""

Voicemail Notification Log

The voicemail notifier program (ngcp-vmnotify) writes its log messages into the system log (/var/log/syslog). An example:

Oct 18 09:53:34 prx01a vmnotify[20072]: Arguments: default 4366811112222 1 0 0 0 4365033334444 2017-10-18T09:53:34+0200 8

Where the Arguments are:

default: Asterisk voicemail context
the voicemail box owner
1: number of new messages
0: number of old messages
0: number of urgent messages
0: message ID of the latest message
who left the message (caller)
date and time of the message
8: duration of the message in seconds

SMS (Short Message Service) on Sipwise C5

Starting with its mr5.0.1 release, Sipwise C5 offers short messaging service to its local subscribers. The implementation is based on a widely used software module: Kannel, and it needs to interact with a mobile operator’s SMSC in order to send and receive SMs for the local subscribers. The data exchange with SMSC uses SMPP (Short Message Peer-to-Peer) protocol.

SMS directions:

incoming / received: the destination of the SM is a local subscriber on the NGCP
outgoing / sent: the SM is submitted by a local subscriber

The Sipwise C5 behaves as a short message client towards the SMSC of a mobile operator. This means every outgoing SM will be forwarded to the SMSC, and every incoming SM will reach Sipwise C5 through an SMSC.

The architecture of the SMS components of Sipwise C5 and their interaction with other elements is depicted below:

Figure 92. SMS Interaction

For the Sipwise C5 CE and PRO installations: the Kannel components and the ngcp-panel all run on the same single node. The description of SMS module will continue referring to a Sipwise C5 CARRIER installation in the handbook.

There are 2 components of the SMS module:

SMS Box: this component takes care of handling the messages locally, that means:
- delivering them to subscribers (writing into database for later retrieval)
- picking up the submitted SMs from the database and forwarding them to the Bearer Box component
Bearer Box: this component manages the transmission of SMs between Sipwise C5 and the mobile operator’s SMSC

Configuration

Main Parameters

The SMS functionality of Sipwise C5 is disabled by default. In order to enable SMS, change the value of configuration parameter sms.enable to yes in the main configuration file (/etc/ngcp-config/config.yml).

The second step of configuration is related to the SMSC where Sipwise C5 will connect to. Set the following parameters:

sms.smsc.host: IP address of the SMSC
sms.smsc.port: Port number of the SMSC
sms.smsc.username: Username for authentication on the SMSC
sms.smsc.password: Password for authentication on the SMSC

Other parameters of the SMSC connection may also need to be changed from the default values, but this is specific to each deployment.

Then, as usual, you have to make the new configuration active:

$ ngcpcfg apply 'Enabled SMS'
$ ngcpcfg push all

Configuration Files of Kannel

There are a few configuration files for the Kannel module, namely:

/etc/default/ngcp-kannel: determines which components of Kannel will be started. This is auto-generated from /etc/ngcp-config/templates/etc/default/ngcp-kannel.tt2 file when SMS is enabled.
/etc/kannel/kannel.conf: contains detailed configuration of Kannel components. This is auto-generated from /etc/ngcp-config/templates/etc/kannel/kannel.conf.tt2 file when SMS is enabled.
/etc/logrotate.d/ngcp-kannel.conf: configuration of logrotate for Kannel log files. This is auto-generated from /etc/ngcp-config/templates/etc/logrotate.d/ngcp-kannel.conf.tt2 file when SMS is enabled.

Please do not change settings in the above mentioned template files, unless you have to tailor Kannel settings to your specific needs!

Finally: see the description of each configuration parameter in the appendix.

Call Forwarding for SMS (CFS)

Any subscriber registered on Sipwise C5 can apply a call forwarding setting for short messages, referred to as "CFS" (Call Forward - SMS). If the CFS feature is enabled, he can receive the SMs on his mobile phone, for example, instead of retrieving the SMs through the REST API. This is much more convenient for users if they do not have an application on their smartphone or computer that could manage the SMs through the REST API.

In order to enable CFS you have to set the forwarding as usual on the admin web interface, or through the REST API. Navigate to Subscribers → select one → Details → Preferences → Call Forwards and press the Edit button.

Figure 93. Call Forward for SMS

Monitoring, troubleshooting

Bearer Box (LB node of NGCP)

On the LB node you can see a process named "bearerbox". This process has 2 listening ports assigned to it:

13000: this is the generic Kannel administration port, that belongs to the "core" component of Kannel.
13001: this is the communication port towards the SMS Box component running on PRX nodes of NGCP.

The ngcp-service tool also shows the bearerbox process in its summary information:

$ ngcp-service summary
Ok Service                        Managed    Started   Status
-- ------------------------------ ---------- --------- ---------
…
   kannel-bearerbox               managed    by-ha     active
…

The following log files can provide information about the operation of Bearer Box:

status messages and high level, short entries about sent and received messages: /var/log/ngcp/kannel/kannel.log

...
2017-09-26 08:57:32 [15922] [10] DEBUG: boxc_receiver: heartbeat with load value 0 received
...
2017-09-26 11:12:06 [15922] [10] DEBUG: boxc_receiver: sms received
2017-09-26 11:12:06 [15922] [10] DEBUG: send_msg: sending msg to box: <192.168.1.4>
2017-09-26 11:12:06 [15922] [11] DEBUG: send_msg: sending msg to box: <192.168.1.4>
2017-09-26 11:12:06 [15922] [11] DEBUG: boxc_sender: sent message to <192.168.1.4>
2017-09-26 11:12:06 [15922] [10] DEBUG: boxc_receiver: got ack
...

detailed information and message content of sent and received messages, link enquiries: /var/log/kannel/smsc.log

Sent and received message examples shown here do not contain the full phone number and content for confidentiality reason.

Example received message:

...
2017-09-26 12:09:36 [15922] [6] DEBUG: SMPP[default_smsc]: Got PDU:
2017-09-26 12:09:36 [15922] [6] DEBUG: SMPP PDU 0x7f2274025070 dump:
2017-09-26 12:09:36 [15922] [6] DEBUG:   type_name: deliver_sm
2017-09-26 12:09:36 [15922] [6] DEBUG:   command_id: 5 = 0x00000005
2017-09-26 12:09:36 [15922] [6] DEBUG:   command_status: 0 = 0x00000000
2017-09-26 12:09:36 [15922] [6] DEBUG:   sequence_number: 11867393 = 0x00b51501
2017-09-26 12:09:36 [15922] [6] DEBUG:   service_type: NULL
2017-09-26 12:09:36 [15922] [6] DEBUG:   source_addr_ton: 2 = 0x00000002
2017-09-26 12:09:36 [15922] [6] DEBUG:   source_addr_npi: 1 = 0x00000001
2017-09-26 12:09:36 [15922] [6] DEBUG:   source_addr: "0660......."
2017-09-26 12:09:36 [15922] [6] DEBUG:   dest_addr_ton: 1 = 0x00000001
2017-09-26 12:09:36 [15922] [6] DEBUG:   dest_addr_npi: 1 = 0x00000001
2017-09-26 12:09:36 [15922] [6] DEBUG:   destination_addr: "43668......."
2017-09-26 12:09:36 [15922] [6] DEBUG:   esm_class: 0 = 0x00000000
2017-09-26 12:09:36 [15922] [6] DEBUG:   protocol_id: 0 = 0x00000000
2017-09-26 12:09:36 [15922] [6] DEBUG:   priority_flag: 0 = 0x00000000
2017-09-26 12:09:36 [15922] [6] DEBUG:   schedule_delivery_time: NULL
2017-09-26 12:09:36 [15922] [6] DEBUG:   validity_period: NULL
2017-09-26 12:09:36 [15922] [6] DEBUG:   registered_delivery: 0 = 0x00000000
2017-09-26 12:09:36 [15922] [6] DEBUG:   replace_if_present_flag: 0 = 0x00000000
2017-09-26 12:09:36 [15922] [6] DEBUG:   data_coding: 3 = 0x00000003
2017-09-26 12:09:36 [15922] [6] DEBUG:   sm_default_msg_id: 0 = 0x00000000
2017-09-26 12:09:36 [15922] [6] DEBUG:   sm_length: 158 = 0x0000009e
2017-09-26 12:09:36 [15922] [6] DEBUG:   short_message:
2017-09-26 12:09:36 [15922] [6] DEBUG:    Octet string at 0x7f2274000f80:
2017-09-26 12:09:36 [15922] [6] DEBUG:      len:  158
2017-09-26 12:09:36 [15922] [6] DEBUG:      size: 159
2017-09-26 12:09:36 [15922] [6] DEBUG:      immutable: 0
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 5a <14 bytes> 46
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 72 <14 bytes> 68
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 61 <14 bytes> 67
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 20 <14 bytes> 57
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 65 <14 bytes> 63
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 68 <14 bytes> 73
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 2e <14 bytes> 61
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 6c <14 bytes> 73
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 3a <14 bytes> 73
2017-09-26 12:09:36 [15922] [6] DEBUG:      data: 4d <14 bytes> 6e
2017-09-26 12:09:36 [15922] [6] DEBUG:    Octet string dump ends.
2017-09-26 12:09:36 [15922] [6] DEBUG: SMPP PDU dump ends.
2017-09-26 12:09:36 [15922] [6] DEBUG: SMPP[default_smsc]: Sending PDU:
2017-09-26 12:09:36 [15922] [6] DEBUG: SMPP PDU 0x7f2274020790 dump:
2017-09-26 12:09:36 [15922] [6] DEBUG:   type_name: deliver_sm_resp
2017-09-26 12:09:36 [15922] [6] DEBUG:   command_id: 2147483653 = 0x80000005
2017-09-26 12:09:36 [15922] [6] DEBUG:   command_status: 0 = 0x00000000
2017-09-26 12:09:36 [15922] [6] DEBUG:   sequence_number: 11867393 = 0x00b51501
2017-09-26 12:09:36 [15922] [6] DEBUG:   message_id: NULL
2017-09-26 12:09:36 [15922] [6] DEBUG: SMPP PDU dump ends.
2017-09-26 12:09:36 [15922] [6] DEBUG: SMPP[default_smsc]: throughput (0.00,5.00)
...

Example sent message:

...
2017-09-26 12:04:08 [15922] [6] DEBUG: SMPP[default_smsc]: throughput (0.00,5.00)
2017-09-26 12:04:08 [15922] [6] DEBUG: SMPP[default_smsc]: Manually forced source addr ton = 1, source add npi = 1
2017-09-26 12:04:08 [15922] [6] DEBUG: SMPP[default_smsc]: Manually forced dest addr ton = 1, dest add npi = 1
2017-09-26 12:04:08 [15922] [6] DEBUG: SMPP[default_smsc]: Sending PDU:
2017-09-26 12:04:08 [15922] [6] DEBUG: SMPP PDU 0x7f2274025070 dump:
2017-09-26 12:04:08 [15922] [6] DEBUG:   type_name: submit_sm
2017-09-26 12:04:08 [15922] [6] DEBUG:   command_id: 4 = 0x00000004
2017-09-26 12:04:08 [15922] [6] DEBUG:   command_status: 0 = 0x00000000
2017-09-26 12:04:08 [15922] [6] DEBUG:   sequence_number: 98163 = 0x00017f73
2017-09-26 12:04:08 [15922] [6] DEBUG:   service_type: NULL
2017-09-26 12:04:08 [15922] [6] DEBUG:   source_addr_ton: 5 = 0x00000005
2017-09-26 12:04:08 [15922] [6] DEBUG:   source_addr_npi: 0 = 0x00000000
2017-09-26 12:04:08 [15922] [6] DEBUG:   source_addr: "any"
2017-09-26 12:04:08 [15922] [6] DEBUG:   dest_addr_ton: 1 = 0x00000001
2017-09-26 12:04:08 [15922] [6] DEBUG:   dest_addr_npi: 1 = 0x00000001
2017-09-26 12:04:08 [15922] [6] DEBUG:   destination_addr: "43676......."
2017-09-26 12:04:08 [15922] [6] DEBUG:   esm_class: 3 = 0x00000003
2017-09-26 12:04:08 [15922] [6] DEBUG:   protocol_id: 0 = 0x00000000
2017-09-26 12:04:08 [15922] [6] DEBUG:   priority_flag: 0 = 0x00000000
2017-09-26 12:04:08 [15922] [6] DEBUG:   schedule_delivery_time: NULL
2017-09-26 12:04:08 [15922] [6] DEBUG:   validity_period: NULL
2017-09-26 12:04:08 [15922] [6] DEBUG:   registered_delivery: 0 = 0x00000000
2017-09-26 12:04:08 [15922] [6] DEBUG:   replace_if_present_flag: 0 = 0x00000000
2017-09-26 12:04:08 [15922] [6] DEBUG:   data_coding: 0 = 0x00000000
2017-09-26 12:04:08 [15922] [6] DEBUG:   sm_default_msg_id: 0 = 0x00000000
2017-09-26 12:04:08 [15922] [6] DEBUG:   sm_length: 23 = 0x00000017
2017-09-26 12:04:08 [15922] [6] DEBUG:   short_message:
2017-09-26 12:04:08 [15922] [6] DEBUG:    Octet string at 0x7f227400c460:
2017-09-26 12:04:08 [15922] [6] DEBUG:      len:  23
2017-09-26 12:04:08 [15922] [6] DEBUG:      size: 24
2017-09-26 12:04:08 [15922] [6] DEBUG:      immutable: 0
2017-09-26 12:04:08 [15922] [6] DEBUG:      data: 44 <14 bytes> 73
2017-09-26 12:04:08 [15922] [6] DEBUG:      data: 74 <5 bytes> 39
2017-09-26 12:04:08 [15922] [6] DEBUG:    Octet string dump ends.
2017-09-26 12:04:08 [15922] [6] DEBUG: SMPP PDU dump ends.
2017-09-26 12:04:08 [15922] [6] DEBUG: SMPP[default_smsc]: throughput (1.00,5.00)
...

Example link enquiry:

...
2017-09-26 12:13:38 [15922] [6] DEBUG: SMPP[default_smsc]: throughput (0.00,5.00)
2017-09-26 12:13:38 [15922] [6] DEBUG: SMPP[default_smsc]: Got PDU:
2017-09-26 12:13:38 [15922] [6] DEBUG: SMPP PDU 0x7f2274020790 dump:
2017-09-26 12:13:38 [15922] [6] DEBUG:   type_name: enquire_link
2017-09-26 12:13:38 [15922] [6] DEBUG:   command_id: 21 = 0x00000015
2017-09-26 12:13:38 [15922] [6] DEBUG:   command_status: 0 = 0x00000000
2017-09-26 12:13:38 [15922] [6] DEBUG:   sequence_number: 90764 = 0x0001628c
2017-09-26 12:13:38 [15922] [6] DEBUG: SMPP PDU dump ends.
2017-09-26 12:13:38 [15922] [6] DEBUG: SMPP[default_smsc]: Sending PDU:
2017-09-26 12:13:38 [15922] [6] DEBUG: SMPP PDU 0x7f2274025070 dump:
2017-09-26 12:13:38 [15922] [6] DEBUG:   type_name: enquire_link_resp
2017-09-26 12:13:38 [15922] [6] DEBUG:   command_id: 2147483669 = 0x80000015
2017-09-26 12:13:38 [15922] [6] DEBUG:   command_status: 0 = 0x00000000
2017-09-26 12:13:38 [15922] [6] DEBUG:   sequence_number: 90764 = 0x0001628c
2017-09-26 12:13:38 [15922] [6] DEBUG: SMPP PDU dump ends.
2017-09-26 12:13:38 [15922] [6] DEBUG: SMPP[default_smsc]: throughput (0.00,5.00)
...

SMS Box (PRX node of NGCP)

On the PRX node you can see a process named "smsbox". This process has a listening port assigned to it: 13002, that is the communication port towards the Bearer Box component running on LB nodes.

The ngcp-service tool also shows the smsbox process in its summary information:

$ ngcp-service summary
Ok Service                        Managed    Started   Status
-- ------------------------------ ---------- --------- ---------
…
   kannel-smsbox                  managed    by-ha     active
…

The following log files can provide information about the operation of SMS Box:

sent and received messages using the API of WEB node: /var/log/kannel/smsbox.log

Sent and received message examples shown here do not contain the full phone number and content for confidentiality reason.

Example sent message:

...
2017-09-26 12:16:42 [22763] [2] DEBUG: HTTP: Creating HTTPClient for `192.168.1.2'.
2017-09-26 12:16:42 [22763] [2] DEBUG: HTTP: Created HTTPClient area 0x7f5dcc000ad0.
2017-09-26 12:16:42 [22763] [3] INFO: smsbox: Got HTTP request </cgi-bin/sendsms> from <192.168.1.3>
2017-09-26 12:16:42 [22763] [3] INFO: sendsms used by <sipwise>
2017-09-26 12:16:42 [22763] [3] INFO: sendsms sender:<sipwise:43668.......> (192.168.1.3) to:<43676.......> msg:<...>
2017-09-26 12:16:42 [22763] [3] DEBUG: Stored UUID ab95eb45-1ec0-4932-9863-1a95609a025f
2017-09-26 12:16:42 [22763] [3] DEBUG: message length 52, sending 1 messages
2017-09-26 12:16:42 [22763] [3] DEBUG: Status: 202 Answer: <Sent.>
2017-09-26 12:16:42 [22763] [3] DEBUG: Delayed reply - wait for bearerbox
2017-09-26 12:16:42 [22763] [0] DEBUG: Got ACK (0) of ab95eb45-1ec0-4932-9863-1a95609a025f
2017-09-26 12:16:42 [22763] [0] DEBUG: HTTP: Destroying HTTPClient area 0x7f5dcc000ad0.
2017-09-26 12:16:42 [22763] [0] DEBUG: HTTP: Destroying HTTPClient for `192.168.1.3'.
...

Example received message:

...
2017-09-26 11:59:45 [22763] [5] INFO: Starting to service <...message content...> from <+43676-------> to <+43668------->
2017-09-26 11:59:45 [22763] [10] DEBUG: Queue contains 0 pending requests.
2017-09-26 11:59:45 [22763] [10] DEBUG: HTTPS URL; Using SSL for the connection
2017-09-26 11:59:45 [22763] [10] DEBUG: Parsing URL `https://192.168.1.2:1443/internalsms/receive?auth_token=fNLosMgwdNUrKvEfFMm9
&timestamp=2017-09-26+09:59:45&from=%2B43676-------&to=%2B43668-------&charset=UTF-8&coding=0&text=...':
2017-09-26 11:59:45 [22763] [10] DEBUG:   Scheme: https://
2017-09-26 11:59:45 [22763] [10] DEBUG:   Host: 192.168.1.2
2017-09-26 11:59:45 [22763] [10] DEBUG:   Port: 1443
2017-09-26 11:59:45 [22763] [10] DEBUG:   Username: (null)
2017-09-26 11:59:45 [22763] [10] DEBUG:   Password: (null)
2017-09-26 11:59:45 [22763] [10] DEBUG:   Path: /internalsms/receive
2017-09-26 11:59:45 [22763] [10] DEBUG:   Query: auth_token=fNLosMgwdNUrKvEfFMm9&timestamp=2017-09-26+09:59:45&from=%2B43676-------
&to=%2B43668-------&charset=UTF-8&coding=0&text=...
2017-09-26 11:59:45 [22763] [10] DEBUG:   Fragment: (null)
2017-09-26 11:59:45 [22763] [10] DEBUG: Connecting nonblocking to <192.168.1.2>
2017-09-26 11:59:45 [22763] [10] DEBUG: HTTP: Opening connection to `192.168.1.2:1443' (fd=31).
2017-09-26 11:59:45 [22763] [10] DEBUG: Socket connecting
2017-09-26 11:59:45 [22763] [9] DEBUG: Get info about connecting socket
2017-09-26 11:59:45 [22763] [9] DEBUG: HTTP: Sending request:
2017-09-26 11:59:45 [22763] [9] DEBUG: Octet string at 0x7f5dbc00f470:
2017-09-26 11:59:45 [22763] [9] DEBUG:   len:  382
2017-09-26 11:59:45 [22763] [9] DEBUG:   size: 1024
2017-09-26 11:59:45 [22763] [9] DEBUG:   immutable: 0
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 47 45 54 20 2f 69 6e 74 65 72 6e 61 6c 73 6d 73   GET /internalsms
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 2f 72 65 63 65 69 76 65 3f 61 75 74 68 5f 74 6f   /receive?auth_to
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 6b 65 6e 3d ...                                   ken=
                                                          ... 20 48 54 54 50 2f 31 2e 31 0d 0a         HTTP/1.1..
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 43 6f 6e 6e 65 63 74 69 6f 6e 3a 20 6b 65 65 70   Connection: keep
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 2d 61 6c 69 76 65 0d 0a 55 73 65 72 2d 41 67 65   -alive..User-Age
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 6e 74 3a 20 4b 61 6e 6e 65 6c 2f 31 2e 34 2e 34   nt: Kannel/1.4.4
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 0d 0a 48 6f 73 74 3a 20 31 39 32 2e 31 36 38 2e   ..Host: 192.168.
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 31 2e 32 3a 31 34 34 33 0d 0a 0d 0a               1.2:1443....
2017-09-26 11:59:45 [22763] [9] DEBUG: Octet string dump ends.
2017-09-26 11:59:45 [22763] [9] DEBUG: HTTP: Status line: <HTTP/1.1 200 OK>
2017-09-26 11:59:45 [22763] [9] DEBUG: HTTP: Received response:
2017-09-26 11:59:45 [22763] [9] DEBUG: Octet string at 0x7f5dbc006970:
2017-09-26 11:59:45 [22763] [9] DEBUG:   len:  333
2017-09-26 11:59:45 [22763] [9] DEBUG:   size: 1024
2017-09-26 11:59:45 [22763] [9] DEBUG:   immutable: 0
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 53 65 72 76 65 72 3a 20 6e 67 69 6e 78 0d 0a 44   Server: nginx..D
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 61 74 65 3a 20 54 75 65 2c 20 32 36 20 53 65 70   ate: Tue, 26 Sep
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 20 32 30 31 37 20 30 39 3a 35 39 3a 34 35 20 47    2017 09:59:45 G
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 4d 54 0d 0a 43 6f 6e 74 65 6e 74 2d 54 79 70 65   MT..Content-Type
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 3a 20 74 65 78 74 2f 68 74 6d 6c 3b 20 63 68 61   : text/html; cha
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 72 73 65 74 3d 75 74 66 2d 38 0d 0a 43 6f 6e 74   rset=utf-8..Cont
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 65 6e 74 2d 4c 65 6e 67 74 68 3a 20 30 0d 0a 43   ent-Length: 0..C
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 6f 6e 6e 65 63 74 69 6f 6e 3a 20 6b 65 65 70 2d   onnection: keep-
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 61 6c 69 76 65 0d 0a 53 65 74 2d 43 6f 6f 6b 69   alive..Set-Cooki
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 65 3a 20 6e 67 63 70 5f 70 61 6e 65 6c 5f 73 65   e: ngcp_panel_se
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 73 73 69 6f 6e 3d 34 35 30 32 64 64 66 65 31 62   ssion=4502ddfe1b
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 63 31 65 33 39 30 65 30 64 36 66 39 64 34 37 30   c1e390e0d6f9d470
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 35 30 37 62 64 64 33 61 65 32 36 62 64 63 3b 20   507bdd3ae26bdc;
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 70 61 74 68 3d 2f 3b 20 65 78 70 69 72 65 73 3d   path=/; expires=
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 54 75 65 2c 20 32 36 2d 53 65 70 2d 32 30 31 37   Tue, 26-Sep-2017
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 20 31 30 3a 35 39 3a 34 35 20 47 4d 54 3b 20 48    10:59:45 GMT; H
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 74 74 70 4f 6e 6c 79 0d 0a 58 2d 43 61 74 61 6c   ttpOnly..X-Catal
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 79 73 74 3a 20 35 2e 39 30 30 37 35 0d 0a 53 74   yst: 5.90075..St
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 72 69 63 74 2d 54 72 61 6e 73 70 6f 72 74 2d 53   rict-Transport-S
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 65 63 75 72 69 74 79 3a 20 6d 61 78 2d 61 67 65   ecurity: max-age
2017-09-26 11:59:45 [22763] [9] DEBUG:   data: 3d 31 35 37 36 38 30 30 30 0d 0a 0d 0a            =15768000....
2017-09-26 11:59:45 [22763] [9] DEBUG: Octet string dump ends.
2017-09-26 11:59:45 [22763] [6] WARNING: Tried to set Coding field, denied.
2017-09-26 11:59:45 [22763] [6] INFO: No reply sent, denied.
2017-09-26 11:59:55 [22763] [9] DEBUG: HTTP: Server closed connection, destroying it <192.168.1.2:1443:1::><0x7f5db0000b20><fd:31>.
...

short log of sent/received messages: /var/log/kannel/smsbox-access.log

...
2017-09-26 12:39:18 SMS HTTP-request sender:+43680------- request: '' url: 'https://192.168.1.2:1443/internalsms/receive?
auth_token=fNLosMgwdNUrKvEfFMm9&timestamp=2017-09-26+10:39:18&from=%2B43680-------&to=%2B43668-------&charset=UTF-8&coding=0
&text=<...message content...>' reply: 200 '<< successful >>'
...
2017-09-26 12:41:54 send-SMS request added - sender:sipwise:43668------- 192.168.1.3 target:43680-------- request: '<...message content...>'
...

REST API

Handling of short messages from the user perspective happens with the help of NGCP’s REST API. There is a dedicated resource: https://<IP of WEB node>:1443/api/sms that allows you to:

Get a list of sent and received messages. This is achieved by sending a GET request on the /api/sms collection, as in the following example:

curl -i -X GET -H 'Connection: close' --cert NGCP-API-client-certificate.pem \
  --cacert ca-cert.pem 'https://example.org:1443/api/sms/?page=1&rows=10'

Retrieve an SM (both sent and received). This is achieved by sending a GET request for a specific /api/sms/id item, as in the following example:
```
curl -i -X GET -H 'Connection: close' --cert NGCP-API-client-certificate.pem \
  --cacert ca-cert.pem 'https://example.org:1443/api/sms/1'
```

Send a new message from a local subscriber. This is achieved by sending a POST request for the /api/sms collection, as in the following example:

curl -i -X POST -H 'Connection: close' -H 'Content-Type: application/json' \
  --cert NGCP-API-client-certificate.pem --cacert ca-cert.pem \
  'https://example.org:1443/api/sms/'  --data-binary '{"callee" : "43555666777", \
  "subscriber_id" : 4, "text" : "test"}'

As always, the full documentation of the REST API resources is available on the admin web interface of NGCP: https://<IP of WEB node>:1443/api/#sms

RTCengine

Overview

WebRTC is an open project providing browsers and mobile applications with Real-Time Communications (RTC) capabilities. The RTC:engine protocol is a light weight messaging and signaling protocol for WebSocket clients. Technically it is a WebSocket sub protocol. It consists of JSON messages that are used to initiate and control call dialogs, send chat messages, join and control conferences and share files. It is similar to well known signaling protocols like SIP, but much simpler. It does not care about the underlying network protocols, like SIP does.

RTC:engine enabling

The RTC:engine is not activated by default and needs a few steps to setup.

Enabling services via CLI

First you have to enable it first on your server via CLI. Connect with SSH on your server, open /etc/ngcp-config/config.yml with your editor of choice and change the following properties:

fileshare:
  enable: yes

rtcengine:
  conference:
    relay:
      app_id: bormuth
      url: http://xms.sipwise.com:81
    call:
      relay:
      app_id: bormuth
      url: http://xms.sipwise.com:81
  enable: yes
  expose_provisioning_api: yes

www_admin:
  http_csc:
  servername: '$IP_OF_VM'

Save the config.yml file and run $ ngcpcfg apply "enable rtcengine". After the script ran, check the status of all services via $ ngcp-service summary, or $ systemctl status.

Enabling via Panel for resellers and subscribers

The WebRTC subscriber is a normal subscriber which has a different configuration in his Preferences. You need to change the following preferences under Subscribers→Details→Preferences→NAT and Media Flow Control:

use_rtpproxy: Always with rtpproxy as additional ICE candidate
transport_protocol: RTP/SAVPF (encrypted SRTP with RTCP feedback)

The transport_protocol setting may change, depending on your WebRTC client/browser configuration. Supported protocols are the following:

Transparent (Pass through using the client’s transport protocol)
RTP/AVP (Plain RTP)
RTP/SAVP (encrypted SRTP)
RTP/AVPF (RTP with RTCP feedback)
RTP/SAVPF (encrypted SRTP with RTCP feedback)
UDP/TLS/RTP/SAVP (Encrypted SRTP using DTLS)
UDP/TLS/RTP/SAVPF (Encrypted SRTP using DTLS with RTCP feedback)

The below configuration is enough to handle a WebRTC client/browser. As mentioned, you may need to tune a little bit your transport_protocol configuration, depending on your client/browser settings.

In order to have a bridge between normal SIP clients (using plain RTP for example) and WebRTC client, the normal SIP clients' preferences have to have the following configuration:

transport_protocol: RTP/AVP (Plain RTP)

This will teach Sipwise C5 to translate between Plain RTP and RTP/SAVPF when you have calls between normal SIP clients and WebRTC clients.

Create RTC:engine session

Create sessions

Request:

curl -i -X POST --insecure --user SUBSCRIBER_ID:SUBSCRIBER_PW -H 'Content-Type: application/json' --data-binary '{}' https://IP_OF_VM/api/rtcsessions/

Response Header:

Location: /api/rtcsessions/7

Receive sessions

Request:

curl -i -X GET --insecure --user SUBSCRIBER_ID:SUBSCRIBER_PW -H 'Content-Type: application/json' https://IP_OF_VM/api/rtcsessions/{ID_FROM_LAST_REQUEST_HEADER}

Response Header:

{
  ...
  "rtc_app_name" : "default_default_app",
  "rtc_browser_token" : "22fz8e51-ad6e-481e-a389-15c58c3fe5ac",
  "rtc_network_tag" : "",
  "subscriber_id" : "263"
}

Use rtc_browser_token in your cdk.Client.

RTC:engine protocol details

Terminology

Connector

There are two kinds of connectors. The front and the back connectors. The only front connector is the BrowserConnector. It has access to all WebSocket connections and is responsible for delivering RCT:engine protocol messages to the WebSocket clients, and for forwarding messages from the WebSocket clients to the router.

Currently there are four back connectors (SipConnector, XmppConnector, WebrtcConnector, ConferenceConnector). Every back connector implements a certain communication use case.

Router

The router is very simple stateless message broker, that is responsible for delivering the messages to the right connector. To decide where to send the message, the router takes a look at the recipient address (to) and forwards the message to the specified connector.

User

App

An app is a scope for a certain RTC:engine integration. Every user can have multiple apps. And an app contains sessions.

Network

A network is a user wide configuration, that maps a custom network name (tag) to a certain back connector. Additionally it can also store network specific configurations. And any account that is related to a certain network, will merge its custom configs with the network configs, and send its messages to the specified connector.

Session

Account

An account represents the credentials for a specific network. Usually it consists of an identifier like a SIP uri (sip:user@domain.tld) and an access token or rather a password.

Browser SDK

The Browser SDK is an abstraction layer on top of the RTC:engine protocol. It is served as bundled javascript library, and provides convenient components and methods for all use cases.

Messages

A typical message created by the browser sdk contains the following fields:

{
  "method": "module.action",
  "from": "connector:id",
  "to": "connector:id",
  "session": "session",
  "body": {
    ...
  }
}

Fields

method

It is separated in two parts. The first part is the module. It is a delegation key to separate concerns in the code. The second part is the action, which represents a specific method in a module.

from

It represents the current sender of a message. For example the user creates a new call via the browser sdk, the message would look like this:

{
  "method": "call.start",
  "from": "",
  "to": "webrtc:b2bua1",
  "session": "session1",
  "body": {
    ...
  }
}

The content of the field is completely irrelevant, because the BrowserConnector will overwrite this field. The reason is to avoid user manipulation.

{
  "method": "call.start",
  "from": "browser:ws1",
  "to": "webrtc:b2bua1",
  "session": "session1",
  "body": {
    ...
  }
}

to

In general this field represents the recipient of a message. The recipients address consists of two parts. First part is the prefix that targets the connector. Second part is the identifier of the recipient.

session

If you provisioned with the RTCEngine, you get a session and its token property. The browser SDK adds this token to every message.

body

The body contains the payload of the message. Every message type has its own body schema.

Account

Mainly an account consists of credentials (identifier, accessToken), that are needed to authenticate against the related network. Its lifecycle is bound to the lifecycle of the related session.

After RTC:engine received session.open, it responds a session.validated message. This message contains all provisioned accounts in its property "body.accounts".

Flow

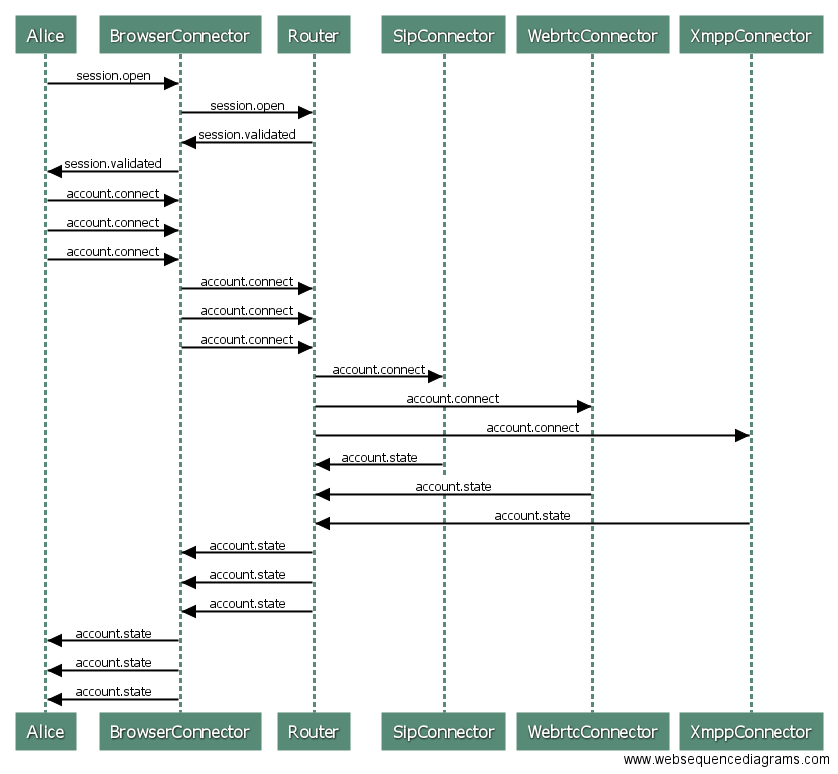

Figure 94. Account flow

Messages

account.connect

RTC:engine needs one message per account. The message should contain the id of the account. The id is the object key in the accounts object from the [session.validated](../session/index.md) message.

{
  "from": "",
  "to": "...:...",
  "method": "account.connect",
  "session": "...",
  "body": {
    "id": "..."
  }
}

account.state

This message gives state information about the authentication and registration process of the related network and the corresponding connector. For example, if the related connector is the SipConnector, it creates a new SIP B2BUA in background, and notify the browser if any state change happens.

{
  "from": "...:...",
  "to": "browser:...",
  "method": "account.state",
  "session": "...",
  "body": {
    "id": "...",
    "reason": "...",
    "state": "..."
  }
}

State reasons

OK
CONNECTING
DISCONNECTING
SERVICE_UNAVAILABLE
SERVICE_ERROR
BAD_CONFIGURATION
WRONG_CREDENTIALS
CONNECTOR_UNAVAILABLE
CONNECTOR_BUSY
CONNECTOR_ERROR
ACCOUNT_NOT_FOUND

States

CONNECTED
DISCONNECTED

Call

Flow

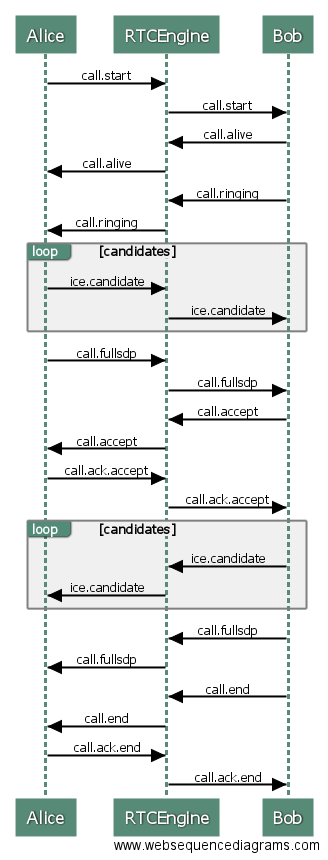

Figure 95. Call flow

call.start

The caller sends this message to the RTC:engine to initiate a new call dialog.

{
  "from": "local",
  "to": ["...:..."],
  "method": "call.start",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "...",
    "account": "..."
    "replace": true|false,
    "trickle": true|false,
    "target": "...",
    "sdp": "..."
  }
}

Body properties

id

The id is a UUID version 4 that identifies the call dialog in the system. But caller and callee never have the same.

gcid

Whereas the gcid is a system wide and end-to-end consistent call identifier. It is necessary to track the entire call dialog.

account

It contains the callers account id. [(See accounts)](../account/index.md)

replace

This property is not used yet. It should support a call handover scenario.

trickle

If is set to true, the callee expects ice candidates, before the full sdp delivered by the caller, to accelerate the negotiation process.

target

It’s the URI (sip:user@domain.tld) of the callee.

sdp

The sdp property contains a very early state of the browsers media machine. It contains no ice candidates so far.

call.alive

After the callee received the "call.start" message, it responds with a "call.alive" to the RTC:engine, immediately.

{
  "from": "...",
  "to": "...",
  "method": "call.alive",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "..."
  }
}

call.ringing

After the callee received the "call.start" message, it responds with a "call.ringing" to the RTC:engine, immediately.

{
  "from": "...",
  "to": "...",
  "method": "call.ringing",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "...",
    "account": null
  }
}

call.accept

The callee sends this message after accepting the call explicitly.

{
  "from": "...",
  "to": "...",
  "method": "call.accept",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "...",
    "account": null,
    "trickle": true|false,
    "sdp": "..."
  }
}

call.ack.accept

Caller sends this message after it received the "call.accept" message from the callee.

{
  "from": "...",
  "to": "...",
  "method": "call.ack.accept",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "..."
  }
}

call.candidate

Both, caller and callee send ice candidates immediately after initiating respectively accepting the call.

{
  "from": "...",
  "to": "...",
  "method": "call.candidate",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "...",
    "candidate": {
      "payload": "...",
      "type": "WEBRTC_LEGACY"
    }
  }
}

call.fullsdp

Both, caller and callee send this message after the ice gathering finished and all candidates are available.

{
  "from": "...",
  "to": "...",
  "method": "call.fullsdp",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "...",
    "sdp": "..."
  }
}

call.change….

All messages, that begin with "call.change", are important for renegotiation and glare handling.

call.change.lock.reset

call.change.lock

call.change.lock.ok

call.change.offer

call.change.answer

call.dtmf

Only works if the connector of the related account supports DTMF messages.

{
  "from": "...",
  "to": "...",
  "method": "call.dtmf",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "...",
    "dtmf": "...",
    "account": null
  }
}

call.end

Both, caller and callee can send this message. It forces the counter part to end and destroy the call.

{
    "from": "...",
    "to": "...",
    "method": "call.end",
    "session": "...",
    "body": {
        "id": "...",
        "gcid": "...",
        "reason": "..."
    }
}

call.ack.end

The counter part, that receives the "call.end" message, sends the "call.ack.end" message.

{
  "from": "...",
  "to": "...",
  "method": "call.ack.end",
  "session": "...",
  "body": {
    "id": "...",
    "gcid": "...",
    "account": null
  }
}

Session

Flow

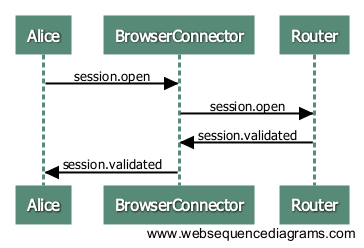

Figure 96. Session flow

Messages

session.open

{
  "method": "session.open",
  "from": "",
  "to": "",
  "session": "session1",
  "body": {
    "credentials": {
      "userSession": "session1"
    }
  }
}

session.validated

This message is the response to session.open. If the session property is a valid session, you get a response where the result property is true. In addition you get the account information to connect to the networks.

{
  "method": "session.validated",
  "from": "core",
  "to": "browser:ws1",
  "session": "session1"
  "body": {
    "result": true,
    "accounts": {
      "account1": {
        "identifier": "sip:account1@foo.bar"
        "target": "sip-connector:b2bua-account1",
        "network": {
          "tag": "sip-network"
        }
      }
    }
  },
}

If something went wrong, result is set to false and an error reason appears.

{
  "method": "session.validated",
  "from": "core",
  "to": "browser:ws1",
  "session": "session1"
    "body": {
      "result": false,
      "reason": {
        "type": "invalidToken",
        "message": "Your token is not a valid user session token!"
      }
    }
  },
}

Reason types

invalidToken
tokenExpired
missingCredentials

Service ngcp-comx-fs (comx-fileshare-service)

'comx' is a legacy name for the current 'RTC:engine' component. The service 'comx-fileshare' is the last not-yet-renamed component there. It has beed renamed to the service 'ngcp-comx-fs' on Sipwise C5 long time ago but it still is being shipped as a package ngcp-comx-fileshare-service and stored in the Git repository 'comx-fileshare-service.git'. It will be polished at some point in the future.

Overview

The ngcp-comx-fs is a Node.js based filesharing service and it is intended to be used via REST API. This service allows you to upload arbitrary files to the server and to download/share them with a generated link.

The API can be used with in 2 ways:

with simple identification, which means that only credentials of a user/subscriber are needed for authentication
with session identification, which also provides for example the time-to-live (TTL) functionality besides authentication, and will be used in combination with the RTC:engine.

Configuration and Usage

Change authentication method

To use Sipwise C5 subscribers as authentication against the API, you need to set it in the /etc/ngcp-comx-fileshare-service/config.js:

simpleUpload: {
  authentication: {
    enabled: true,
    subscriber: true,
    username: 'foo8',
    password: 'bar8'
  }
}

You can now authenticate like this with the API:

curl -i -X POST --insecure --form file=@/tmp/test.txt --user '43991002@domain.tld:x43991002' \
    https://$NGCP_IP:1446/rtc/fileshare/uploads

If you want to use the credentials from the config.js you need so set it to the following settings:

simpleUpload: {
  authentication: {
    enabled: true,
    subscriber: false,
    username: 'foo8',
    password: 'bar8'
  }
}

In this case, the login parameter would be this:

curl -i -X POST --insecure --form file=@/tmp/test.txt --user 'foo8:bar8' \
    https://$NGCP_IP:1446/rtc/fileshare/uploads

Database Structure

Table information for the fileshare MariaDB database:

downloads table:

Table 6. Details of downloads Table in fileshare Database
Field Name	Field Type	Description
id	CHAR, PRIMARY KEY	Internal ID of the download action
state	ENUM	State of the download
uploaded_id	CHAR, FOREIGN KEY	External ID used for accessing the uploaded file in 'uploads' table
created_at	DATETIME	Download action creation time
updated_at	DATETIME	Time of last download action modification

sessions table:

Table 7. Details of sessions Table in fileshare Database
Field Name	Field Type	Description
id	CHAR, PRIMARY KEY	Internal ID of the session
ttl	INT	Time-to-live value of the session (in seconds)
created_at	DATETIME	Session creation time
updated_at	DATETIME	Time of last session modification

uploads table:

Table 8. Details of uploads Table in fileshare Database
Field Name	Field Type	Description
id	CHAR, PRIMARY KEY	Internal ID of the file entry
data	LONGBLOB	The file data
original_name	VARCHAR	Original name of the file
mime_type	VARCHAR	MIME type of the file
size	INT	File size in bytes
ttl	INT	Time-to-live value of the file
state	ENUM	State of the file
session_id	CHAR, FOREIGN KEY	External ID used to access session data in 'sessions' table
created_at	DATETIME	File creation / upload time
updated_at	DATETIME	Time of last file modification

Activation of Filesharing Service on NGCP

The service is installed on every Sipwise C5 system, but is not activated by default. In order to activate the service with default port 1446, connect with SSH and execute:

ngcpcfg set /etc/ngcp-config/config.yml fileshare.enable=yes
ngcpcfg apply 'Enabled ngcp-comx-fs'
ngcpcfg push all

and check the status with ngcp-service summary. The service 'ngcp-comx-fs' should be now up and running.

Message Sequence Chart

Simple Message Sequence

Figure 97. Sequence Simple

Detailed Message Sequence

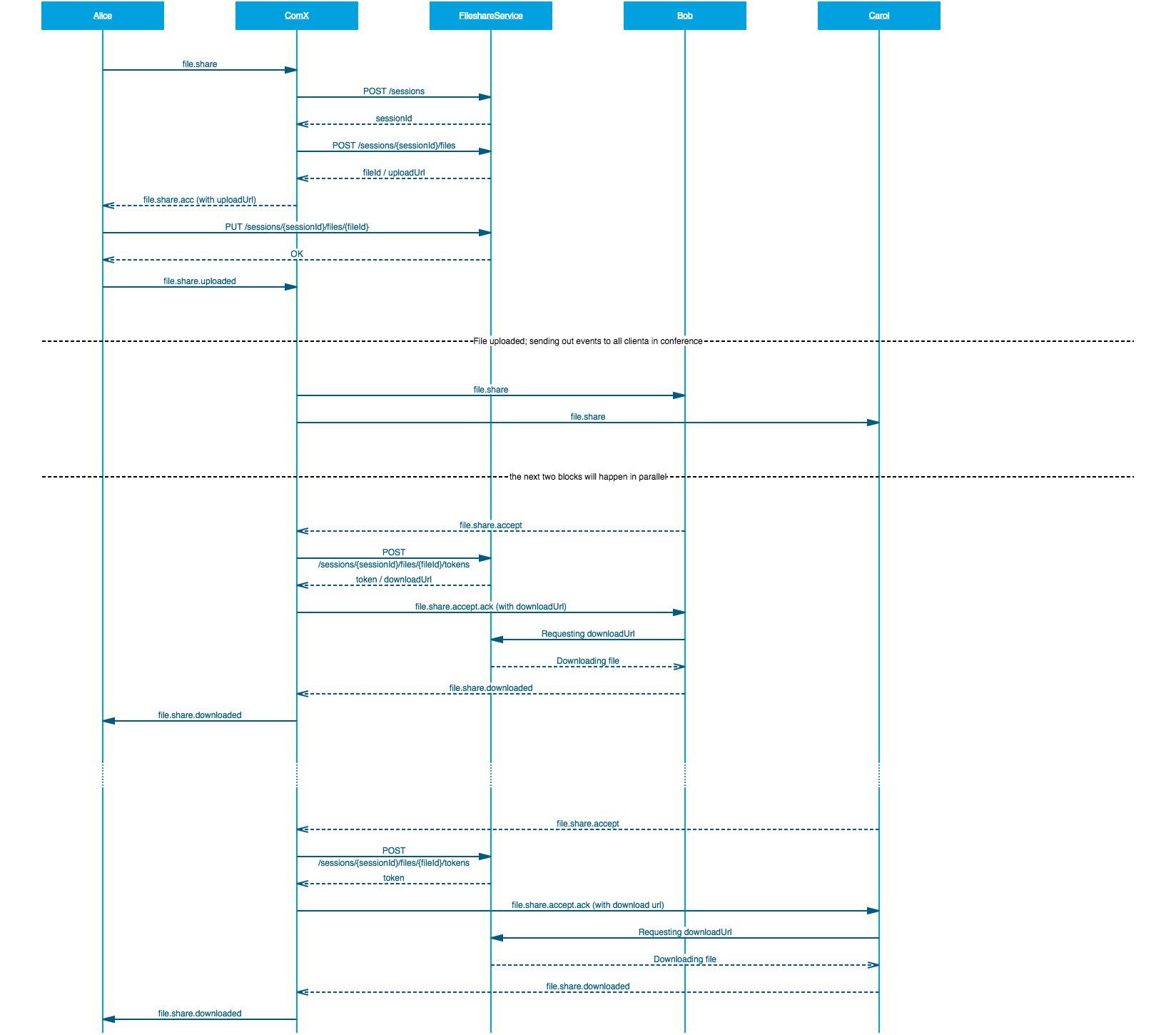

Figure 98. Sequence Detailed

API of Filesharing Service

HTTP Authentication

Type: Basic Auth
      username/password

Upload and Download with Simple Identification

The following HTTP methods can be used to perform file upload and download:

POST /uploads                                               // Simple upload

GET  /uploads/{fileId}                                      // Simple download

Upload and Download with Session Identification

The following HTTP methods can be used to perform file upload and download, and to manage sessions.

Session identification:

GET    /sessions/{sessionId}/files                            // Get all files of a session
GET    /sessions/{sessionId}/files/{fileId}/tokens/{tokenId}  // Download a single file

POST   /sessions                                              // Create a new session
POST   /sessions/{sessionId}/files                            // Create a new file entry
POST   /sessions/{sessionId}/files/{fileId}/tokens            // Generate a download token

PUT    /sessions/{sessionId}/files/{fileId}                   // Upload and store a file

Simple identification:

GET    /uploads/{fileId}                                      // Get uploaded file
POST   /uploads                                               // Upload file

Curl Example for Simple Upload Request

curl -i -X POST --insecure --form file=@/tmp/test.txt --user 'myuser@example.com:mypass' \
    https://$NGCP_IP:1446/rtc/fileshare/uploads

Upload Parameters

file

The parameter file defines the path to the desired file that should be uploaded.

This upload parameter is mandatory!

Curl example:

curl -i -X POST --insecure --form file=@/tmp/test.txt https://$NGCP_IP:1446/rtc/fileshare/uploads

user

The parameter user defines the user to authenticate with the fileshare service.

This upload parameter is mandatory!

curl -i -X POST --insecure --user 'foo:bar' https://$NGCP_IP:1446/rtc/fileshare/uploads

TTL

The parameter ttl defines the time-to-live (in seconds), that is how long the uploaded file will be available for download. The default values for this parameter are defined in the configuration file:

models: {
    session: {
        ttl: 86400 * 7
    },
    upload: {
        ttl: 3600
    }
}

Curl example:

curl -i -X POST --insecure --form file=@/tmp/test.txt --form ttl=3600 \
    --user 'foo:bar' https://$NGCP_IP:1446/rtc/fileshare/uploads

Response from curl when TTL is expired:

{
  "message": "upload expired"
}

Response in the log file when TTL is expired:

Error at /uploads/88e5905d-5d96-4750-ab3d-77a1ed26f569: message=upload expired, status=410

Number of Possible Downloads

There is a significant difference in the usage of the filesharing service between the approach within the RTC:engine and the simple upload/download one:

If you are using the simple upload and download approach, the generated download link you get for your file can be used as many times as required, as long as the TTL is not expired.
The approach with the Session ID, which will be used with the RTC:engine implementation, limits the download to one-time only. This means that the generated download link can be used only once. If you plan to share the URL with multiple persons, you have to generate one link for each recipient.
